Features
- Priority Zoning
- Not all zones are created equal. This circulator includes a priority switch which allows you to designate a primary zone. Circulators will defer to the primary zone's heating demands before responding to other zones.
- Versatility Through Compatibility
- Taco designed the priority zoning circulator to fit into any hydronic system regardless of the other equipment present. Zone valves, thermostats, and other circulators are all compatible with this pump, making it a perfect complement to any zoned system.
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Larger Residential Zones
- Indirect Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Undersized Zones
The priority zoning line of Taco circulators brings a PC board mounted switching relay package to the classic "00" series design. The result is a low-maintenance, easy-to-install, and intelligent addition to your hydronic system. Chances are you have enjoyed heating or domestic hot water thanks to a Taco 007-ZF at some point in your life. The 007-ZF's popularity is owed to its versatility and reliability. It provides efficient, single stage circulation across a range of applications. The universal flange-to-flange dimension of the 007-ZF makes it quick to install, even if you are replacing a different pump. This circulator includes both low voltage and high voltage terminal strips for easy electrical connections. With Taco, your hydronic circulation is in good hands.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
007-ZF5-9
General Information
Type
Circulator
Product Line
007 Series
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
UPC
687752534429
Performance
Maximum Head
10 Feet
Maximum Flow Rate
23 GPM
Maximum Fluid Temperature
240 F
Horsepower
1/25
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.71 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
4 3/4 Inches
Product Depth
6 3/8 Inches
Product Weight
8 Pounds
Shipping Weight
9 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(1)
Taco 007-ZF5-9 Reviews & Ratings
How-To Articles
How to Increase Efficiency and Comfort in Your Boiler
Low energy costs and a comfortable home are the hallmarks of an efficient, effe...
How to Pick the Perfect Hot Water Towel Warmer
Hydronic towel warmers are a great way to take advantage of your existing hot w...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

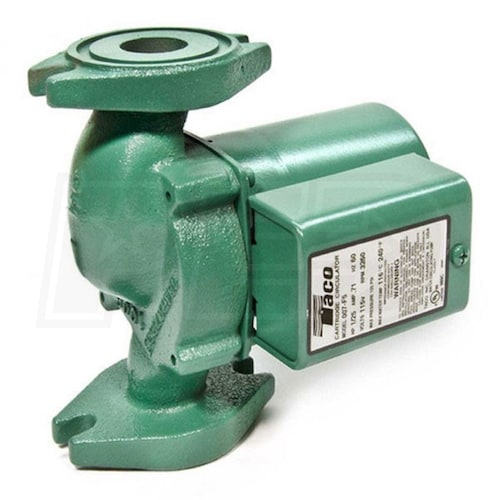

Taco 007 - 1/25 HP - Zoning Circulator Pump - Cast Iron - Flange
