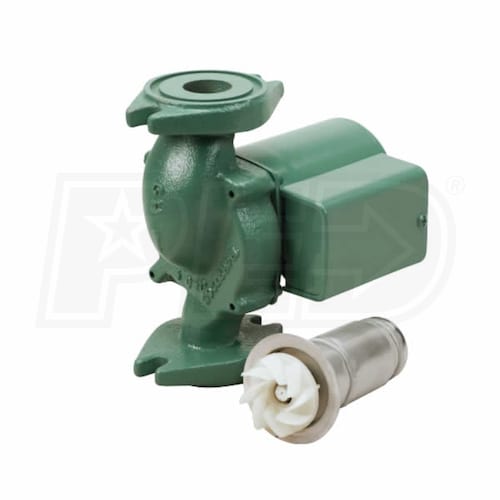

Taco 007 - 1/25 HP - Circulator Pump - Cast Iron - Flange

Model:

007-F5

Write A Review
$141.16
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$24 / Month
Suggested monthly payments with 6 month financing.
Taco 007 - 1/25 HP - Circulator Pump - Cast Iron - Flange
Taco 007 - 1/25 HP - Circulator Pump - Cast Iron - Flange
Model: 007-F5
$141.16
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. Chances are you have enjoyed heating or domestic hot water thanks to a Taco 007-F at some point in your life. This pump is used by boiler manufacturers all over the world as a component in their products. The 007-F's popularity is owed to its versatility and reliability. It provides efficient, single stage circulation across a range of applications. The universal flange-to-flange dimensions of the 007-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Hydronic Heating
  • Radiant Heating
  • Hydro-Air Fan Coils
  • Indirect Water Heaters
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

007-F5
specs product image PID-58870
Overview
Product Category
Boiler Accessories
UPC
687752187311
General Information
Product Line
007 Series
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
10 Feet
Maximum Flow Rate
23 GPM
Maximum Fluid Temperature
240 F
Horsepower
1/25
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.71 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
4 3/4 Inches
Product Depth
6 3/8 Inches
Product Weight
8 Pounds
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
