Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - 3/4" Sweat - Integral Flow Check

Model:

006-BC7-2PNP

Write A Review
$332.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$56 / Month
Suggested monthly payments with 6 month financing.
Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - 3/4
Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - 3/4" Sweat - Integral Flow Check
Model: 006-BC7-2PNP
$332.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For constant circulation systems, or those set to maintain fixed temperature through an Aquastat, Taco has designed a timer free Plumb N' Plug. Featuring the prewired convenience of traditional Plumb N' Plug circulators, this Plumb N' Plug is ready to provide instant hot to all corners of your building at all times of day. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Stop Wasting Water
  • Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design

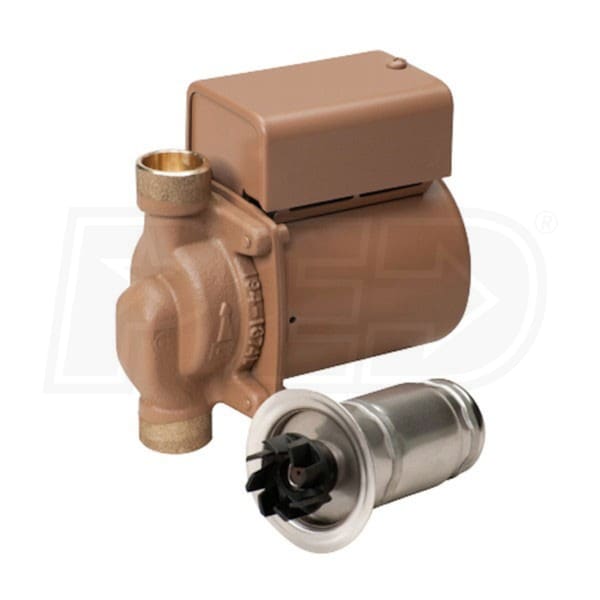

  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • Integral Flow Check
  • By including a removable integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Systems with 200' to 400' of 3/4" Supply/Return Piping
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

006-BC7-2PNP
specs product image PID-33165
Overview
Product Category
Water Heater - Pumps and Controls
UPC
687752316919
General Information
Product Line
Plumb N' Plug Series
Product Category
Water Heater - Pumps and Controls
Control Type
None
Connection Type
Sweat
Material
Bronze
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Maximum Fluid Temperature
220 F
Horsepower
1/40
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.57 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
8 1/8 Inches
Shipping Weight
6.5 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
