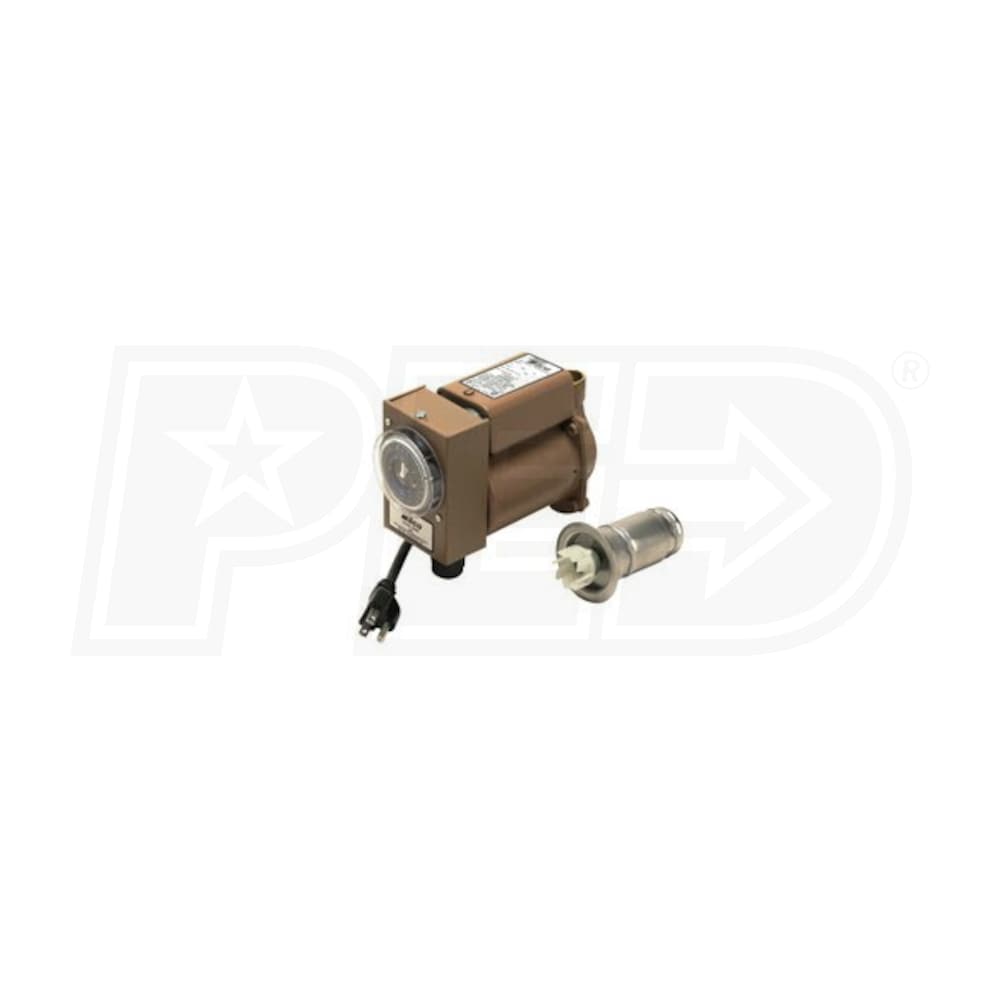

Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 1/2" Sweat



Write A Review
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships Tuesday, Apr 23rd
Shipping to60601
synchrony card logo
$83 / Month
Suggested monthly payments with 6 month financing.
Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 1/2
Taco 006 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 1/2" Sweat
Model: 006-BC4-PNP
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    The Plumb N' Plug line of Taco circulators provides an ingenious solution to the problem of waiting for hot water from fixtures. An included timer allows you to quickly and easily designate recirculation periods for instant hot water. The analog timer is prewired, which means installation is a breeze. Setting recirculation times is equally easy; simply flip the switches on the timer face corresponding to the times when you are most likely to need hot water and the Plumb N' Plug will begin recirculation at those times. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Stop Wasting Water
  • Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Systems with 200' to 400' of 3/4" Supply/Return Piping
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov


specs product image PID-33168
Product Category
Water Heater - Pumps and Controls
General Information
Product Line
Plumb N' Plug Series
Product Category
Water Heater - Pumps and Controls
Control Type
Connection Type
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Maximum Fluid Temperature
220 F
Maximum Operating Pressure
125 PSI
3250 RPM
Electrical Data
115 Volts
60 Hz
Current Draw
0.52 Amps
Connection Size
1/2 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
7 1/4 Inches
Shipping Weight
7 Pounds
UL Listed
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Warranty Information
Warranty Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
