Product Description
+−
Features
Features
- Stop Wasting Water
- Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.

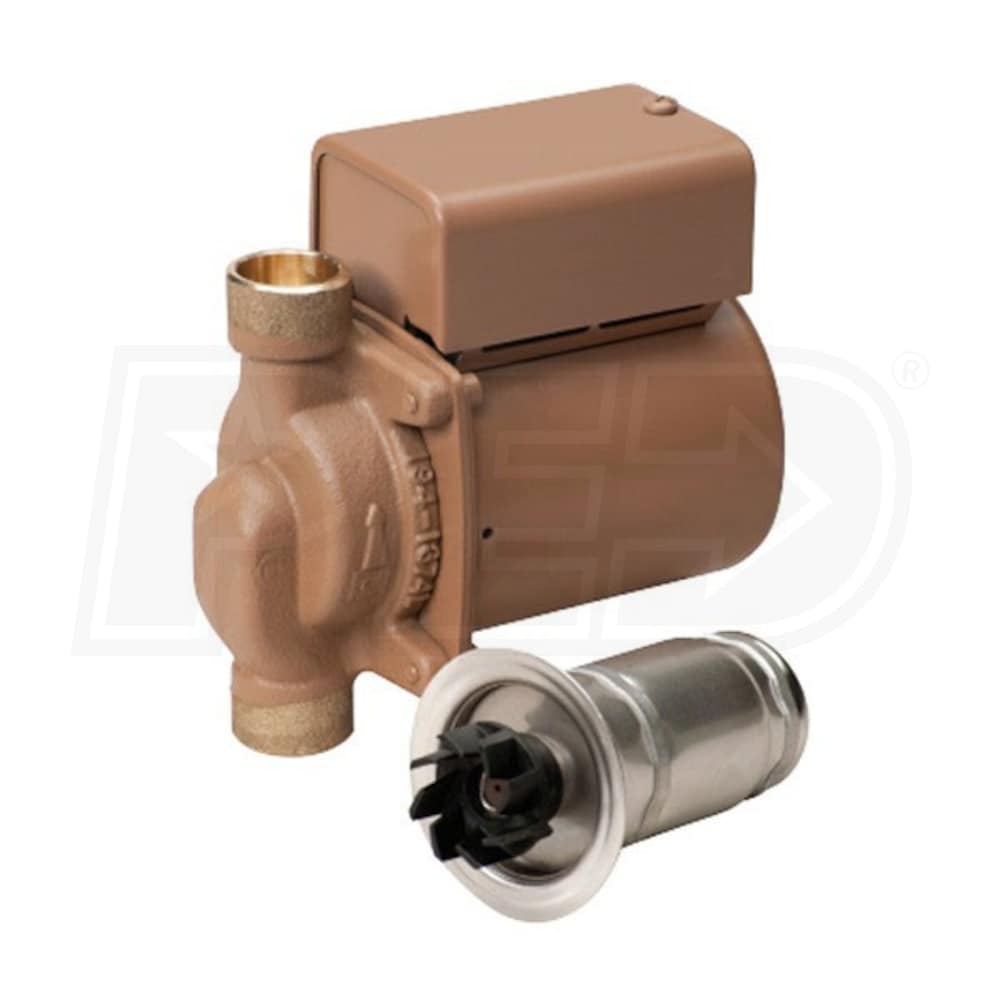

- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Systems with 200' to 400' of 3/4" Supply/Return Piping
For constant circulation systems, or those set to maintain fixed temperature through an Aquastat, Taco has designed a timer free Plumb N' Plug. Featuring the prewired convenience of traditional Plumb N' Plug circulators, this Plumb N' Plug is ready to provide instant hot to all corners of your building at all times of day. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
Specifications
General Information
Product Line
Plumb N' Plug Series
Control Type
None
Connection Type
Sweat
Material
Bronze
UPC
687752316896
Performance
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Maximum Operating Pressure
125 PSI
Maximum Fluid Temperature
220 F
Horsepower
1/40
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
1/2 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
7 1/4 Inches
Shipping Weight
6.5 Pounds
Certifications
UL Listed
Yes
NSF Listed
Yes
Warranty Information
Features
Features
- Stop Wasting Water
- Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Systems with 200' to 400' of 3/4" Supply/Return Piping
For constant circulation systems, or those set to maintain fixed temperature through an Aquastat, Taco has designed a timer free Plumb N' Plug. Featuring the prewired convenience of traditional Plumb N' Plug circulators, this Plumb N' Plug is ready to provide instant hot to all corners of your building at all times of day. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
Specifications
General Information
Product Line
Plumb N' Plug Series
Control Type
None
Connection Type
Sweat
Material
Bronze
UPC
687752316896
Performance
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Maximum Operating Pressure
125 PSI
Maximum Fluid Temperature
220 F
Horsepower
1/40
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
1/2 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
7 1/4 Inches
Shipping Weight
6.5 Pounds
Certifications
UL Listed
Yes
NSF Listed
Yes
Warranty Information
Product Specs
+−
Specifications
General Information
Product Line
Plumb N' Plug Series
Control Type
None
Connection Type
Sweat
Material
Bronze
UPC
687752316896
Performance
Maximum Head
9.5 Feet
Maximum Flow Rate
11.5 GPM
Maximum Operating Pressure
125 PSI
Maximum Fluid Temperature
220 F
Horsepower
1/40
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
1/2 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
7 1/4 Inches
Shipping Weight
6.5 Pounds
Certifications
UL Listed
Yes
NSF Listed
Yes
Warranty Information
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
I need to replace/repair a Model 006-BC4. Can I order a cartridge or do I need to order the whole pump?
Clay
from Idaho
October 27, 2015
Answer
One of the best aspects to the Taco 006 Series Cartridge Circulators is that the replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. For model 006-BC4, you'll use the Taco 005-020RP Replacement Catridge Assembly.
See Taco's Replacement Parts List for a full cross-reference of other models.
See Taco's Replacement Parts List for a full cross-reference of other models.
