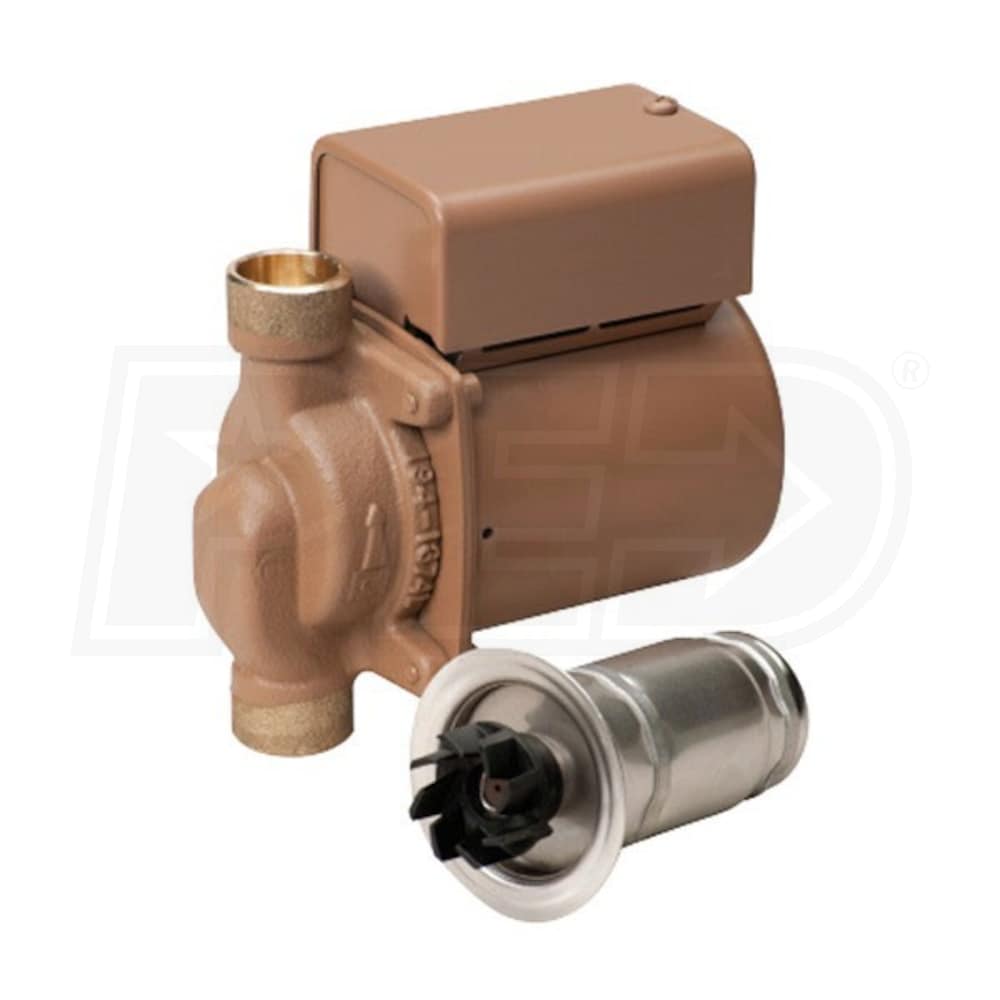

Taco 006 - 1/40 HP - Circulator Pump - Bronze - 3/4" Sweat
Model: 006-B4
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$197.51
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 006-B is an incredibly well-rounded circulator. It excels in both open loop and closed loop systems and is capable of handling a number of chilling or heating applications. The bronze construction of this circulator makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Hydronic Heating
  • Domestic Hot Water Recirculation
  • Hydro-Air Heating and Cooling
  • Heat Recovery Units
  • Water Source Heat Pumps
  • Drain Down Open Loop Solar Systems
  • Potable Water Systems
Specifications
General Information
Type
Circulator
Product Line
006 Series
Motor Type
Single Speed
Connection Type
Sweat
Material
Bronze
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752001594
Performance
Maximum Head
9 Feet
Maximum Flow Rate
10 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/40
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 3/8 Inches
Product Width
4 7/8 Inches
Product Depth
6 1/4 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 006-B is an incredibly well-rounded circulator. It excels in both open loop and closed loop systems and is capable of handling a number of chilling or heating applications. The bronze construction of this circulator makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Hydronic Heating
  • Domestic Hot Water Recirculation
  • Hydro-Air Heating and Cooling
  • Heat Recovery Units
  • Water Source Heat Pumps
  • Drain Down Open Loop Solar Systems
  • Potable Water Systems
Specifications
General Information
Type
Circulator
Product Line
006 Series
Motor Type
Single Speed
Connection Type
Sweat
Material
Bronze
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752001594
Performance
Maximum Head
9 Feet
Maximum Flow Rate
10 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/40
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 3/8 Inches
Product Width
4 7/8 Inches
Product Depth
6 1/4 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Type
Circulator
Product Line
006 Series
Motor Type
Single Speed
Connection Type
Sweat
Material
Bronze
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752001594
Performance
Maximum Head
9 Feet
Maximum Flow Rate
10 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/40
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.52 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 3/8 Inches
Product Width
4 7/8 Inches
Product Depth
6 1/4 Inches
Product Weight
7 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(2)
+
Taco 006-B4 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Can I buy the cartridge for Taco 006-B4?
Roy M.
from Oregon
November 09, 2019
Answer
Yes, it's part 006-036RP.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
I need to replace/repair a Model 006-BC4. Can I order a cartridge or do I need to order the whole pump?
Clay
from Idaho
October 27, 2015
Answer
One of the best aspects to the Taco 006 Series Cartridge Circulators is that the replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. For model 006-BC4, you'll use the Taco 005-020RP Replacement Catridge Assembly.

See Taco's Replacement Parts List for a full cross-reference of other models.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
