Features
- Maintenance Free
- Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
- Replaceable Cartridge Design
- All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
- High Capacity, High Efficiency
- In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
- Typical Product Applications
- Hydronic Heating & Cooling
- Radiant
- Indirect Water Heaters
- Hydro Fan Coils
- Domestic Water Recirculation
- Solar Thermal
- Chilled Water Cooling

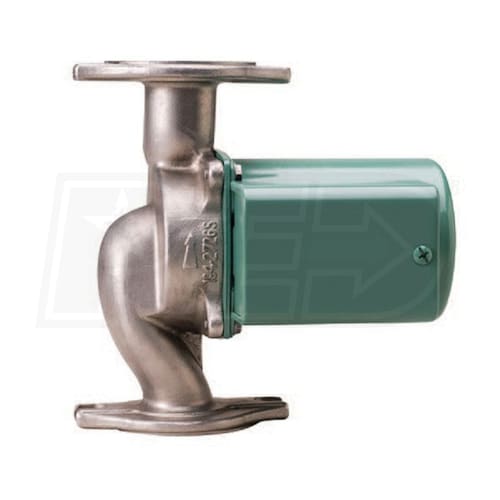

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. Built for high-efficiency circulation in both residential and light commercial applications, Taco's 005-SF is an incredibly versatile pump. The flow characteristics of the 005-SF are designed to suit a variety of applications. The universal flange-to-flange dimension of the 005-SF makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
005-SF2
Overview
Product Category
Boiler Accessories
UPC
687752592207
General Information
Type
Circulator
Product Line
005 Series
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Material
Stainless Steel
Flange Orientation
Standard
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
9 Feet
Maximum Flow Rate
19 GPM
Maximum Fluid Temperature
230 F
Horsepower
1/48
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.54 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
4 3/4 Inches
Product Depth
5 5/8 Inches
Product Weight
7 Pounds
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
NSF Certified
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
