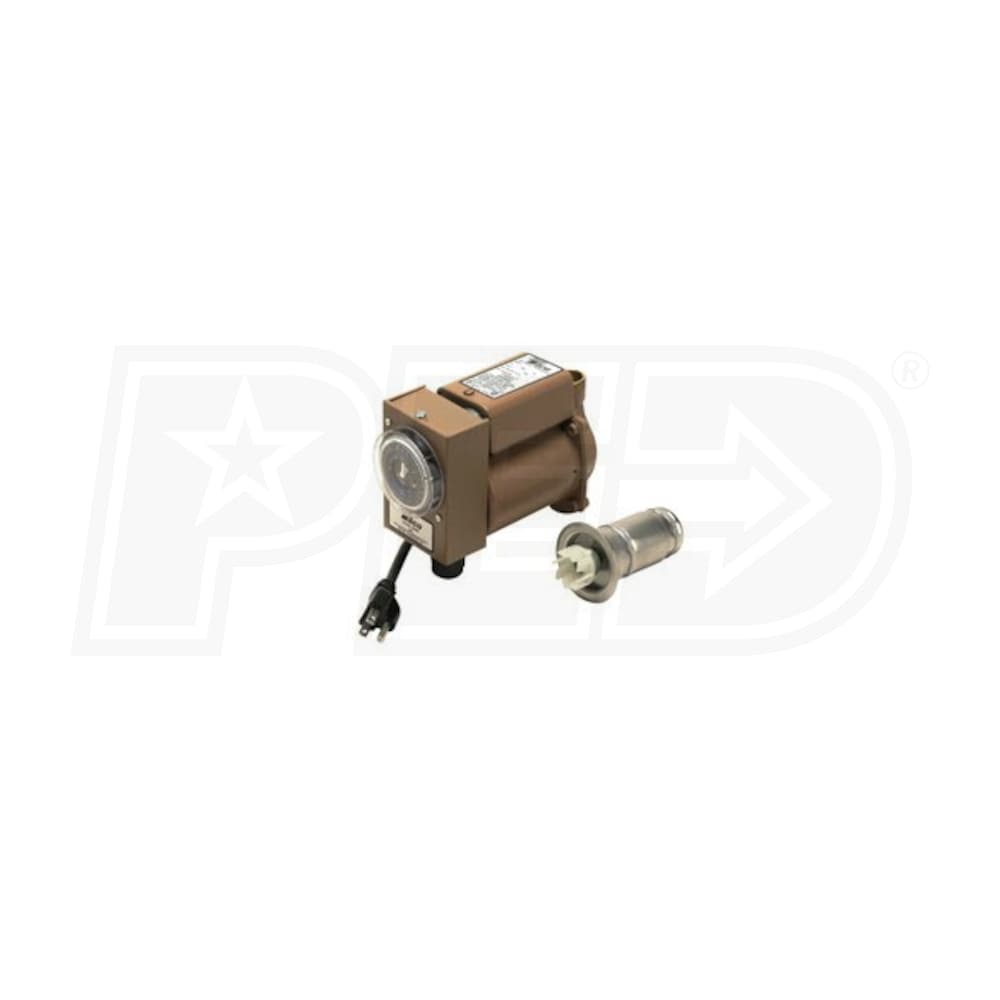

Taco 003 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 3/4" Sweat

Model:

003-B4-PNP

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 003 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 3/4
Taco 003 - Plumb N' Plug - 1/40 HP - Circulator Pump - Bronze - Analog Timer - 3/4" Sweat
Model: 003-B4-PNP
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Plumb N' Plug line of Taco circulators provides an ingenious solution to the problem of waiting for hot water from fixtures. An included timer allows you to quickly and easily designate recirculation periods for instant hot water. The analog timer is prewired, which means installation is a breeze. Setting recirculation times is equally easy; simply flip the switches on the timer face corresponding to the times when you are most likely to need hot water and the Plumb N' Plug will begin recirculation at those times. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Stop Wasting Water
  • Plumb N' Plug circulators can save up to 25 gallons of water a day. By recirculating hot water periodically, the Plumb N' Plug ensures that you won't have to run taps and faucets before enjoying hot water.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Recirculation Loops
  • Systems with up to 200' of 3/4" Supply/Return Piping
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

003-B4-PNP
specs product image PID-33082
General Information
Product Line
Plumb N' Plug Series
Control Type
Timer
Connection Type
Sweat
Material
Bronze
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752202441
Performance
Maximum Head
4.5 Feet
Maximum Flow Rate
7 GPM
Maximum Fluid Temperature
220 F
Horsepower
1/40
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.45 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
5 1/4 Inches
Product Width
3 15/16 Inches
Product Depth
7 1/4 Inches
Shipping Weight
7 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
