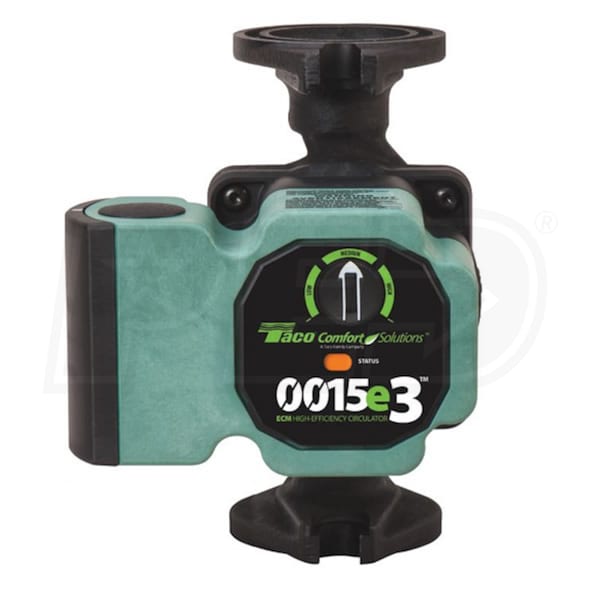

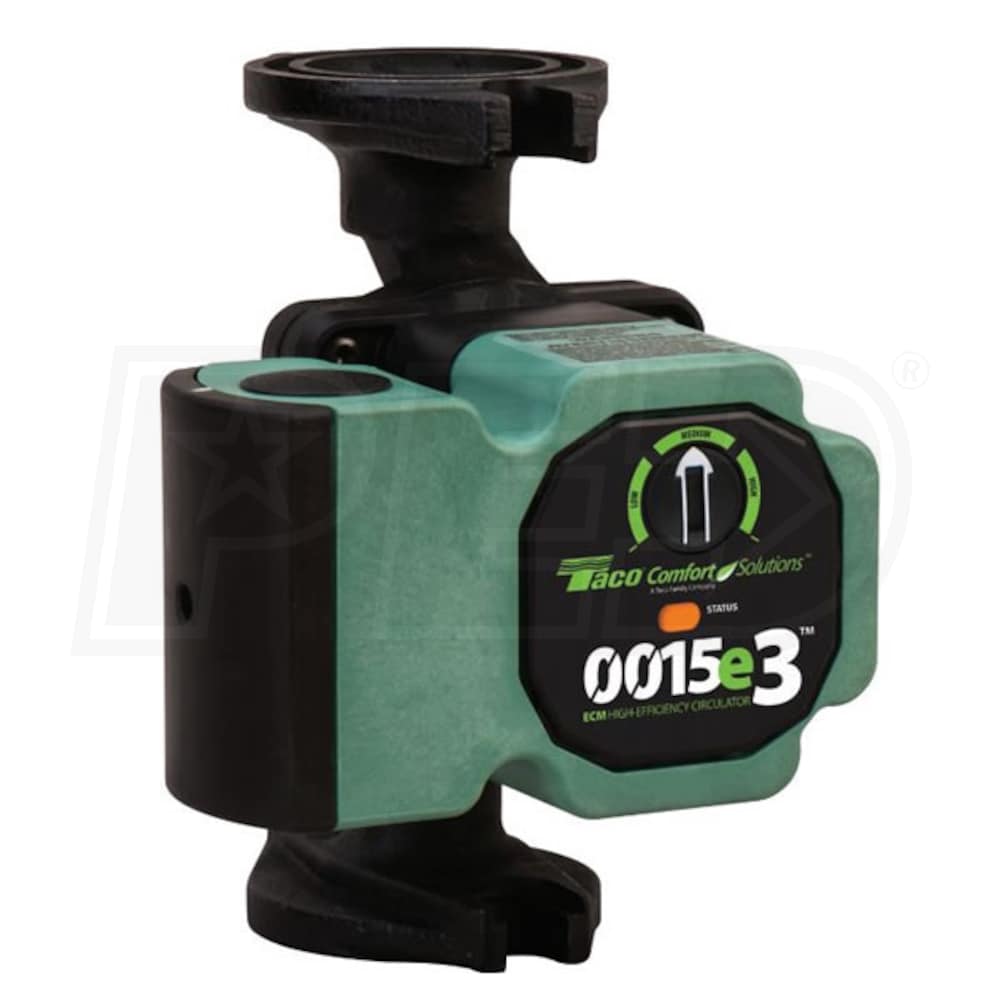

Taco 0015e3™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange

Model:

0015E3-F2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 0015e3™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange
Taco 0015e3™ - Variable Speed ECM Circulator Pump - Cast Iron - Standard Flange
Model: 0015E3-F2
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The Taco 0015e3™ is a variable speed, high-efficiency circulator with an ECM permanent magnet motor. Ideal for hydronic systems zoned with circulators or zone valves, the 0015e3™ provides efficient performance, ease of installation, and reliability. With the included BIO Barrier® and SureStart™ systems, the Taco 0015e3™ provides a long-lasting, effective comfort solution to any home.
  • Install it, forget it.™
  • Taco's 0015e3™ ECM circulator features three simple head pressure settings. Simply set the circulator to your requirements and enjoy efficient hydronic home comfort. Settings include low (5 feet head), medium (10 feet head), and high (18 feet head).
  • Reliable Operation
  • The 0015e3™ features Taco's BIO Barrier® that protects the pump from system contaminants, a SureStart™ setting that automatically unblocks and purges air in your system, and an integral flow check to prevent backflow.
  • High Efficiency
  • The Taco 0015e3™ includes an efficient ECM permanent magnet motor that uses up to 85% less electricity than most standard pumps. It utilizes dual electrical knockouts, 6" stranded wire leads, and no ground wire required for easy wiring.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

0015E3-F2
specs product image PID-80309
General Information
Type
Circulator
Product Line
00 Series
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Check Valve
1

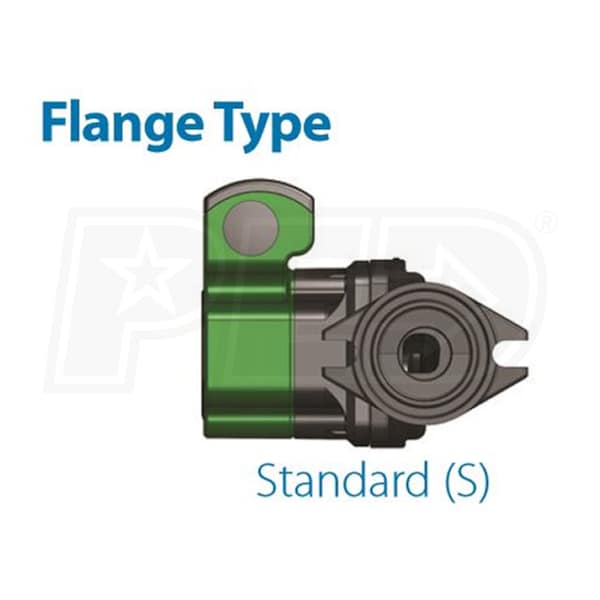

Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
190145186087
Performance
Maximum Head
18 Feet
Maximum Flow Rate
16 GPM
Maximum Fluid Temperature
230 F
Maximum Operating Pressure
125 PSI
RPM
4830 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
44 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.54 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
5 Inches
Product Depth
6 Inches
Product Weight
5.8 Pounds
Shipping Weight
6 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
