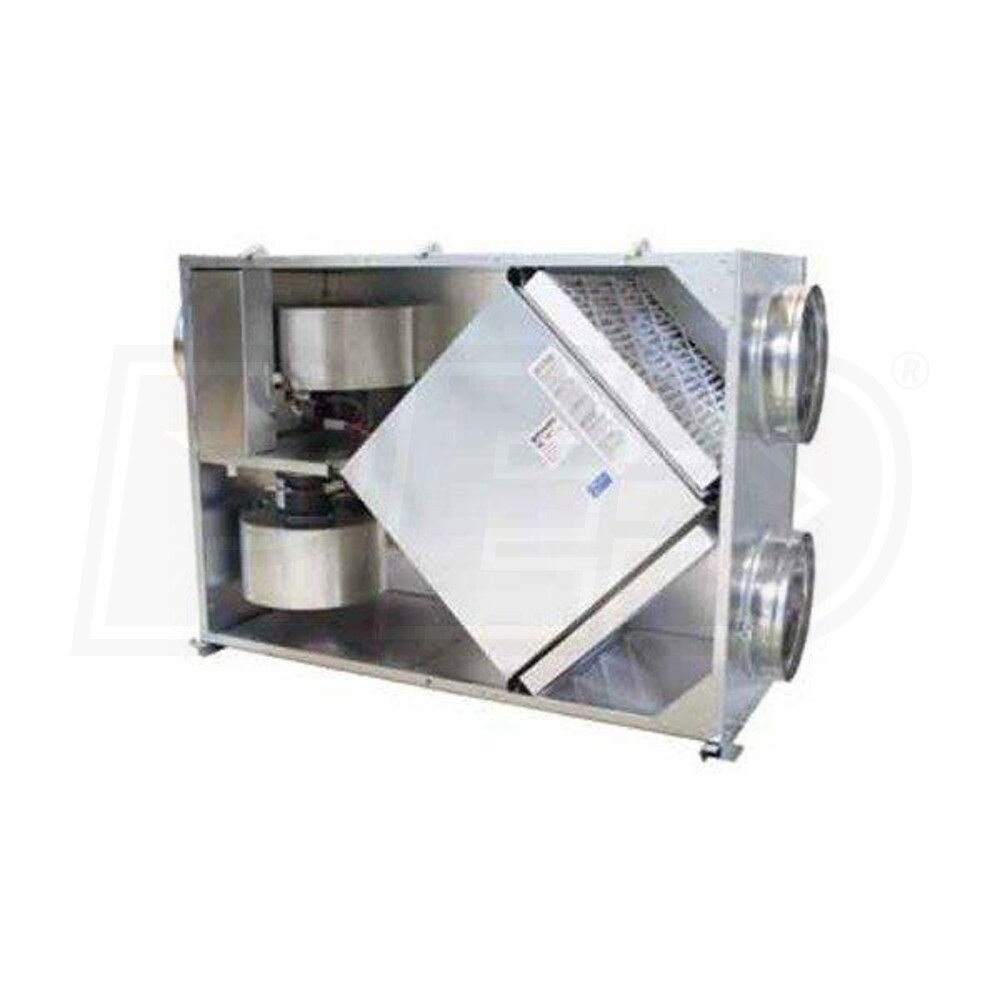

Soler & Palau TRC800-115 TR Series Energy Recovery Ventilator for All Climates, 115V - 970 CFM

Soler & Palau TRC800-115 TR Series Energy Recovery Ventilator for All Climates, 115V - 970 CFM
Our Price
Compare Prices
Shipping Info
Model: TRC800-115
$3,827.13
Ships in 4-7 Business Days
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons

Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Classified as "The Ultimate ERV", this series is designed and certified for use in all climates, from areas prone to hot, humid summers to areas with the most extreme winters. The Models TRC exhaust stale air, bring in fresh air and save energy year-round. S&P's TRCs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
  • Soler & Palau TRC800-115 Features
  • AHRI certified performance data for efficiency and cross leakage
  • UL tested flammability and smoke generation that meets NFPA 90A and 90B test standards for commercial applications
  • Easy installation and service
  • Easiest maintenance of any ERV
  • 2 MERV-8 filters
  • Non-Fused disconnect
  • Transformer/relay package allowing simple on/off control
  • Access doors for easy access to blowers, core and filters
  • Integral mounting flange and hanging bracket system
  • 2 Direct Drive, TEFC, Premium Efficient blower motors
  • Fully insulated case
  • Large cores for high efficiency
  • No condensate pan or drain required
Specifications
General Information
Type
ERV
Defrost Type ? ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
None
Port Location
Side
UPC
812482010589
Performance
Minimum Air Flow
480 CFM
Maximum Air Flow
970 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
40 Inches
Product Width
48 Inches
Product Depth
62 Inches
Product Weight
211 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Features
Features
    Classified as "The Ultimate ERV", this series is designed and certified for use in all climates, from areas prone to hot, humid summers to areas with the most extreme winters. The Models TRC exhaust stale air, bring in fresh air and save energy year-round. S&P's TRCs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
  • Soler & Palau TRC800-115 Features
  • AHRI certified performance data for efficiency and cross leakage
  • UL tested flammability and smoke generation that meets NFPA 90A and 90B test standards for commercial applications
  • Easy installation and service
  • Easiest maintenance of any ERV
  • 2 MERV-8 filters
  • Non-Fused disconnect
  • Transformer/relay package allowing simple on/off control
  • Access doors for easy access to blowers, core and filters
  • Integral mounting flange and hanging bracket system
  • 2 Direct Drive, TEFC, Premium Efficient blower motors
  • Fully insulated case
  • Large cores for high efficiency
  • No condensate pan or drain required
Specifications
General Information
Type
ERV
Defrost Type ? ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
None
Port Location
Side
UPC
812482010589
Performance
Minimum Air Flow
480 CFM
Maximum Air Flow
970 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
40 Inches
Product Width
48 Inches
Product Depth
62 Inches
Product Weight
211 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Product Specs
+
Specifications
General Information
Type
ERV
Defrost Type ? ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
None
Port Location
Side
UPC
812482010589
Performance
Minimum Air Flow
480 CFM
Maximum Air Flow
970 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
40 Inches
Product Width
48 Inches
Product Depth
62 Inches
Product Weight
211 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
