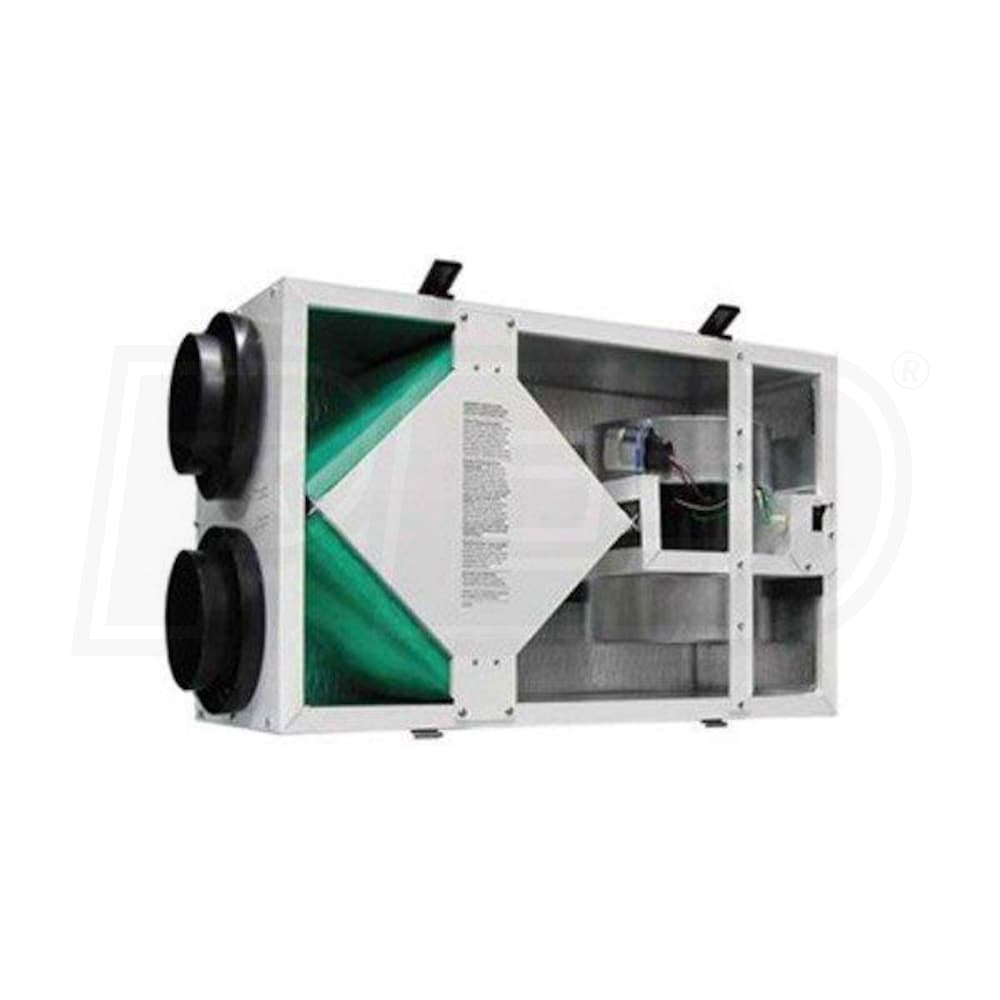

Soler & Palau TR300 TR Series Energy Recovery Ventilator for All Climates - 150-300 CFM
Share
+Share This Product
Product Description
Specs
1
Reviews
Product Q&A
How-To Articles
Manuals
Product Description
+−
Features
Features
S&P's TRs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
Soler & Palau TR300 Features
MERV-8 filters
Less than 1 watt stand-by power consumption
Transformer/relay package allowing simple on/off control
Plastic double collars for 6 or 8" direct duct connection
3' power cord
Integral mounting flange and hanging bracket system
Fully insulated case
Large cores for high efficiency
No condensate pan or drain required
Specifications
General Information
Type
ERV
Product Line
TR
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
None
Port Location
Side
UPC
812482012163
Performance
Sensible Recovery Efficiency
67 %
Minimum Air Flow
155 CFM
Maximum Air Flow
310 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Product Height
29 Inches
Product Width
21 1/2 Inches
Product Depth
32 Inches
Product Weight
72 Pounds
Shipping Weight
87 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Features
Features
S&P's TRs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
Soler & Palau TR300 Features
MERV-8 filters
Less than 1 watt stand-by power consumption
Transformer/relay package allowing simple on/off control
Plastic double collars for 6 or 8" direct duct connection
3' power cord
Integral mounting flange and hanging bracket system
Fully insulated case
Large cores for high efficiency
No condensate pan or drain required
Specifications
General Information
Type
ERV
Product Line
TR
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
None
Port Location
Side
UPC
812482012163
Performance
Sensible Recovery Efficiency
67 %
Minimum Air Flow
155 CFM
Maximum Air Flow
310 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Product Height
29 Inches
Product Width
21 1/2 Inches
Product Depth
32 Inches
Product Weight
72 Pounds
Shipping Weight
87 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
