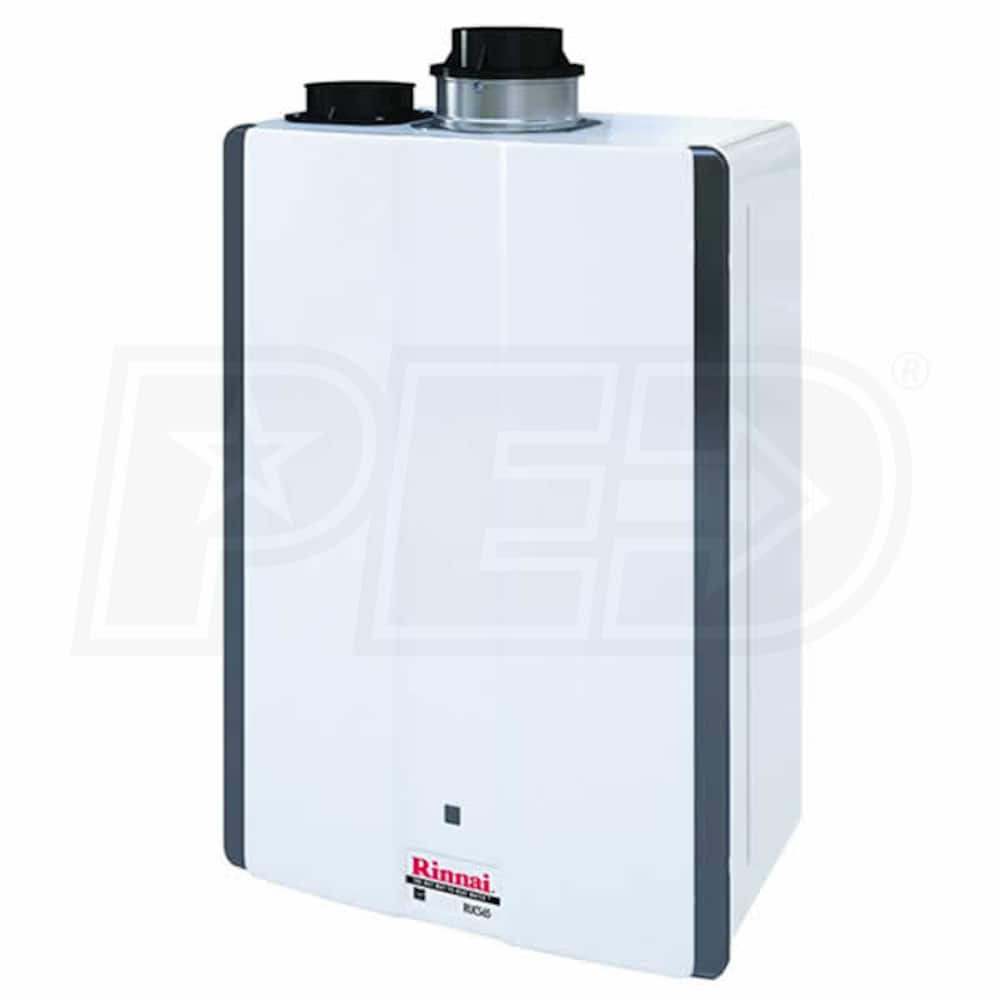

Rinnai Luxury Series - RUCS75 4.8 GPM at 60° F - 0.90 UEF - Gas Tankless Water Heater - Direct Vent

Model:

RUCS75IN

Write A Review
$1,135.90
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$190 / Month
Suggested monthly payments with 6 month financing.
Rinnai Luxury Series - RUCS75 4.8 GPM at 60° F - 0.90 UEF - Gas Tankless Water Heater - Direct Vent
Rinnai Luxury Series - RUCS75 4.8 GPM at 60° F - 0.90 UEF - Gas Tankless Water Heater - Direct Vent
Model: RUCS75IN
$1,135.90
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Fuel

Natural Gas

Location

Indoor

# of Showers

2.3

UEF

0.90



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Rinnai has been delivering nothing but the best for almost 100 years and that award-winning dedication can't help but be noticed in its SE Series. The RUCS75IN and all of the SE Series models offer Rinnai's incredibly efficient condensing design line of tankless heaters. Rinnai's SE Series models utilize two premium heat exchangers to provide optimal reliability and durability. With a 0.90 Uniform Energy Factor and a sleek, innovative design, the RUCS75IN is the ultimate option.
  • Compact Design Saves Space

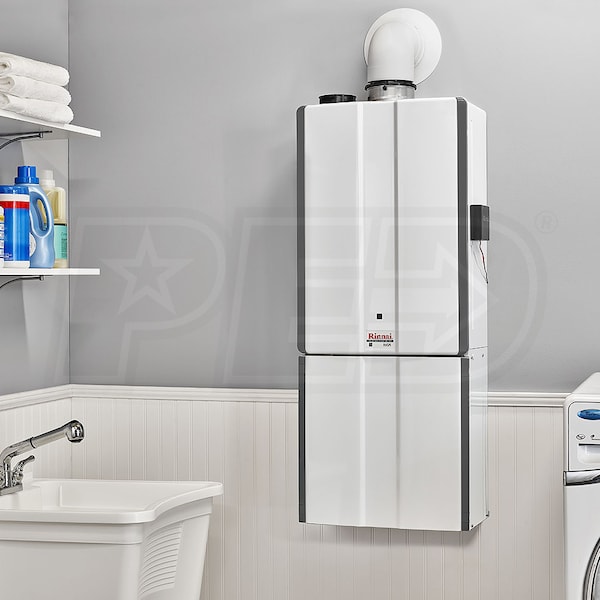

  • The RUCS75IN is designed to be able to be installed on any wall or in any compact space, including non-traditional places like an attic or crawlspace that hides your unit and frees up valuable space in your home.
  • Energy-Efficient Promise That Saves You Money
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves resources by only heating water when you need it, while an electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Continuous Water for Multiple Applications
  • You should be able to have two people shower at once or do the laundry while the dishwasher is running. Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Product Includes
  • (1) MC-91-2 temperature controller (Integrated into indoor models)
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RUCS75IN
specs product image PID-77047
Overview
Product Category
Water Heater - Tankless
UPC
766156008283
General Information
Type
Tankless Water Heater
Product Line
Luxury Series
Product Sub-line
Super High Efficiency (SE)
Product Category
Water Heater - Tankless
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category Learn More
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Mount Type
Wall
Installation Location
Indoor
Maximum Altitude
5400 Feet
Includes Pump
No
Gas Conversion Kit
Not Available
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
10300 BTU
Flow Rate at 40F Temperature Rise Learn More
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.5 GPM
Flow Rate at 45F Temperature Rise Learn More
Flow Rate at 45F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.5 GPM
Flow Rate at 50F Temperature Rise Learn More
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.9 GPM
Flow Rate at 60F Temperature Rise Learn More
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.8 GPM
Flow Rate at 70F Temperature Rise Learn More
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.2 GPM
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.90
Minimum Flow Rate
0.4 GPM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 5/48 Inches
Product Width
18 7/24 Inches
Product Depth
10 5/48 Inches
Product Weight
57.3 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years
