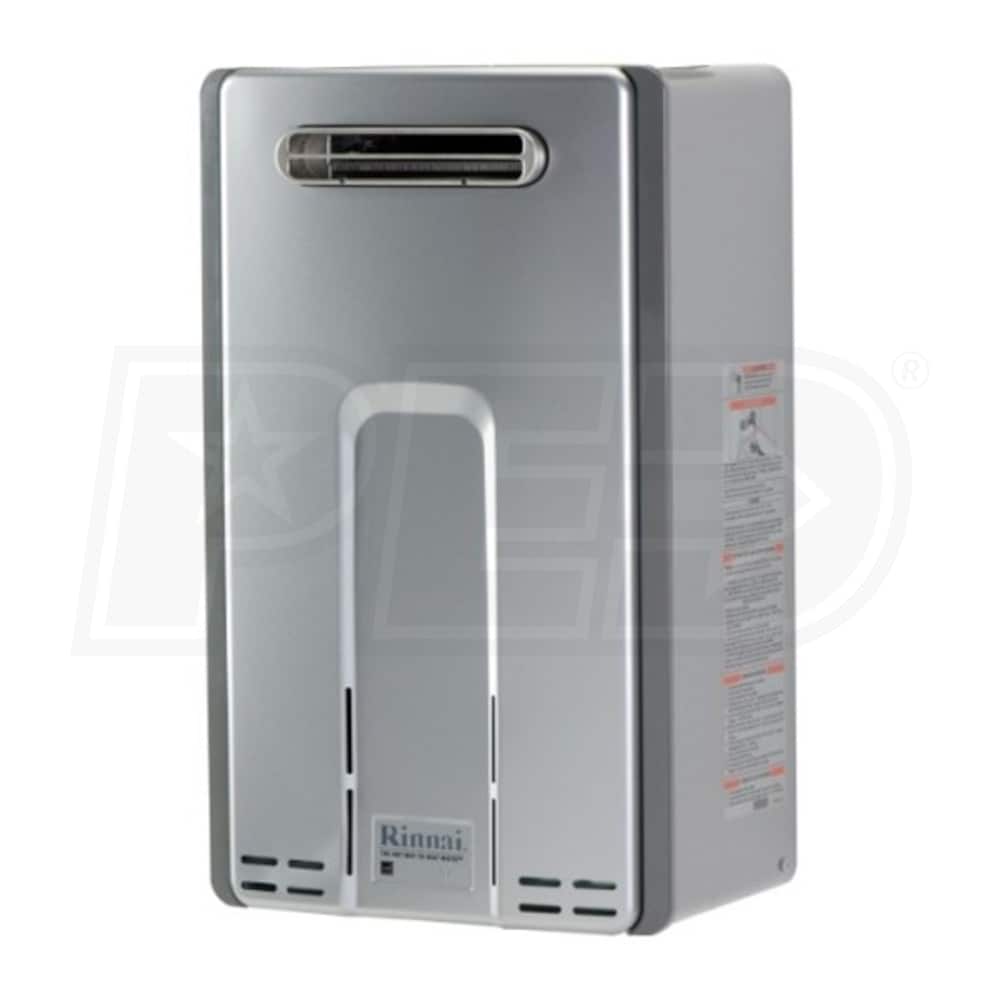

Rinnai RL75 - 5.0 GPM at 60° F Rise - 0.80 UEF - Gas Tankless Water Heater - Outdoor

Rinnai RL75 - 5.0 GPM at 60° F Rise - 0.80 UEF - Gas Tankless Water Heater - Outdoor
Our Price
Compare Prices
Shipping Info
Model: RL75EN
(Based on expert analysis, manufacturer ratings and customer reviews)
4.6 out of 54.6 out of 54.6 out of 54.6 out of 54.6 out of 5
Number of Reviews (8)
Write A Review
$1,127.25
In-Stock
Ships Thursday, Dec 13th
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Installation Location

In-Stock
Ships Thursday, Dec 13th
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 8
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Fuel
Natural Gas
Location
Outdoor
# of Showers
2.4
UEF
Fuel
Natural Gas
Location
Outdoor
#of Showers
2.4
Uniform Energy Factor
0.80
Energy Star Rated
Yes
Features
Features
    Rinnai has been delivering nothing but the best for almost 100 years and that award-winning dedication can't help but be noticed in their HE+ Series. The RL75eN and all of the HE+ Series models offer the highest output of Rinnai's non-condensing line of tankless heaters. Rinnai's HE+ Series models utilize breaking edge recirculation technology to provide optimal operation with their dedicated recirculation line. With a 0.80 Uniform Energy Factor and a sleek, innovative design, the RL75eN is a superior option that is easily maintained thanks to included isolation valves.
  • Compact design saves space.
  • The RL75eN is designed to be able to be installed inconspicuously on any exterior wall or compact space, hiding your unit and freeing up valuable space in your home. Rinnai tankless water heaters are perfect for any home.
  • Energy-efficient promise that saves you money.
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Product Includes
  • (1) Cold Isolation Valve (Color coded: Blue)
  • (1) Hot Isolation Valve (Color coded: Red)
  • (1) Pressure Relief Valve
  • (1) MC-91-2 temperature controller
Specifications
General Information
Type
Tankless Water Heater
Product Line
High Efficiency Plus (HE+)
Product Sub-line
RL
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Non-Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Outdoor (No Venting)
Storage Type
Tankless
Mount Type
Wall
Installation Location
Outdoor
Gas Conversion Kit
Not Available
UPC
766156006357
Performance
Flow Rate at 40F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.4 GPM
Flow Rate at 45F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6 GPM
Flow Rate at 50F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.0 GPM
Flow Rate at 60F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.0 GPM
Flow Rate at 70F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.3 GPM
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
180000 BTU
Minimum Input Capacity
10300 BTU
Uniform Energy Factor ? Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.80
Minimum Flow Rate
0.4 GPM
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
22 23/24 Inches
Product Width
14 1/24 Inches
Product Depth
9 13/48 Inches
Product Weight
43.6 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
NSF Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Fuel
Natural Gas
Location
Outdoor
# of Showers
2.4
UEF
Fuel
Natural Gas
Location
Outdoor
#of Showers
2.4
Uniform Energy Factor
0.80
Energy Star Rated
Yes
Features
Features
    Rinnai has been delivering nothing but the best for almost 100 years and that award-winning dedication can't help but be noticed in their HE+ Series. The RL75eN and all of the HE+ Series models offer the highest output of Rinnai's non-condensing line of tankless heaters. Rinnai's HE+ Series models utilize breaking edge recirculation technology to provide optimal operation with their dedicated recirculation line. With a 0.80 Uniform Energy Factor and a sleek, innovative design, the RL75eN is a superior option that is easily maintained thanks to included isolation valves.
  • Compact design saves space.
  • The RL75eN is designed to be able to be installed inconspicuously on any exterior wall or compact space, hiding your unit and freeing up valuable space in your home. Rinnai tankless water heaters are perfect for any home.
  • Energy-efficient promise that saves you money.
  • Tankless water heaters avoid the need to keep a large amount of reserve water heated at all times. This saves energy by only heating water when you need it, while an entirely electric ignition avoids the constantly wasted energy of a standing pilot light.
  • Continuous Water for Multiple Applications
  • Rinnai tankless water heaters provide an endless supply of hot water that remains uninterrupted, even when you're the last one in line for the shower.
  • Product Includes
  • (1) Cold Isolation Valve (Color coded: Blue)
  • (1) Hot Isolation Valve (Color coded: Red)
  • (1) Pressure Relief Valve
  • (1) MC-91-2 temperature controller
Specifications
General Information
Type
Tankless Water Heater
Product Line
High Efficiency Plus (HE+)
Product Sub-line
RL
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Non-Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Outdoor (No Venting)
Storage Type
Tankless
Mount Type
Wall
Installation Location
Outdoor
Gas Conversion Kit
Not Available
UPC
766156006357
Performance
Flow Rate at 40F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.4 GPM
Flow Rate at 45F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6 GPM
Flow Rate at 50F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.0 GPM
Flow Rate at 60F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.0 GPM
Flow Rate at 70F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.3 GPM
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
180000 BTU
Minimum Input Capacity
10300 BTU
Uniform Energy Factor ? Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.80
Minimum Flow Rate
0.4 GPM
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
22 23/24 Inches
Product Width
14 1/24 Inches
Product Depth
9 13/48 Inches
Product Weight
43.6 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
NSF Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Product Specs
+
Specifications
General Information
Type
Tankless Water Heater
Product Line
High Efficiency Plus (HE+)
Product Sub-line
RL
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Non-Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Outdoor (No Venting)
Storage Type
Tankless
Mount Type
Wall
Installation Location
Outdoor
Gas Conversion Kit
Not Available
UPC
766156006357
Performance
Flow Rate at 40F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
7.4 GPM
Flow Rate at 45F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6 GPM
Flow Rate at 50F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.0 GPM
Flow Rate at 60F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.0 GPM
Flow Rate at 70F Temperature Rise ? Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.3 GPM
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
180000 BTU
Minimum Input Capacity
10300 BTU
Uniform Energy Factor ? Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.80
Minimum Flow Rate
0.4 GPM
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
22 23/24 Inches
Product Width
14 1/24 Inches
Product Depth
9 13/48 Inches
Product Weight
43.6 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
NSF Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Reviews
(8)
+
Rinnai RL75EN Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Does the pressure relief valve come with the unit?
Steve
from North Carolina
September 05, 2017
Answer
Hi Steve. Yes, the pressure relief valve does come with the unit.
