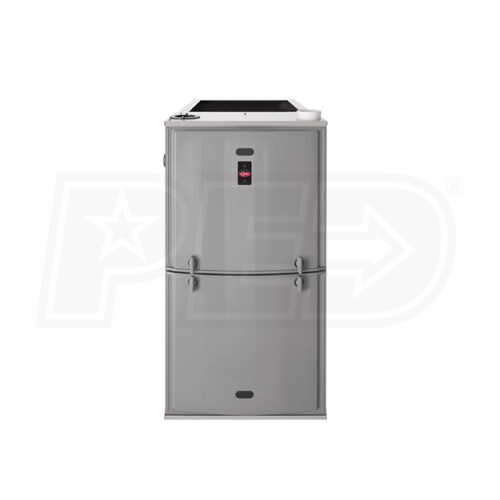

WeatherKing By Rheem W801T - 75k BTU - Gas Furnace - 80% AFUE

Model:

W801TA075421MSA

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
WeatherKing By Rheem W801T - 75k BTU - Gas Furnace - 80% AFUE
WeatherKing By Rheem W801T - 75k BTU - Gas Furnace - 80% AFUE
Model: W801TA075421MSA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Reliability, functionality, efficiency - these are values that Rheem holds to the highest standards in the WeatherKing line of HVAC systems. The WeatherKing W801T includes an aluminized steel heat exchanger that provides maximum corrosion resistance and thermal fatigue durability. The heat exchanger can also be removed for improved serviceability. The W801T features a direct spark ignition system, which has proven to be one of the most dependable ignition systems on the market today. This easy-to-install furnace is built with a tight seal to provide years of quiet operation, while its efficient ECM motor cuts down on energy cost.
  • Direct Spark Ignition
  • The WeatherKing W801T features a direct spark ignition system, the same used on gas ovens and stoves. This means the furnace will only fire when it is needed, unlike a less efficient constant pilot light.
  • Quiet Operation
  • The W801T is built with a tight door seal to minimize noise. Rubber grommets on the motor mounts and a twist lock wire harness in the blower shelf cuts down on unwanted vibration noise.
  • Aluminized Steel Heat Exchanger
  • The aluminized steel heat exchanger in the W801T provides incredibly efficient heat transfer as well as maximum corrosion resistance and thermal fatigue reliability.
  • LED Display
  • An industry first, WeatherKing furnaces feature a 7-segment LED display, making service calls quick and easy.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

W801TA075421MSA
specs product image PID-94038
General Information
Type
Gas Furnace
Product Line
WeatherKing
Product Sub-line
W801T
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Chimney Vent
Modulating/Staging Learn More
Single Stage
Blower Motor
PSC Multi-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
UPC
662021376122
Performance
AFUE Learn More
80 %
Heating BTU
75000
High Fire Input
75000 BTU
High Fire Output
61000 BTU
Maximum Air Flow
1785 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
21 Inches
Product Height
34 Inches
Product Width
21 Inches
Product Depth
29 Inches
Product Weight
125 Pounds
Shipping Weight
125 Pounds
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
10 Years
