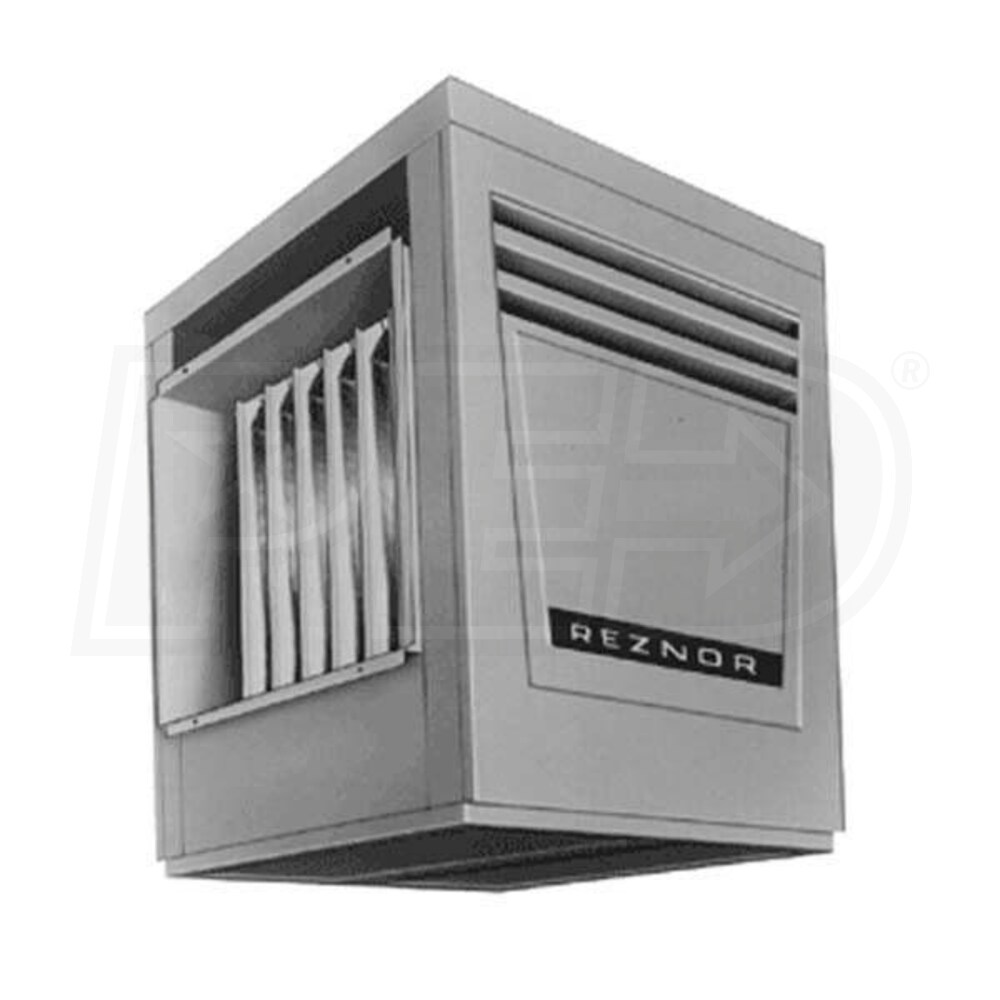

Reznor X-225 Gas Fired Duct Furnace - Gravity Vented - LP - Aluminized Heat Exchanger - 225,000 BTU
Reznor X-225 Gas Fired Duct Furnace - Gravity Vented - LP - Aluminized Heat Exchanger - 225,000 BTU
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reznor X-225-AA2 Features
- Aluminized steel heat exchanger
- Aluminized steel burners with stainless steel insert
- 24 volt control voltage transformer
- High limit safety cutout
- Single stage combination gas valve
- Manual match-lit pilot
- Blocked vent shut-off system
Reznor X-225-AA2 Gas Fired Duct Furnace is an indoor gas fired duct furnace which provides a heating output capacity of 180000 with an 80% thermal efficiency. This X model has a high fire input of 225000. X model furnaces are the heating component of heating or heating/cooling systems and require a separate blower system for air delivery. X-225-AA2 is approved for a 50-90 F temperature rise range. Units include a blocked vent shut-off system.
Specifications
General Information
Product Line
X
Heat Exchanger Material
Aluminized Steel
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Stages
Single Stage
Speed Settings
Multi-Speed
Performance
Heating Capacity
180000 BTU
High Fire Input
225,000 BTU
Efficiency
80 %
Minimum Air Flow
1840 CFM
Maximum Air Flow
3315 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
8 Inches
Gas Connection Size
0.5 Inches
Product Height
35.25 Inches
Product Width
33 Inches
Product Depth
28 Inches
Product Weight
231 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Features
Features
- Reznor X-225-AA2 Features
- Aluminized steel heat exchanger
- Aluminized steel burners with stainless steel insert
- 24 volt control voltage transformer
- High limit safety cutout
- Single stage combination gas valve
- Manual match-lit pilot
- Blocked vent shut-off system
Reznor X-225-AA2 Gas Fired Duct Furnace is an indoor gas fired duct furnace which provides a heating output capacity of 180000 with an 80% thermal efficiency. This X model has a high fire input of 225000. X model furnaces are the heating component of heating or heating/cooling systems and require a separate blower system for air delivery. X-225-AA2 is approved for a 50-90 F temperature rise range. Units include a blocked vent shut-off system.
