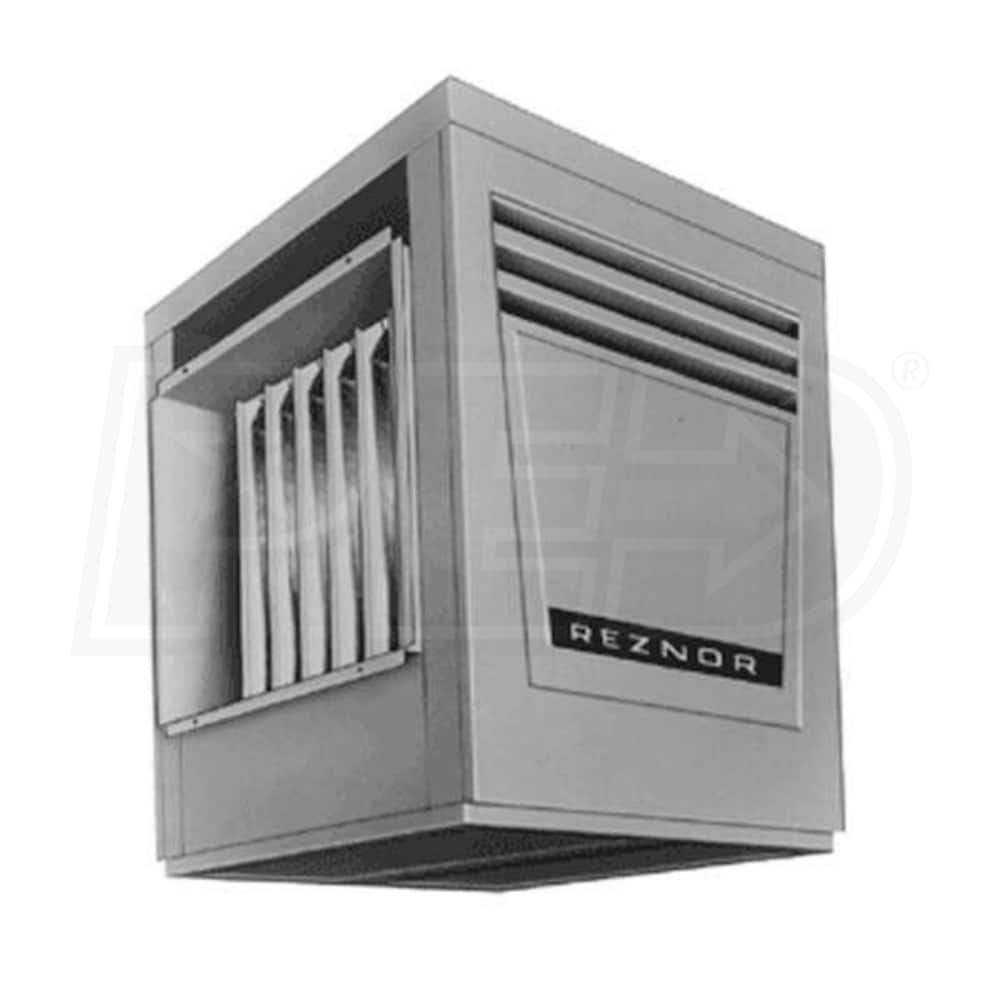

Reznor X-175 Gas Fired Duct Furnace - Gravity Vented - LP - Aluminized Heat Exchanger - 175,000 BTU
Model: X-175-AA2
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$2,392.29
Was $2,518.20
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Input Capacity (BTU/h)
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Heat Exchanger Material
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor X-175-AA2 Gas Fired Duct Furnace is an indoor gas fired duct furnace which provides a heating output capacity of 140000 with an 80% thermal efficiency. This X model has a high fire input of 175000. X model furnaces are the heating component of heating or heating/cooling systems and require a separate blower system for air delivery. X-175-AA2 is approved for a 50-90 F temperature rise range. Units include a blocked vent shut-off system.
  • Reznor X-175-AA2 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Single stage combination gas valve
  • Manual match-lit pilot
  • Blocked vent shut-off system
Specifications
General Information
Product Line
X
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Stages
Single Stage
Blower Motor
Multi-Speed
Performance
Heating Capacity
140000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Maximum Output Capacity
140000 BTU
High Fire Input
175,000 BTU
Efficiency
80 %
Maximum Air Flow
2580 CFM
Minimum Air Flow
1430 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
8 Inches
Gas Connection Size
1/2 Inch
Product Height
32 1/4 Inches
Product Width
27 1/2 Inches
Product Depth
28 Inches
Product Weight
186 Pounds
Shipping Weight
186 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Reznor X-175-AA2 Gas Fired Duct Furnace is an indoor gas fired duct furnace which provides a heating output capacity of 140000 with an 80% thermal efficiency. This X model has a high fire input of 175000. X model furnaces are the heating component of heating or heating/cooling systems and require a separate blower system for air delivery. X-175-AA2 is approved for a 50-90 F temperature rise range. Units include a blocked vent shut-off system.
  • Reznor X-175-AA2 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Single stage combination gas valve
  • Manual match-lit pilot
  • Blocked vent shut-off system
