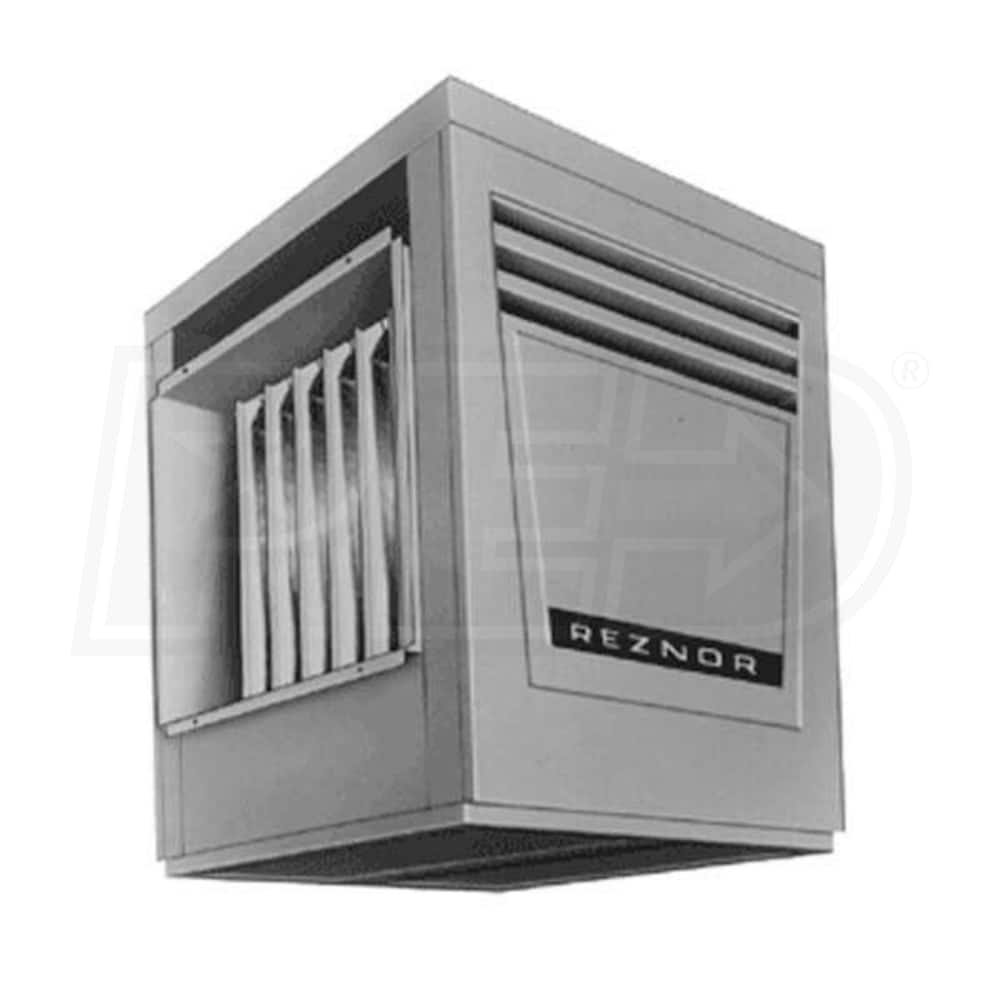

Reznor 100,000 BTU Gas Fired Duct Furnace Propane

Model:

X-100-AA2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Reznor 100,000 BTU Gas Fired Duct Furnace Propane
Reznor 100,000 BTU Gas Fired Duct Furnace Propane
Model: X-100-AA2
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Overview for Reznor X-100-AA2

    Reznor X-100-AA2 100,000 BTU Gas Fired Duct Furnace Propane.
  • Reznor X-100-AA2 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Single stage combination gas valve
  • Intermittent spark pilot
  • Blocked vent shut-off system
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

X-100-AA2
specs product image PID-47439
Overview
Product Category
Unit Heater
Additional Model Numbers

X-100-AA2, X-100-AA2

General Information
Product Line
X
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Stages
Single Stage
Blower Motor Type
Multi-Speed
Mount Type
Suspended
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Maximum Output Capacity
80000 BTU
High Fire Input
100,000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
1475 CFM
Minimum Air Flow
815 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Product Height
32 1/4 Inches
Product Width
19 1/4 Inches
Product Depth
28 Inches
Product Weight
150 Pounds
Shipping Weight
150 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
