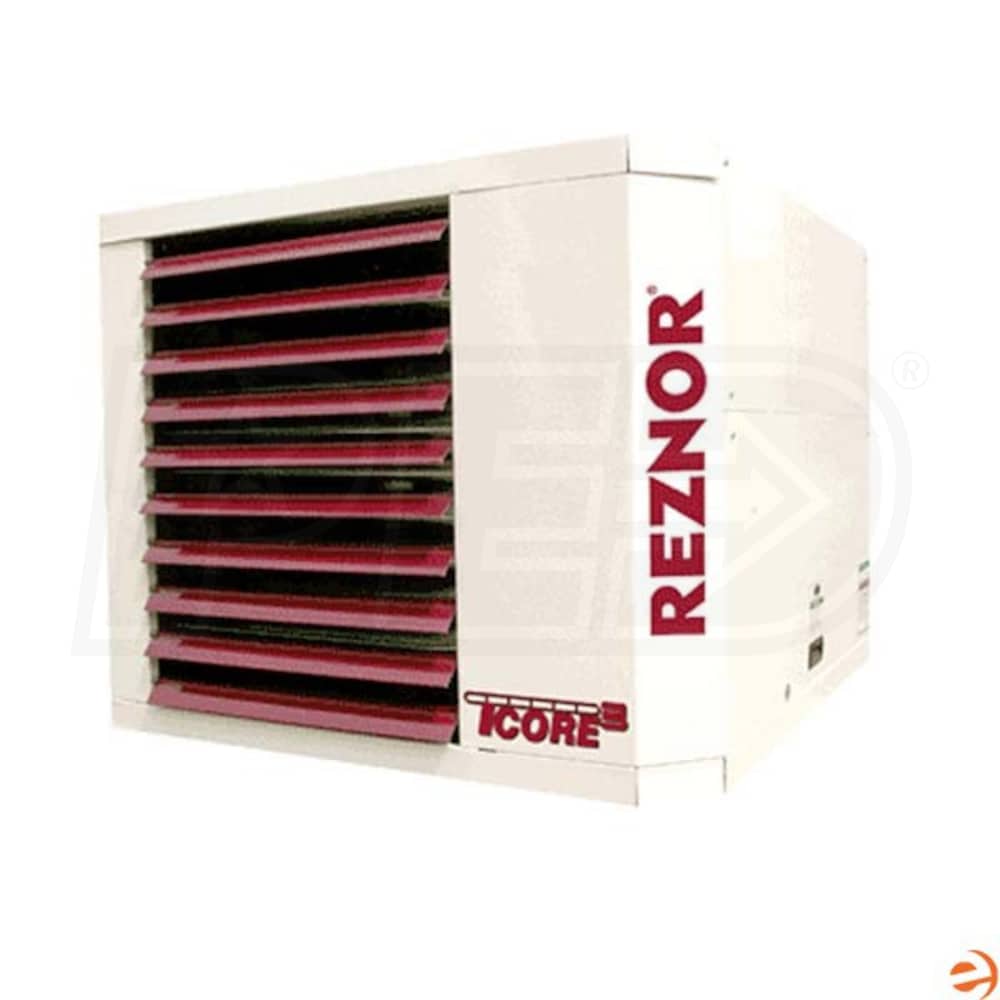

Reznor UEAS-180 High Efficiency Gas Fired Unit Heater - Separated Combustion - Roof Vent - 175,000 BTU

Model:

UEAS-180-AC2-CC2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Reznor 175,000 BTU Roof Vent Gas Fired Unit Heater
Model:
UEAS-180-CC2
$3,427.95
Product Discontinued
Reznor UEAS-180 High Efficiency Gas Fired Unit Heater - Separated Combustion - Roof Vent - 175,000 BTU
Reznor UEAS-180 High Efficiency Gas Fired Unit Heater - Separated Combustion - Roof Vent - 175,000 BTU
Model: UEAS-180-AC2-CC2
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    Product Note: This product is FINAL SALE only. Final sale products may not be returned for exchange, credit, or refunds.

    Reznor UEAS-180 High Efficiency Gas Fired Unit Heater, Separated Combustion, 409 Stainless Steel Heat Exchanger, Roof Vent - 175,000 BTU

    Reznor UEAS-180-AC2-CC2 High Efficiency Gas Fired Unit Heater is a 115 volt, high efficiency gas fired unit heater designed to provide efficient heating. It uses separated combustion venting to provide a 175000 BTU/hr. output with a 91% thermal efficiency. Vibration isolated venter motors reduce operating noise. UEAS-180-AC2-CC2 provides a 50-60 F rise range. UEAS models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UEAS-180-AC2-CC2 is designed to be suspended from 4 suspension points. UEAS-180-AC2-CC2 provides improved efficiency and easier installation over previous Reznor models.

    Reznor UEAS-180-AC2-CC2 High Efficiency Gas Fired Unit Heater Features:
    • Transformer for 24-volt controls
    • Multi-try direct spark ignition with 100% lockout
    • PSC venter motor
    • Vibration isolated fan motors
    • 4-pt suspension
    • External gas connection
    Reznor UEAS-180-AC2-CC2 High Efficiency Gas Fired Unit Heater Warranty:
    • 1 year parts warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

UEAS-180-AC2-CC2
specs product image PID-47408
General Information
Product Line
UEAS
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
159000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Efficiency
91 %
Maximum Air Flow
2458 CFM
Minimum Air Flow
2458 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Flue Connection Size
4 Inches
Product Height
20 1/8 Inches
Product Width
39 3/16 Inches
Product Depth
50 1/2 Inches
Product Weight
245 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
