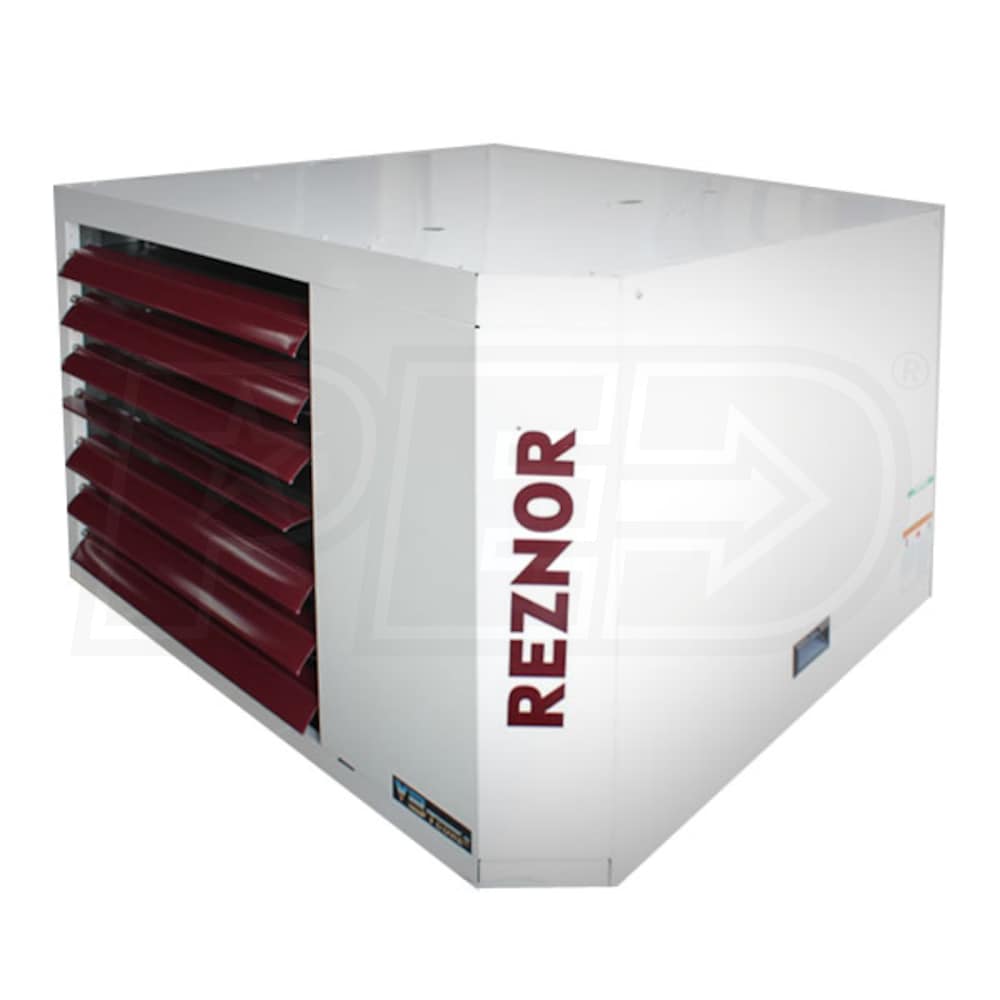

Reznor UDAP-60 Power Vented Gas Fired Unit Heater, NG, Aluminized Heat Exchanger - 60,000 BTU
Model: UDAP-60
+
Share This Product
-
Product Description
-
47Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reznor UDAP-60 Features
- Residential and commercial/industrial certification
- Multi-try direct spark ignition with 100% lockout
- Vibration isolated fan and venter motors
- 2-pt and 4-pt suspension points
- External gas connection
Reznor UDAP-60 Gas Fired Unit Heater is a 115 volt, gas fired unit heater designed to provide efficient heating. Reznor UDAP-60 uses a single burner combustion system to provide a 50,000 BTU/hr. output with an 82-83% thermal efficiency. UDAP-60 provides a 50-60 F rise range. UDAP models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UDAP-60 can be suspended from either 2 or 4 suspension points or ceiling mounted with an optional hanger kit. UDAP-60 provides improved efficiency and easier installation over previous Reznor models.
Product Note
The image may not reflect actual product features. The Reznor UDAP-60 comes with four horizontal louvers.
Specifications
General Information
Product Line
UDAP
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
50000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
60000 BTU
Efficiency
83 %
Maximum Air Flow
769 CFM
Minimum Air Flow
769 CFM
Electrical Data
Phase
1
Dimensions
Primary Vent Pipe Diameter
4 Inches
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Gas Piping Diameter
1/2 Inch
Product Height
15 1/8 Inches
Product Width
26 5/8 Inches
Product Depth
27 Inches
Product Weight
74 Pounds
Shipping Weight
84 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Features
Features
- Reznor UDAP-60 Features
- Residential and commercial/industrial certification
- Multi-try direct spark ignition with 100% lockout
- Vibration isolated fan and venter motors
- 2-pt and 4-pt suspension points
- External gas connection
Reznor UDAP-60 Gas Fired Unit Heater is a 115 volt, gas fired unit heater designed to provide efficient heating. Reznor UDAP-60 uses a single burner combustion system to provide a 50,000 BTU/hr. output with an 82-83% thermal efficiency. UDAP-60 provides a 50-60 F rise range. UDAP models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UDAP-60 can be suspended from either 2 or 4 suspension points or ceiling mounted with an optional hanger kit. UDAP-60 provides improved efficiency and easier installation over previous Reznor models.
Product Note
The image may not reflect actual product features. The Reznor UDAP-60 comes with four horizontal louvers.
Specifications
General Information
Product Line
UDAP
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
50000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
60000 BTU
Efficiency
83 %
Maximum Air Flow
769 CFM
Minimum Air Flow
769 CFM
Electrical Data
Phase
1
Dimensions
Primary Vent Pipe Diameter
4 Inches
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Gas Piping Diameter
1/2 Inch
Product Height
15 1/8 Inches
Product Width
26 5/8 Inches
Product Depth
27 Inches
Product Weight
74 Pounds
Shipping Weight
84 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Product Specs
+−
Specifications
General Information
Product Line
UDAP
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
50000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
60000 BTU
Efficiency
83 %
Maximum Air Flow
769 CFM
Minimum Air Flow
769 CFM
Electrical Data
Phase
1
Dimensions
Primary Vent Pipe Diameter
4 Inches
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Gas Piping Diameter
1/2 Inch
Product Height
15 1/8 Inches
Product Width
26 5/8 Inches
Product Depth
27 Inches
Product Weight
74 Pounds
Shipping Weight
84 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Product Q&A
(5)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
What is the difference between UDAS/UDAP?
Ray
from Washington
August 10, 2016
Answer
The UDAS model has a separated combustion which requires a second pipe for fresh air from the outside. The UDAP model is a standard combustion unit which only requires one pipe for the exhaust.
The UDAP model is fine for most applications, but if you have a space that is tightly sealed, or contains lots of air born contaminants and pollutants, the UDAS may be a better option.
The UDAP model is fine for most applications, but if you have a space that is tightly sealed, or contains lots of air born contaminants and pollutants, the UDAS may be a better option.
Was this answer helpful?
Yes
2
No
0
+−
Do I need a mounting kit with this or does it have one already? I'm assuming it has a thermostat also?
Ken
from Michigan
July 19, 2016
Answer
The Reznor UDAP can be suspended by two or four mounting points and is usually hung from the ceiling with threaded rod readily available at your local home improvement store.
There is a close mount kit available for UDAP sizes 30k - 125k, and the part is 197094 (aka CK22).
A 24-volt thermostat needs to be purchased separately as there are a wide variety of options available.
There is a close mount kit available for UDAP sizes 30k - 125k, and the part is 197094 (aka CK22).
A 24-volt thermostat needs to be purchased separately as there are a wide variety of options available.
Was this answer helpful?
Yes
1
No
0
+−
We recently installed 2 model UDAP150 gas fired heaters. I am trying to set up our ISO 9001 maintenance schedule. I need to know the recommended maintenance that must be performed on these, what should be done and at what intervals.
John
from New Jersey
December 18, 2015
Answer
Reznor recommends annual maintenance for their UDAS unit heaters. This should include cleaning, inspecting, and testing major components and safety devices for proper operation. Details can be found beginning page 28 of the
installation manual.
installation manual.
Was this answer helpful?
Yes
0
No
0
+−
Can you supply this unit with a 2 stage gas valve?
Dennis
from Washington
December 18, 2015
Answer
Sizes of the UDAS and UDAP heaters 60,000BTU/hr and up can be special ordered with a 2-stage gas valve. This version will need to be special ordered, so it will cost slightly more and also have a longer lead time. Please contact us for details and to learn about other available options.
Was this answer helpful?
Yes
0
No
0
+−
How does the UDAS-45 differ from the UDAS-45-AA2? Both appear to be usable with propane.
Russ
from Colorado
December 18, 2015
Answer
The -AA2 model is a variation of a UDAS/UDAP unit heater that is set up at the factory for use with liquid propane. The standard UDAS/UDAP model is factory set for natural gas use. With the appropriate conversion kit, you can also adapt the base model for use with propane. Because the -AA2 models must be special ordered, it is usually faster and cheaper to order the standard natural gas model with the appropriate conversion kit, and adapt the unit for use with propane in the field. The appropriate conversion kit can be found listed under the 'Accessories' tab.
Was this answer helpful?
Yes
1
No
0
