Reznor UDAP-30 Power Vented Gas Fired Unit Heater, NG, Aluminized Heat Exchanger - 30,000 BTU

Model:

UDAP-30

Write a Review
$828.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Apr 19th
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$138 / Month
Suggested monthly payments with 6 month financing.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Reznor UDAP-30 Power Vented Gas Fired Unit Heater, NG, Aluminized Heat Exchanger - 30,000 BTU
Reznor UDAP-30 Power Vented Gas Fired Unit Heater, NG, Aluminized Heat Exchanger - 30,000 BTU
Model: UDAP-30
$828.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Reznor UDAP-30 Gas Fired Unit Heater is a 115 volt, gas fired unit heater designed to provide efficient heating. Reznor UDAP-30 uses a single burner combustion system to provide a 25,000 BTU/hr. output with an 82-83% thermal efficiency. UDAP-30 provides a 50-60 F rise range. UDAP models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UDAP-30 can be suspended from either 2 or 4 suspension points or ceiling mounted with an optional hanger kit. UDAP-30 provides improved efficiency and easier installation over previous Reznor models.
  • Reznor UDAP-30 Features
  • Residential and commercial/industrial certification
  • Multi-try direct spark ignition with 100% lockout
  • Vibration isolated fan and venter motors
  • 2-pt and 4-pt suspension points
  • External gas connection
  • Product Note

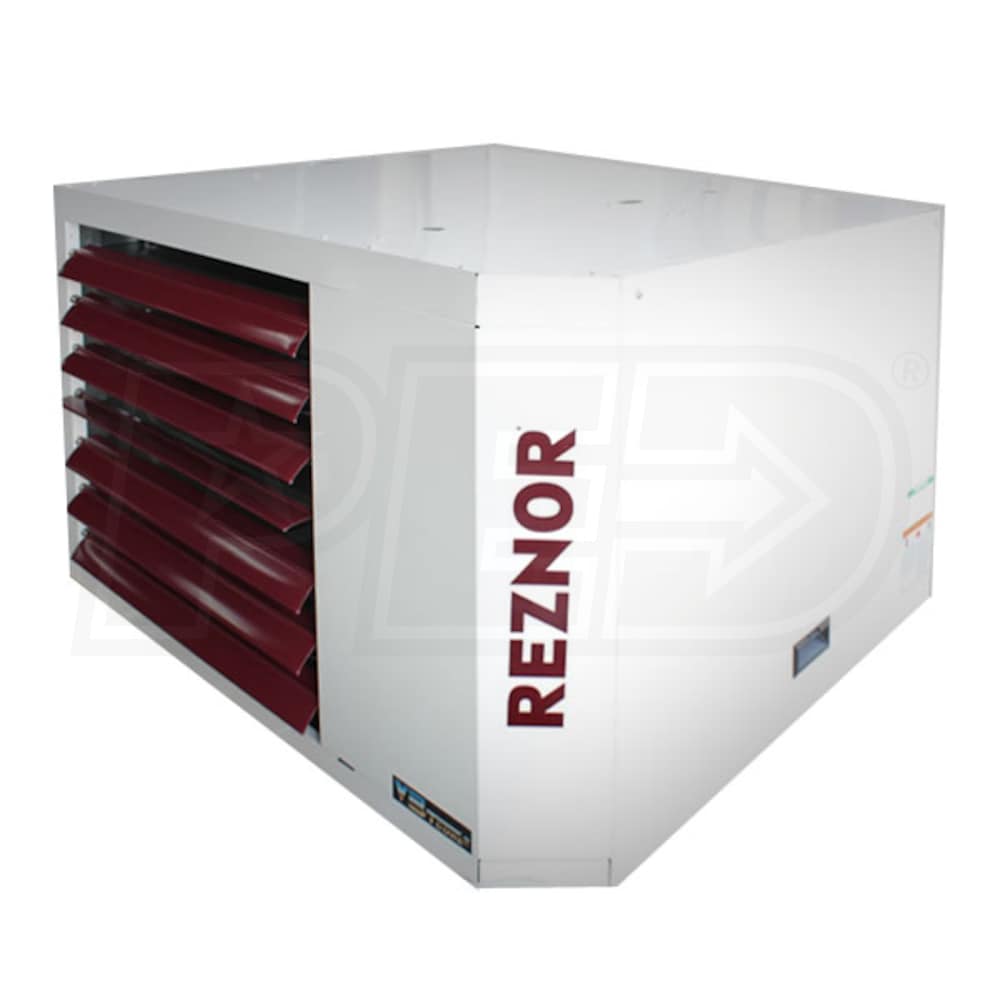

    The image may not reflect actual product features. The Reznor UDAP-30 comes with three horizontal louvers.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

UDAP-30
General Information
Product Line
UDAP
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
25000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
30000 BTU
Thermal Efficiency
82 %
Maximum Air Flow
456 CFM
Minimum Air Flow
456 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
4 Inches
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Gas Piping Diameter
1/2 Inch
Product Height
12 1/8 Inches
Product Width
26 5/8 Inches
Product Depth
26 Inches
Product Weight
61 Pounds
Shipping Weight
71 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
