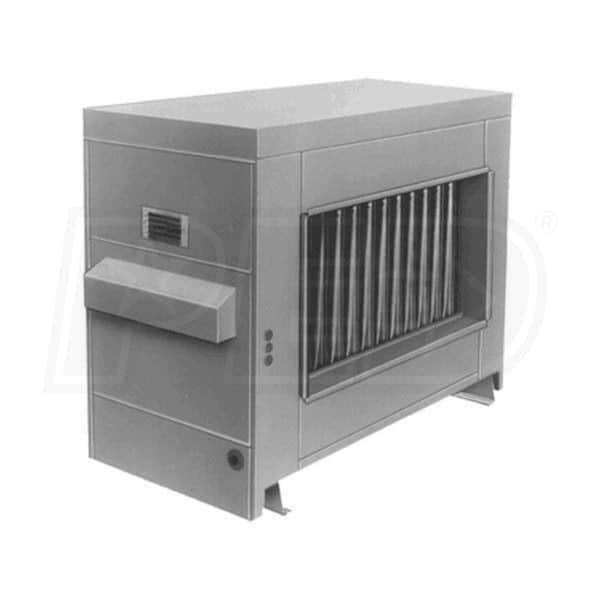

Reznor 125,000 BTU Gas Fired Duct Furnace Natural Gas

Model:

RP-125

Write A Review
$4,112.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$52 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Reznor 125,000 BTU Gas Fired Duct Furnace Natural Gas
Reznor 125,000 BTU Gas Fired Duct Furnace Natural Gas
Model: RP-125
$4,112.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Overview for Reznor RP-125

    Reznor RP-125 125,000 BTU Gas Fired Duct Furnace Natural Gas.
  • Reznor RP-125 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Redundant single stage combination gas valve
  • Spark-ignited intermittent safety pilot
  • Power venter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

RP-125
specs product image PID-46897
Overview
Product Category
Unit Heater
Additional Model Numbers

RP-125, RP-125

General Information
Product Line
RP
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Stages
Single Stage
Blower Motor Speed
Multi-Speed
Mount Type
Roof Mount
Performance
Heating Capacity
100000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
125000 BTU
Maximum Output Capacity
100000 BTU
High Fire Input
125,000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
1840 CFM
Minimum Air Flow
1020 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Product Height
38 13/24 Inches
Product Width
30 15/16 Inches
Product Depth
26 Inches
Product Weight
201 Pounds
Shipping Weight
201 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
