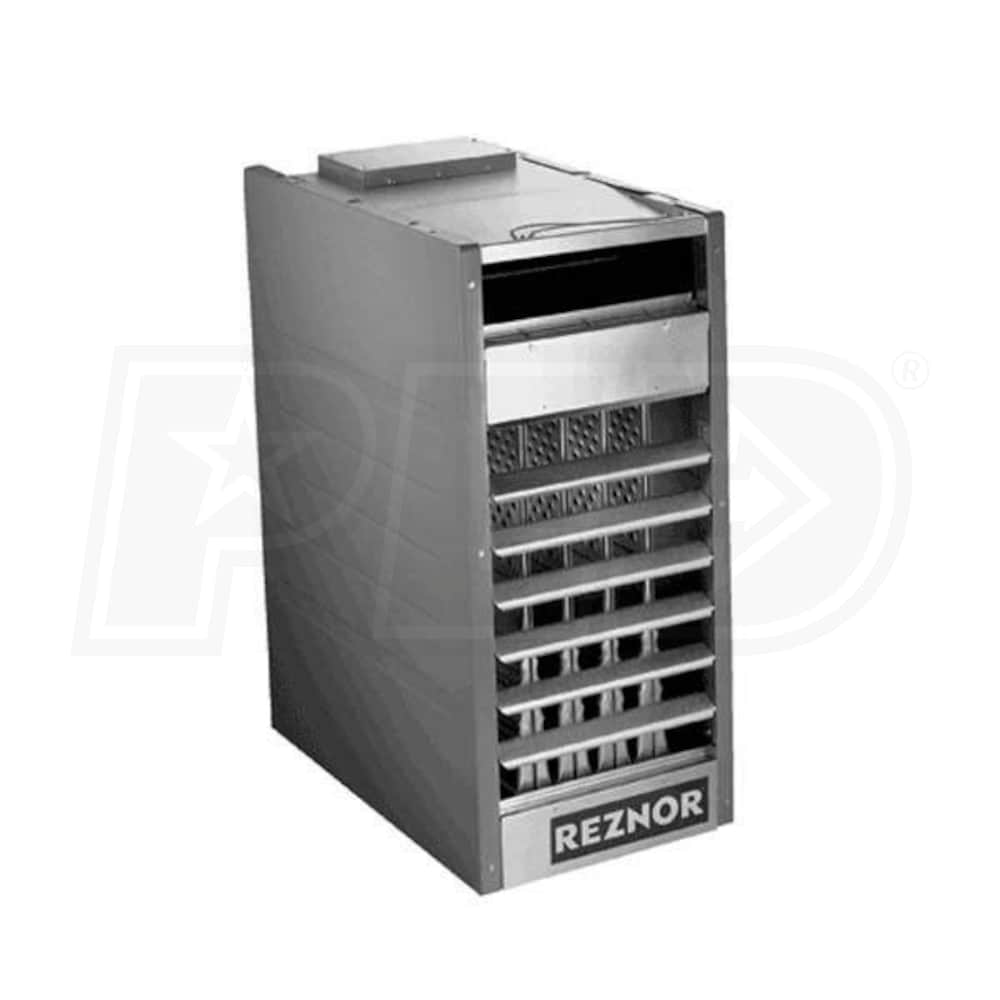

Reznor F-100 Gas Fired Unit Heater - Gravity Vented - LP - Aluminized Heat Exchanger - 100,000 BTU

Reznor F-100 Gas Fired Unit Heater - Gravity Vented - LP - Aluminized Heat Exchanger - 100,000 BTU
Model: F-100-AA2
$1,256.05
Factory-Direct
Ships in 3 - 4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Input Capacity (BTU/h)
Fuel Type
Heat Exchanger Material
Add-Ons

Free ShippingNo Sales Tax* (Except IL)$1,256.05Buy Now
No Sales Tax* (Except FL)$1,256.05Visit Site
Factory-Direct
Ships in 3 - 4 Weeks
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Important Note

    Due to federal regulations, this product includes option code AH3 (spark pilot with timed lock) out and AV7 (vent damper). Option code AV7 will be shipped in a separate box.

    Reznor F-100 Gas Fired Unit Heater, Gravity Vented, LP, Aluminized Heat Exchanger - 100,000 BTU

    Reznor F-100-AA2 Gas Fired Unit Heater is a 115 volt, gas fired unit heater. It provides a 100000 BTU/hr. output with an 80% thermal efficiency. F models come equipped with blocked vent shut off. Reznor F-100-AA2 is designed for ceiling suspension. Gas-fired appliances are not designed for use in atmospheres containing flammable vapors, combustible dust, or chlorinated or halogenated hydrocarbons. In California, F model units require AH2 or AH3 spark pilot.

    Reznor F-100-AA2 Gas Fired Unit Heater Features:
    • Aluminized steel heat exchanger
    • Single stage combination gas valve
    • Transformer for 24-volt controls
    • Manual match-lit pilot with 100% lockout
    • Blocked vent shutoff system
    • 2-pt threaded hanger connections
    • Convenient bottom burner access
    Reznor F-100-AA2 Gas Fired Unit Heater Warranty:
    • 1 year parts warranty
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
0.5 Inches
Product Height
30.125 Inches
Product Width
17.5 Inches
Product Depth
30.5 Inches
Product Weight
97 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Features
Features
    Important Note

    Due to federal regulations, this product includes option code AH3 (spark pilot with timed lock) out and AV7 (vent damper). Option code AV7 will be shipped in a separate box.

    Reznor F-100 Gas Fired Unit Heater, Gravity Vented, LP, Aluminized Heat Exchanger - 100,000 BTU

    Reznor F-100-AA2 Gas Fired Unit Heater is a 115 volt, gas fired unit heater. It provides a 100000 BTU/hr. output with an 80% thermal efficiency. F models come equipped with blocked vent shut off. Reznor F-100-AA2 is designed for ceiling suspension. Gas-fired appliances are not designed for use in atmospheres containing flammable vapors, combustible dust, or chlorinated or halogenated hydrocarbons. In California, F model units require AH2 or AH3 spark pilot.

    Reznor F-100-AA2 Gas Fired Unit Heater Features:
    • Aluminized steel heat exchanger
    • Single stage combination gas valve
    • Transformer for 24-volt controls
    • Manual match-lit pilot with 100% lockout
    • Blocked vent shutoff system
    • 2-pt threaded hanger connections
    • Convenient bottom burner access
    Reznor F-100-AA2 Gas Fired Unit Heater Warranty:
    • 1 year parts warranty
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
0.5 Inches
Product Height
30.125 Inches
Product Width
17.5 Inches
Product Depth
30.5 Inches
Product Weight
97 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Product Specs
+
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
0.5 Inches
Product Height
30.125 Inches
Product Width
17.5 Inches
Product Depth
30.5 Inches
Product Weight
97 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Reznor product.
Product Q&A
(1)
+
Trying to inquire about the amount of space between top of unit and ceiling? I have a F 50 series unit. Feet or inches?
Johnny M.
from Texas
August 08, 2016
Read Response +
Answer
Please refer to the measurements below for all the clearances:

Sizes Top Sides Rear
25-125k 2" 18" 24"
165-400k 6" 18" 24"

Hide Response -
