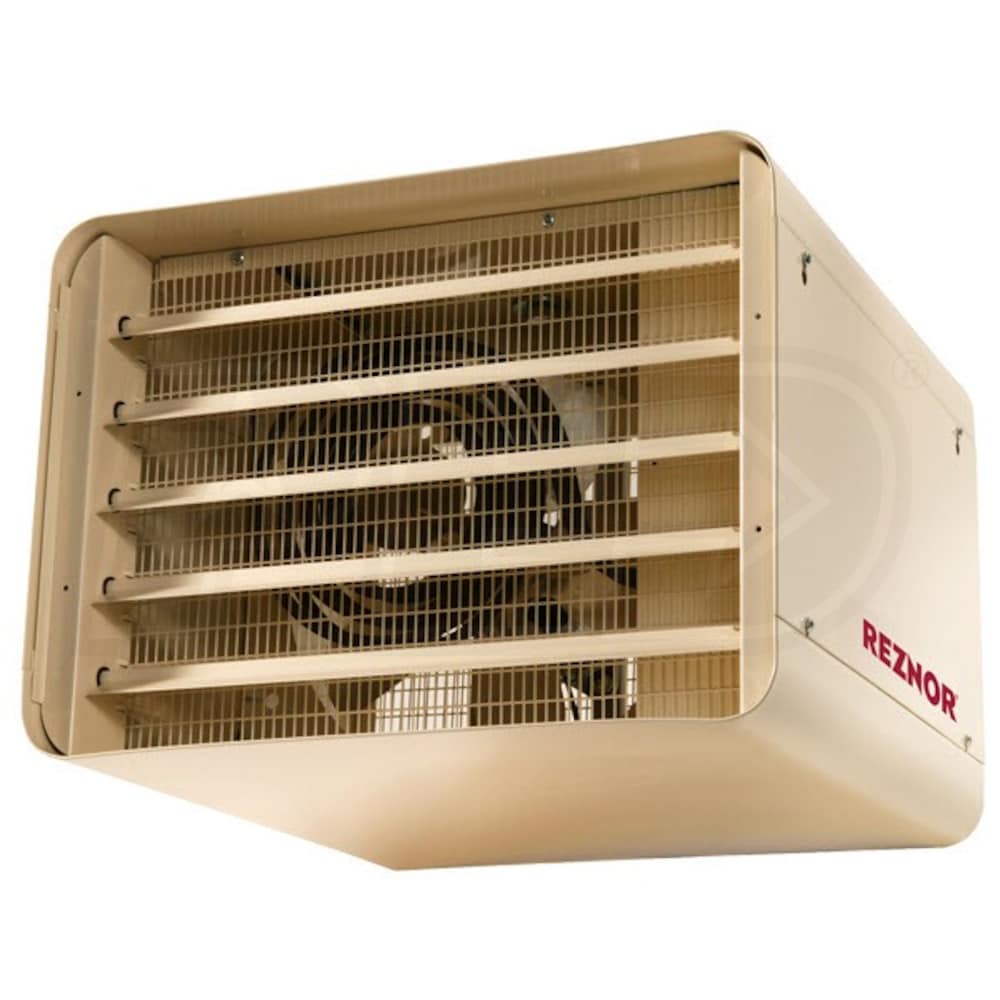

Reznor 170,720 BTU 50 kW Suspended Electric Heater 480V 3 Phase

Model:

EGHB-50-AK7E

Write A Review
$6,621.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$83 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Reznor 170,720 BTU 50 kW Suspended Electric Heater 480V 3 Phase
Reznor 170,720 BTU 50 kW Suspended Electric Heater 480V 3 Phase
Model: EGHB-50-AK7E
$6,621.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Overview for Reznor EGHB-50-AK7E

    Reznor EGHB-50-AK7E 170,720 BTU 50 kW Suspended Electric Heater 480V 3 Phase.
  • Reznor EGHB-50-AK7E Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EGHB-50-AK7E
specs product image PID-46148
Overview
Product Category
Unit Heater
Additional Model Numbers

EGHB-50-AK7E, EGHB-50-AK7E

General Information
Type
Heavy Duty
Product Line
EGHB
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
170720 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
170720 BTU
Heating Capacity (kW)
50 kW
Maximum Air Flow
2000 CFM
Minimum Air Flow
2000 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
60.21 Amps
Dimensions
Product Height
23 Inches
Product Width
25 1/4 Inches
Product Depth
34 5/16 Inches
Product Weight
150 Pounds
Shipping Weight
150 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
