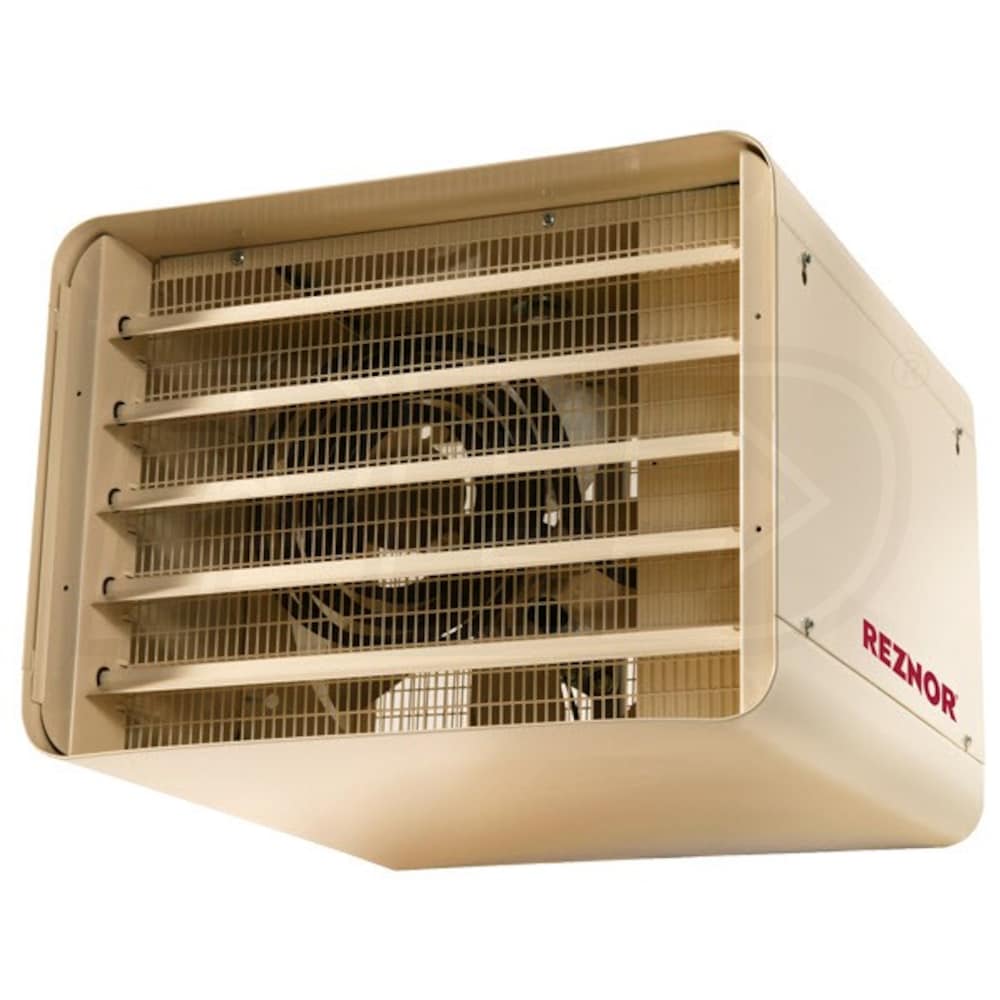

Reznor 68,288 BTU 20 kW Suspended Electric Heater 208V 3 Phase

Model:

EGHB-20-AK5

Recommended
Write A Review
$3,458.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Reznor 68,288 BTU 20 kW Suspended Electric Heater 208V 3 Phase
Reznor 68,288 BTU 20 kW Suspended Electric Heater 208V 3 Phase
Model: EGHB-20-AK5
$3,458.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Overview for Reznor EGHB-20-AK5

    Reznor EGHB-20-AK5 68,288 BTU 20 kW Suspended Electric Heater 208V 3 Phase.
  • Reznor EGHB-20-AK5 Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EGHB-20-AK5
specs product image PID-46124
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Additional Model Numbers

EGHB-20-AK5, EGHB-20-AK5

Performance
Heating Capacity
68288 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
68288 BTU
Heating Capacity (kW)
20 kW
Maximum Air Flow
1300 CFM
Minimum Air Flow
1300 CFM
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Current Draw
55.58 Amps
Dimensions
Product Height
17 1/2 Inches
Product Width
22 Inches
Product Depth
22 1/2 Inches
Product Weight
85 Pounds
Shipping Weight
95 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
