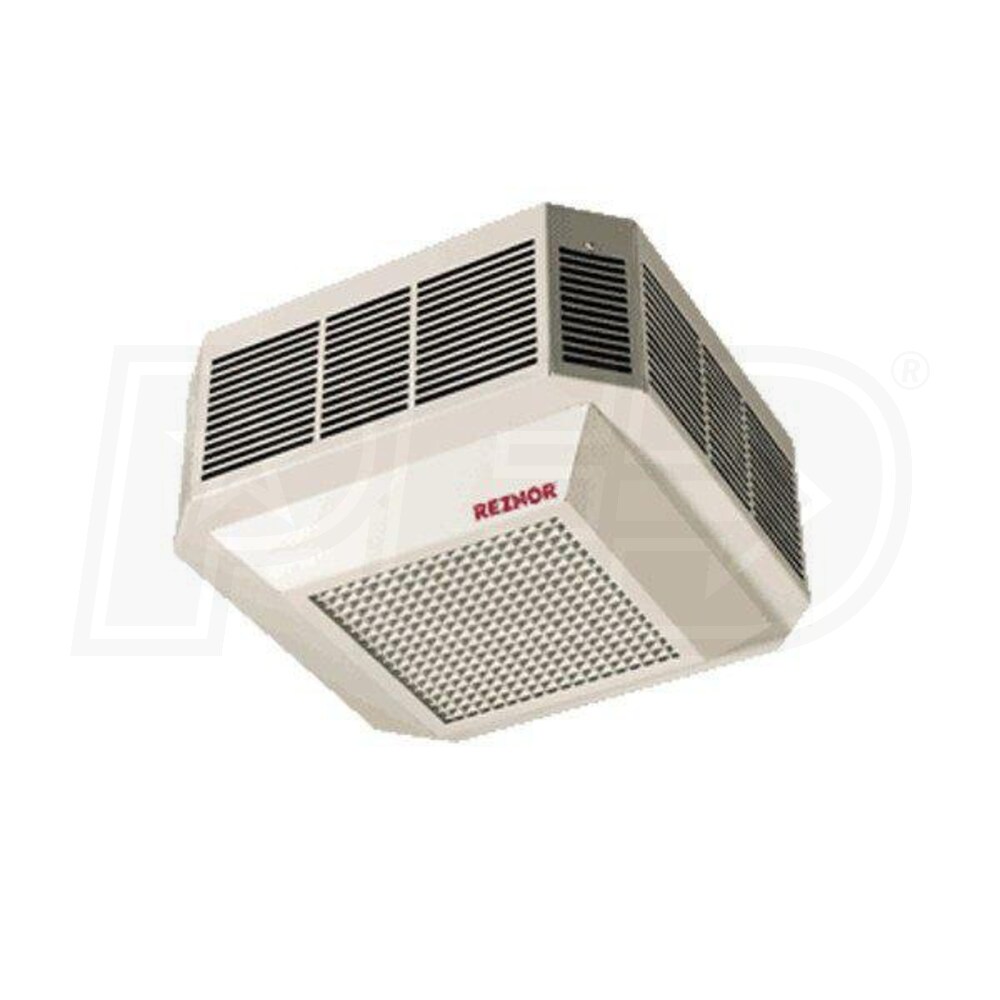

Reznor ECS-7 Ceiling Surface Mounted Electric Unit heater, 480V, 1 Phase - 7.5 kW (25,608 BTU)

Reznor ECS-7 Ceiling Surface Mounted Electric Unit heater, 480V, 1 Phase - 7.5 kW (25,608 BTU)
Our Price
Compare Prices
Shipping Info
Model: ECS-7-AK9E
$1,917.90
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Voltage/Phase

Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor ECS-7-AK9E Ceiling Surface Mounted Electric Unit Heater is a 480 volt, ceiling mounted electric unit heater. It has an maximum heat capacity of 25608 BTU/hr. to provide supplementary heating in a variety of ceiling constructions. The Reznor ECS-7-AK9E is suitable for use in apartment buildings, drop ceilings, stairwells, garages, and entrance vestibules. With epoxy/polyester powder paint, the ECS-7-AK9E is corrosion resistant.
  • Reznor ECS-7-AK9E Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
Specifications
General Information
Type
Standard
Product Line
ECS
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Ceiling
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Minimum Air Flow
700 CFM
Maximum Air Flow
700 CFM
Electrical Data
Voltage
480 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
8.5 Inches
Product Width
22.3125 Inches
Product Depth
22.3125 Inches
Product Weight
34 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Features
Features
    Reznor ECS-7-AK9E Ceiling Surface Mounted Electric Unit Heater is a 480 volt, ceiling mounted electric unit heater. It has an maximum heat capacity of 25608 BTU/hr. to provide supplementary heating in a variety of ceiling constructions. The Reznor ECS-7-AK9E is suitable for use in apartment buildings, drop ceilings, stairwells, garages, and entrance vestibules. With epoxy/polyester powder paint, the ECS-7-AK9E is corrosion resistant.
  • Reznor ECS-7-AK9E Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
Specifications
General Information
Type
Standard
Product Line
ECS
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Ceiling
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Minimum Air Flow
700 CFM
Maximum Air Flow
700 CFM
Electrical Data
Voltage
480 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
8.5 Inches
Product Width
22.3125 Inches
Product Depth
22.3125 Inches
Product Weight
34 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
