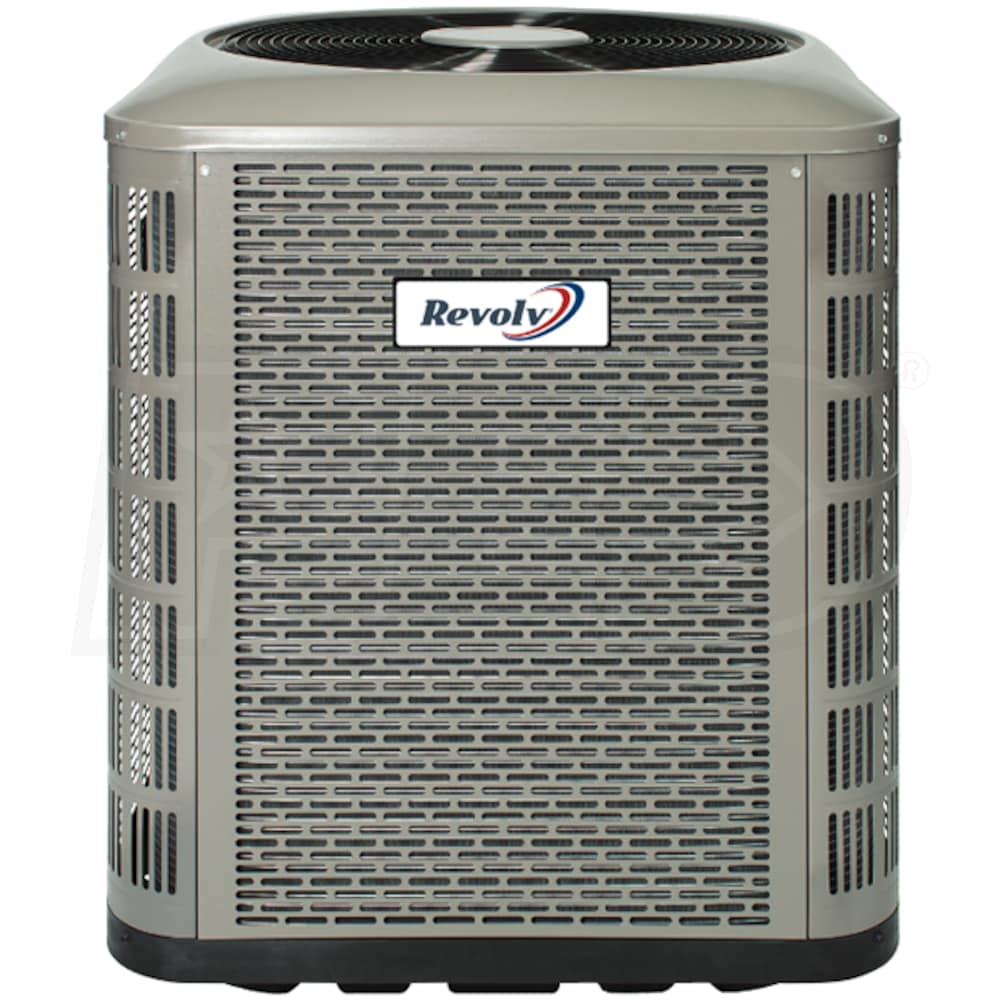

Revolv AccuCharge® - 3.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant

Model:

RSHQ424

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Revolv AccuCharge® - 3.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant
Revolv AccuCharge® - 3.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant
Model: RSHQ424
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Revolv is all about delivering easier installation, improved energy efficiency, and long lasting performance. What makes Revolv stand out against the rest is its complete AccuCharge® system that delivers a factory precise refrigerant charge so that installers aren't forced to spend hours balancing out the system. All Revolv systems also come with FitRight® fittings that give you a quick easy installation process. If you're looking for a reliable, efficient unit then the Revolv AccuCharge® heat pump is for you.

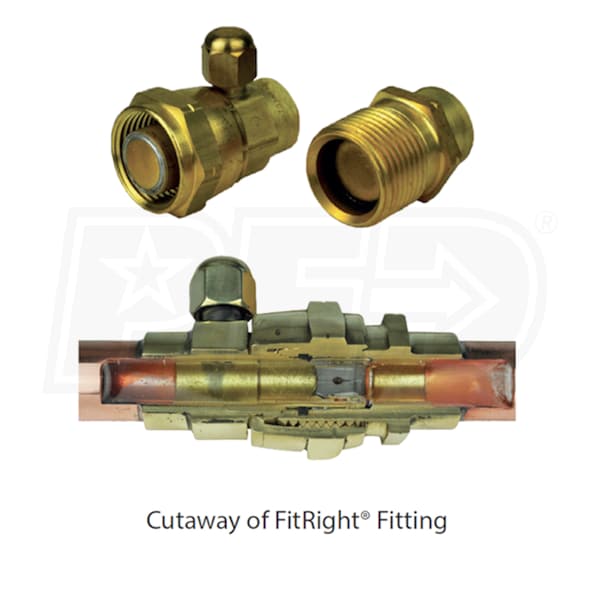

  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Corrosion Resistant Finish
  • The Revolv AccuCharge® heat pumps are made out of a galvanized steel with a polyester urethane coat, creating a durable and corrosion resistant finish.
  • Composite Base Pan
  • A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better and is also corrosion resistant.
  • High Pressure Switch
  • The AccuCharge®: heat pumps come with a high pressure switch that protects your unit against unsafe high system pressures. It has an auto-reset feature that prevents unnecessary service visits.
  • Louvered Condenser Guard
  • The RSHQ424 has a durable metal guard that protects the coil from extreme weather or objects hitting it and damaging your unit.
  • Micro-Channel Coils
  • All of the Revolv models have all aluminum coils, which are highly corrosion resistant and prevent the unit from premature failure.
  • Product Note
    The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RSHQ424
specs product image PID-83032
Overview
Product Category
Heat Pump
UPC
663132360673
General Information
Type
Heat Pump Condenser
Product Line
AccuCharge
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Heating Capacity
42000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
79 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
45 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Product Weight
234 Pounds
Shipping Weight
244 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
Energy Star Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
