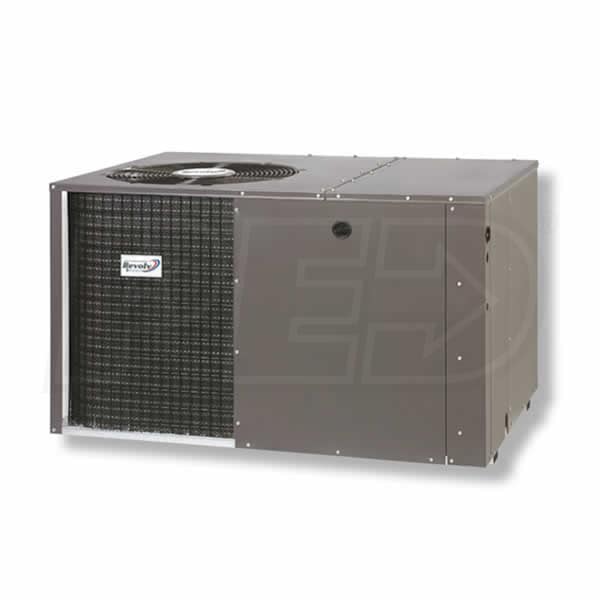

Revolv - 2.5 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 14.0 SEER - Horizontal
Revolv - 2.5 Ton Cooling - Packaged Air Conditioner - Manufactured Home - 14.0 SEER - Horizontal
+
Share This Product
-
Product Description
-
5Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Quality Compressor
- Revolv packaged units come with a state of the art compressor with a built-in Hi Pressure Switch to ensure a long lasting, efficient compressor.
- Designed With Galvanized Steel
- Designed to withstand the elements, Revolv packaged units are built with a polyester urethane coat finish, making it 50% more corrosion resistant than comparable units.
- Micro-Channel Coils
- All of the Revolv models have all aluminum coils, which are highly corrosion resistant and prevent the unit from premature failure.
- Compact Footprint and Profile
- By combining the comrpessor and coil into a single unit, the RPC series provides an easy to install, space-saving alternative to traditional home cooling options.
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RPC1430 combines everything you will need for whole home cooling in one convenient package. These 14 SEER systems are designed specifically for manufactured and mobile homes as they feature a compact footprint and profile to fit into any environment. The RPC is built with a galvanized steel frame and features micro-channel coils to ensure peak performance for years to come. Pair it with an optional electric heat kit to provide whole home heating as well.
Product Note
Please note, this product uses RP7RE-030K as its AHRI model number.
Specifications
General Information
Type
Air Conditioner Packaged Unit
Product Line
RPC
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Blower Type
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
UPC
663132329397
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17.2 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
22 5/24 Inches
Product Width
35 Inches
Product Length
49 Inches
Product Weight
236 Pounds
Shipping Weight
248 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8657695
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
