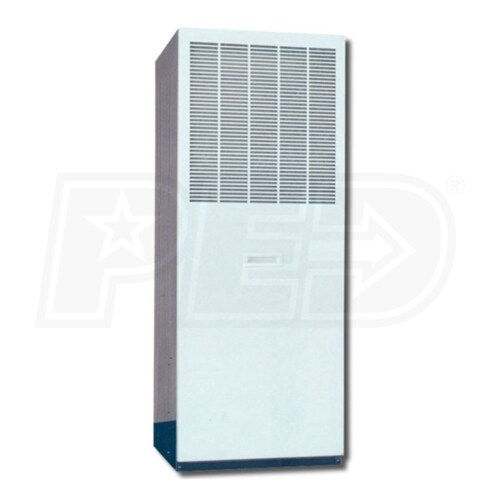

Revolv EB - 56,000 BTU - Electric Furnace - 100% Efficiency - 16.4 kW - Downflow/Upflow - Multi-Speed

Revolv EB - 56,000 BTU - Electric Furnace - 100% Efficiency - 16.4 kW - Downflow/Upflow - Multi-Speed
Model: EB17D
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Revolv, a division of Coleman, is dedicated to bringing efficient comfort to the manufactured and mobile home market. Their innovation can be seen easily in the EB series of electric furnaces. Since it does not utilize combustion, the EB furnace doesn't require a vent system, just readily available airflow. The EB17D is capable of providing 56,000 BTU of heating at 100% efficiency in Department of Energy specified applications, meaning that every kWh of electricity used goes towards heating. When it comes to electric comfort in a manufactured home, the EB17D is hard to beat.

    Product Features

    Easy, Safe Installation
    Finding a place to install an EB electric furnace is easy. In downflow applications, it requires no clearance to combustibles and in upflow applications, a single inch from the outlet duct is required.

    Advanced Heat Elements
    The EB's heating elements are designed with nickel and chrome, giving them optimal electric resistance for efficient heating and a long life-span for your peace of mind. They are activated and deactivated in stages, preventing unnecessary wear and tear.

    Low Noise
    Disruptive sound levels aren't a concern with this furnace. Revolv lined their EB series electric furnaces with sound-dampening insulation to provide quiet comfort.

    Multi-Speed Fan
    The EB17D uses a four speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.

    Integral Circuit Breakers
    You don't have to worry about your electrical system being damaged by shorts with an EB electric furnace. They are equipped with their own set of circuit breakers in place of fuses.

    Upflow Compatible
    The EB17D ships in a downflow configuration, but it can be easily converted to an upflow application with a 3500.7211 upflow flange plate kit.

    Internal Filtration
    The EB doesn't just keep your home comfortable, it also keeps you air clean. An air filter that captures dust, lint, and other contaminants is installed in the top of the furnace cabinet, where it is easy to check and replace.

    Product Includes
    • (1) Revolv EB17D Electric Furnace
    • (1) Filter
    Product Note

    Listed capacity information is for 240V applications. Please consult the brochure in the manuals tab for capacity information for 230V and 220V applications.

Specifications
General Information
Type
Electric Furnace
Product Line
EB
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Upflow
Performance
Heating Capacity
16.4 kW
Nominal Heating Capacity
56000 BTU
Maximum Air Flow
1140 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
70.7 Amps
Recommended Breaker Size
90 Amps
Dimensions
Product Height
51.625 Inches
Product Width
19.625 Inches
Product Depth
24 Inches
Shipping Weight
86 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Certifications
UL Listed
Yes
ISO Certified
Yes
Features
Features

    Revolv, a division of Coleman, is dedicated to bringing efficient comfort to the manufactured and mobile home market. Their innovation can be seen easily in the EB series of electric furnaces. Since it does not utilize combustion, the EB furnace doesn't require a vent system, just readily available airflow. The EB17D is capable of providing 56,000 BTU of heating at 100% efficiency in Department of Energy specified applications, meaning that every kWh of electricity used goes towards heating. When it comes to electric comfort in a manufactured home, the EB17D is hard to beat.

    Product Features

    Easy, Safe Installation
    Finding a place to install an EB electric furnace is easy. In downflow applications, it requires no clearance to combustibles and in upflow applications, a single inch from the outlet duct is required.

    Advanced Heat Elements
    The EB's heating elements are designed with nickel and chrome, giving them optimal electric resistance for efficient heating and a long life-span for your peace of mind. They are activated and deactivated in stages, preventing unnecessary wear and tear.

    Low Noise
    Disruptive sound levels aren't a concern with this furnace. Revolv lined their EB series electric furnaces with sound-dampening insulation to provide quiet comfort.

    Multi-Speed Fan
    The EB17D uses a four speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.

    Integral Circuit Breakers
    You don't have to worry about your electrical system being damaged by shorts with an EB electric furnace. They are equipped with their own set of circuit breakers in place of fuses.

    Upflow Compatible
    The EB17D ships in a downflow configuration, but it can be easily converted to an upflow application with a 3500.7211 upflow flange plate kit.

    Internal Filtration
    The EB doesn't just keep your home comfortable, it also keeps you air clean. An air filter that captures dust, lint, and other contaminants is installed in the top of the furnace cabinet, where it is easy to check and replace.

    Product Includes
    • (1) Revolv EB17D Electric Furnace
    • (1) Filter
    Product Note

    Listed capacity information is for 240V applications. Please consult the brochure in the manuals tab for capacity information for 230V and 220V applications.

Specifications
General Information
Type
Electric Furnace
Product Line
EB
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Upflow
Performance
Heating Capacity
16.4 kW
Nominal Heating Capacity
56000 BTU
Maximum Air Flow
1140 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
70.7 Amps
Recommended Breaker Size
90 Amps
Dimensions
Product Height
51.625 Inches
Product Width
19.625 Inches
Product Depth
24 Inches
Shipping Weight
86 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Certifications
UL Listed
Yes
ISO Certified
Yes
Product Specs
+
Specifications
General Information
Type
Electric Furnace
Product Line
EB
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Upflow
Performance
Heating Capacity
16.4 kW
Nominal Heating Capacity
56000 BTU
Maximum Air Flow
1140 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
70.7 Amps
Recommended Breaker Size
90 Amps
Dimensions
Product Height
51.625 Inches
Product Width
19.625 Inches
Product Depth
24 Inches
Shipping Weight
86 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Certifications
UL Listed
Yes
ISO Certified
Yes
