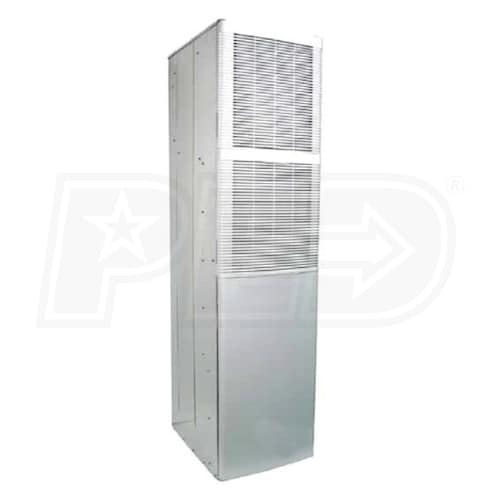

Revolv DGAA Conquest - 77,000 BTU - Gas Furnace - Manufactured Home - NG - 80% AFUE - Single-Stage - Downflow - Multi-Speed
Model:
DGAA077BDTB
+
Share This Product
Features
- (1) Revolv DGAA077BDTB Gas-Fired Furnace
- (1) Liquid Propane Conversion Kit
- (2) Filters
Revolv, a division of Coleman, is dedicated to bringing efficient comfort to the manufactured and mobile home market. The DGAA077 is a downflow furnace capable of providing 62,000 BTU of heating at an 80% efficiency. Designed for easy installation in a variety of applications, it enjoys a 0" required clearance to combustibles at the rear and sides and only 2" are required at the top of the unit. If you're struggling to effectively and safely heat your manufactured home, the DGAA077 is a solution that you can believe in.
Product Features
Safety First
Safety is always a concern in heating, but especially so in the tighter quarters of manufactured homes. The DGAA Conquest series employs a fail-safe auto-ignition system with two separate limit controls for unparalleled peace of mind.
Attractive and Durable
Revolv employs a scratch-resistant white finish on the contoured upper and lower panels of their DGAA Conquest furnace. This gives it a clean, neutral appearance that endures through wear and tear.
Gas Conversion Kit
All DGAA Conquest furnaces are field convertible to liquid propane. A conversion plate and orifice are included with the gas valve, so that conversion can be handled during installation without requiring any additional parts.
Internal Filtration
The DGAA Conquest doesn't just keep your home comfortable, it also keeps you air clean. Two air filters that capture dust, lint, and other contaminants are installed on the top door of the furnace where they are easy to check and replace.
Product Includes
Product Note
A 4000 Series roof jack is required to install this product. These roof jacks can be ordered from the accessories tab above.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
DGAA077BDTB
General Information
Type
Gas Furnace
Product Line
DGAA Conquest
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Type
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Gas Conversion Kit
Included
UPC
883982426422
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
77000
High Fire Input
77000 BTU
High Fire Output
62000 BTU
Maximum Air Flow
1305 CFM
Minimum Air Flow
1145 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
76 Inches
Product Width
19 1/2 Inches
Product Depth
24 1/2 Inches
Product Weight
146 Pounds
Certifications
CSA Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
2017044
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Reviews
(2)
Revolv DGAA077BDTB Reviews & Ratings
Worst furnace I Ever owned!!!!!!!
By Cecil I.
Elkins, West Virginia
Review Posted 02/23/2017
Worst furnace I ever owned. It is so noisy you can not even hear yourself think. It also blows way to much cold air before it ever warms up.so unhappy I would never have bought this furnace but they lied to me telling it would quieter than my old furnace. I would not recommend this furnace to my worst enemy!!!!!!
Cecil I. Does Not Recommend This
Was this review helpful?
Rating Breakdown
1/5
1/5
1/5
1/5
Cons:
Noisey very very loud
80 Decibel not acceptable
By Phil R.
Peachland, Washington
Review Posted 03/01/2016
I had this furnace installed in a manufactured home aka trailer home in the fall of 2015. It has performed well so far. My main complaint is the noise level. Considering that this type of home does not have a basement so the furnace is in the living space with you, it should have been designed to be quieter.
80 decibels is like having an alarm clock run for the duration of the cycle. It drowns out television and any conversation in the area of the furnace. Our television is at least 35 feet away and we have to double the volume. Sleep is disrupted as well. We have programmed the furnace to run less often just to avoid the noise.
I've been told that it will run even louder when it is pushing the air conditioning. I'm not happy and would not have gone this way had I known. I can't recommend this furnace!
80 decibels is like having an alarm clock run for the duration of the cycle. It drowns out television and any conversation in the area of the furnace. Our television is at least 35 feet away and we have to double the volume. Sleep is disrupted as well. We have programmed the furnace to run less often just to avoid the noise.
I've been told that it will run even louder when it is pushing the air conditioning. I'm not happy and would not have gone this way had I known. I can't recommend this furnace!
Phil R. Does Not Recommend This
Was this review helpful?
Rating Breakdown
2/5
2/5
2/5
1/5
