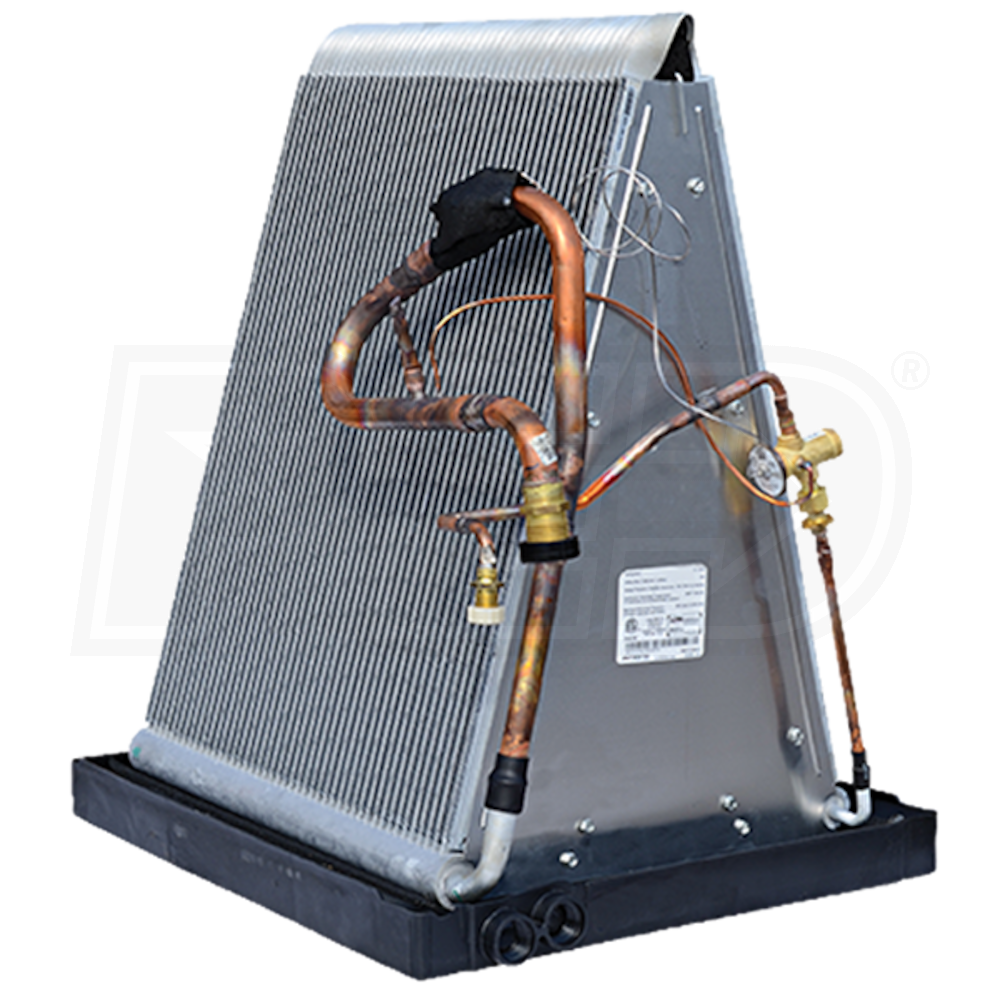

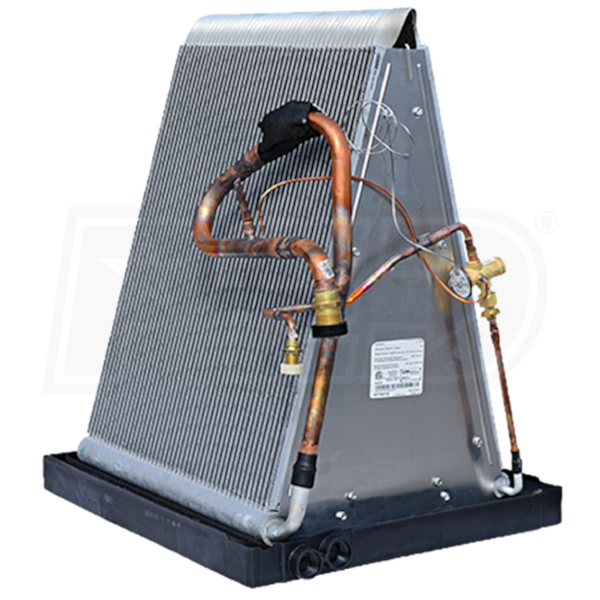

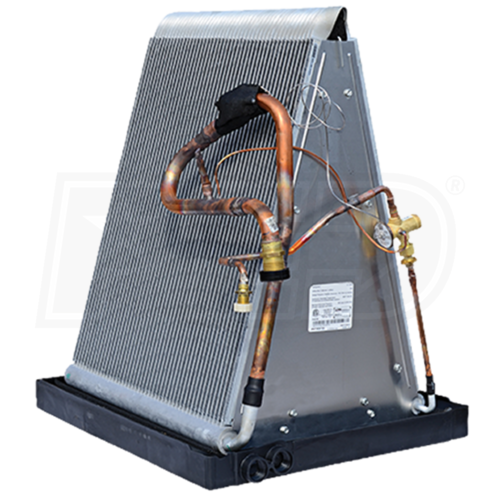

Revolv AccuCharge 14 SEER Series - 3.0 Ton - Upflow/Downflow Micro-Channel Coil - Uncased

Revolv AccuCharge 14 SEER Series - 3.0 Ton - Upflow/Downflow Micro-Channel Coil - Uncased
Our Price
Compare Prices
Shipping Info
Model: C8QAMX36U-B
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (4)
Write A Review
$554.00
Only 2 In-Stock
Ships Tuesday, Dec 18th
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -

Only 2 In-Stock
Ships Tuesday, Dec 18th
Free Freight
Free Freight
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    No need to waste any more time calculating the correct refrigerant charge in your HVAC system. The AccuCharge® 14 SEER Series coils are designed to work with AccuCharge® condensers that have a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The C8QAMX36U-B is compatible with not only air conditioners, but heat pumps as well. AccuCharge® coils are designed to be the coil of choice for new and existing downflow mobile home HVAC systems
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Installation Materials Included
  • The C8QAMX36U-B comes with a kit including a drain hose, fittings, and furnace cover plates for gas and oil furnaces.
Specifications
General Information
Type
Evaporator Coil
Product Line
AccuCharge
Refrigerant Type
R-410a
Casing
Uncased
Shape
A Coil
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
UPC
663132311507
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Cooling Capacity
36000 BTU
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
7/8 Inch
Product Height
18 Inches
Product Width
18 1/8 Inches
Product Depth
19 1/2 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    No need to waste any more time calculating the correct refrigerant charge in your HVAC system. The AccuCharge® 14 SEER Series coils are designed to work with AccuCharge® condensers that have a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The C8QAMX36U-B is compatible with not only air conditioners, but heat pumps as well. AccuCharge® coils are designed to be the coil of choice for new and existing downflow mobile home HVAC systems
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Installation Materials Included
  • The C8QAMX36U-B comes with a kit including a drain hose, fittings, and furnace cover plates for gas and oil furnaces.
Specifications
General Information
Type
Evaporator Coil
Product Line
AccuCharge
Refrigerant Type
R-410a
Casing
Uncased
Shape
A Coil
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
UPC
663132311507
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Cooling Capacity
36000 BTU
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
7/8 Inch
Product Height
18 Inches
Product Width
18 1/8 Inches
Product Depth
19 1/2 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
