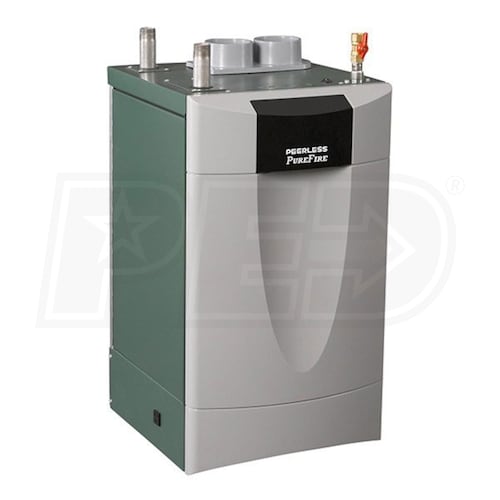

Peerless PF-110 - 102K BTU - 93.0% AFUE - Hot Water Gas Boiler - Direct Vent
Model:
PF-110-N
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Bob, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Modulating Burner
- The PF-110-N uses a modulating burner to scale heating to your needs. This burner will vary its output based on your desired temperature, preventing the overuse of energy. Anti-cycling times set during installation prevent short-cycling.
- LoNOx Operation
- Not only is the PF-110-N environmentally friendly by virtue of its tremendous efficiency, but its LoNOx operation means significantly reduced emissions and a minimal environmental footprint.
- Equipped for Outdoor Reset
- PureFire hot water boilers include an outdoor temperature sensor and outdoor reset capability. With outdoor reset control to balance your heat production, the PF-110-N improves efficiency and comfort automatically.
- Condensate System
- All Peerless PureFire boilers have an internal condensate system. This system protects your heat exchanger from condensate backup with a float switch. It also neutralizes the acidity of any condensate produced.
- Adaptable
- The PF-110-N hot water boiler may be converted
For over a century Peerless has dedicated itself to making efficient, durable boilers. The PureFire line is emblematic of these qualities. This is a direct vent, condensing boiler with DHW priority and an internal condensate system. A stainless steel burner and heat exchanger discourage corrosion and wear. The combination of first-rate components and advanced technology make the PF-110-N an excellent choice for heating your home. The PF-110-N is compact and requires zero clearance to combustibles, making installation flexible and easy. Front-mounted controls with clear error displays confer that same simplicity to maintenance. Between the efficiency-enhancing features and the quality construction, Peerless PureFire Hot Water Boilers are an attractive and reliable heating solution.
Specifications
PF-110-N
General Information
Product Line
PureFire
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor/Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Assembly Type
Packaged
Includes Pump
No
Gas Conversion Kit
Included
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
93 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
110000 BTU
Minimum Input Capacity
27500 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
102000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
89000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
4:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
29 1/2 Inches
Product Width
17 3/16 Inches
Product Depth
19 1/16 Inches
Shipping Width
23 Inches
Shipping Height
36 Inches
Shipping Depth
21 Inches
Shipping Weight
108 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2100749
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
