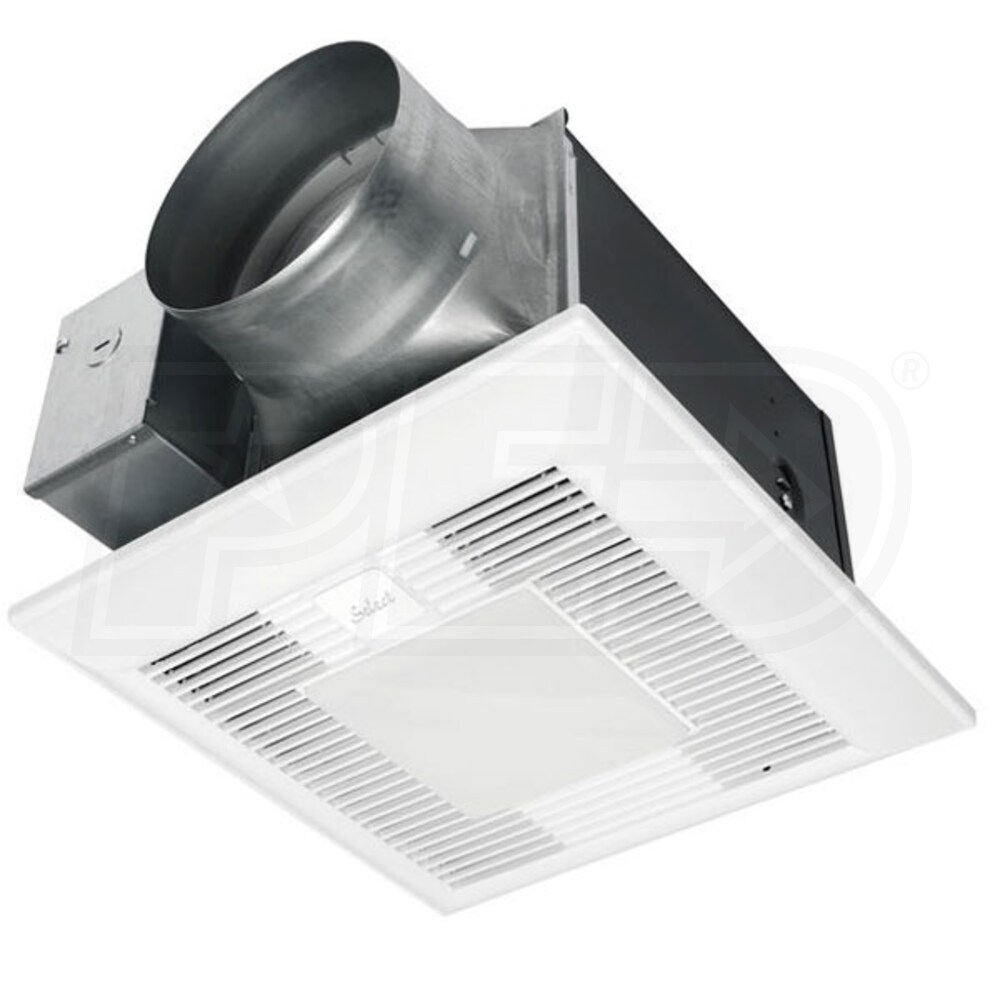

Panasonic WhisperLite™ - 150 CFM - Bathroom Exhaust Fan - Ceiling Mount - 6" Duct - With Light - Speed Control - Motion Sensor

Model:

FV-11-15VKL1-SC-MS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic WhisperLite™ - 150 CFM - Bathroom Exhaust Fan - Ceiling Mount - 6
Panasonic WhisperLite™ - 150 CFM - Bathroom Exhaust Fan - Ceiling Mount - 6" Duct - With Light - Speed Control - Motion Sensor
Model: FV-11-15VKL1-SC-MS
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic's WhisperGreen Select™ is revolutionizing the ventilation fan industry with all new features and more customization. The WhisperGreen Select™ stands out with a Built-in Pick-A-Flow speed selector switch and a DC Motor with SmartFlow technology. This unit comes with the Flex-Z Fast bracket which gives you installation flexibility and is your solution to a healthy indoor environment. The FV-11-15VKL1-CS-MS comes with a Multi-Speed Delay and a SmartAction Motion Sensor which gives you a truly automatic fan.
  • Pick-A-Flow Speed Technology
  • The FV-11-15VKL1-CS-MS has a built-in speed selector that lets you select between 50, 80, or 110 CFM's with a flip of a switch.
  • SmartFlow Technology
  • Panasonic's SmartFlow Technology senses the amount of resistance in the duct and automatically adjust the fan speed.
  • Easy Installation
  • The Flex-Z Fast installation bracket has articulating joints that let you position the fan where you want it.
  • Certified Savings
  • The FV-11-15VKL1-CS-MS Panasonic ventilation fan is ENERGY STAR certified and delivers cutting edge energy efficient solutions with the latest technological innovations. WhisperGreen was awarded "2015 Most Efficient" by ENERGY STAR.
  • Multi-Speed with Time Delay
  • The Multi-Speed with Time Delay Plug 'N Play Module Allows you to select the proper CFM settings to stay in compliance with ASHRAE 62.2 continuous ventilation requirements.
  • SmartAction Motion Sensor
  • The SmartAction Motion Sensor Plug 'N Play Module automatically activates when someone enters the room. Once all the settings have been set, the fan becomes completely automatic. This module also has a 20 minute delay timer for the fan to turn off.
  • Product Includes
  • Panasonic FV-11-15VKL1 WhisperGreen Select™ Fan
  • FV-VS15VK1 Speed Control
  • FV-MSVK1 Motion Sensor
  • Grille
  • LED Light
  • Flex-Z Fast Bracket
  • 8 Screws
  • Product Includes
    • (1) Panasonic WhisperGreen Select™ - 150 CFM - Bathroom Exhaust Fan - Ceiling Mount - 6" Duct - With Light (FV-11-15VKL1)
    • (1) Panasonic WhisperGreen Select - Plug 'N Play Module - SmartAction Motion Sensor (FV-MSVK1)
    • (1) Panasonic WhisperGreen Select - Plug 'N Play Module - Multi-Speed with Time Delay (FV-VS15VK1)
    Product Note
    This kit is a direct replacement of FV-13VKML4.

Specifications

Product Includes
  • (1) Panasonic WhisperGreen Select™ - 150 CFM - Bathroom Exhaust Fan - Ceiling Mount - 6" Duct - With Light (FV-11-15VKL1)
  • (1) Panasonic WhisperGreen Select - Plug 'N Play Module - SmartAction Motion Sensor (FV-MSVK1)
  • (1) Panasonic WhisperGreen Select - Plug 'N Play Module - Multi-Speed with Time Delay (FV-VS15VK1)
FV-11-15VKL1-SC-MS
specs product image PID-62746
General Information
Type
Bathroom Fan
Product Line
WhisperLite
Mount Type
Ceiling
Includes Light
Yes
Dimensions
Product Weight
14 Pounds
Shipping Weight
14 Pounds
FV-11-15VKL1
General Information
Type
Bathroom Fan
Product Line
WhisperGreen Select
Motor Type
DC
Mount Type
Ceiling
Includes Light
Yes
Performance
Maximum Air Flow
150 CFM
Electrical Data
Power Consumption
16.5 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
10 1/4 Inches
Product Width
10 1/4 Inches
Product Length
7 3/8 Inches
Product Weight
12 Pounds
Shipping Weight
12 Pounds
Certifications
UL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Motor Warranty
6 Years
Lamp Warranty
5 Years
FV-MSVK1
General Information
Type
Sensor
Product Line
WhisperGreen Select
Product Category
Fan Accessories
Dimensions
Product Height
3 3/4 Inches
Product Width
1 2/3 Inches
Product Length
2 Inches
Product Weight
1 Pound
Shipping Weight
1 Pound
Overview
Product Category
Fan Accessories
FV-VS15VK1
General Information
Type
Fan Control
Product Line
WhisperGreen Select
Product Category
Fan Accessories
Performance
Maximum Air Flow
150 CFM
Minimum Air Flow
30 CFM
Dimensions
Product Height
3 3/4 Inches
Product Width
1 2/3 Inches
Product Length
2 Inches
Product Weight
1 Pound
Shipping Weight
1 Pound
Overview
Product Category
Fan Accessories
