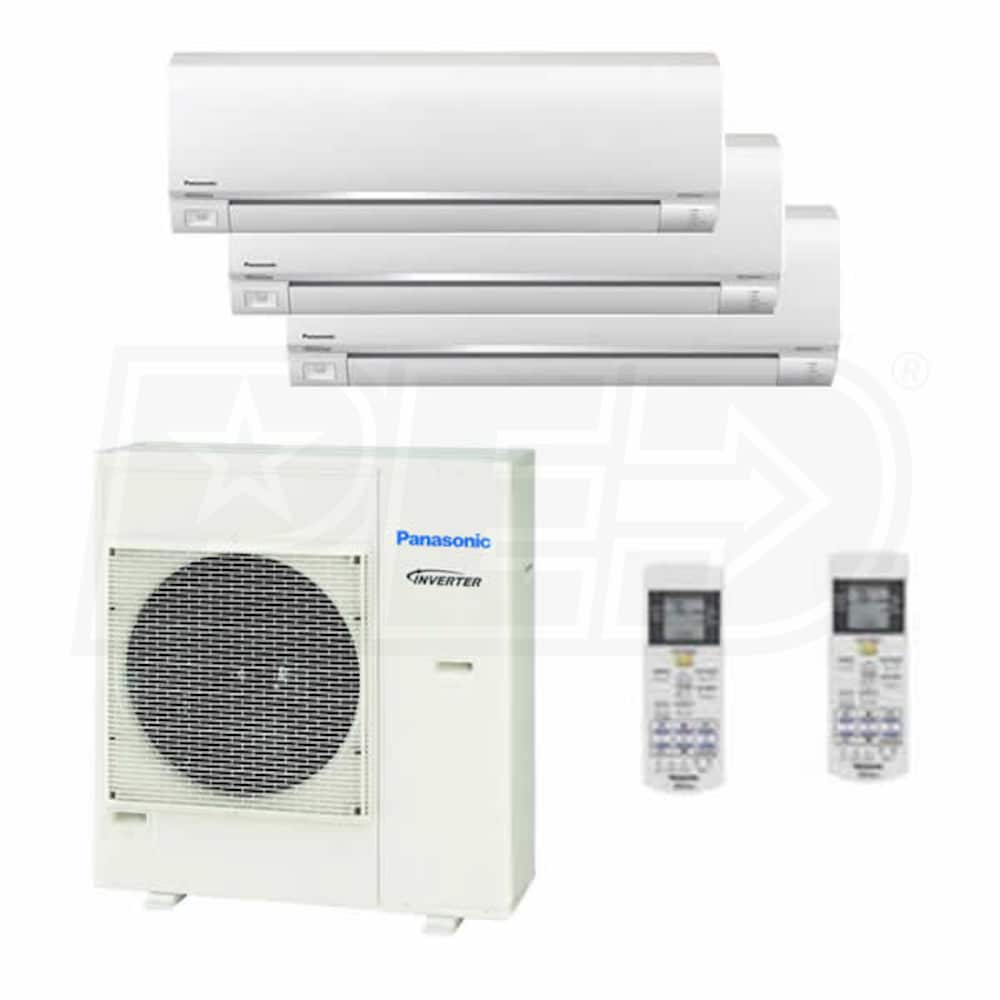

Panasonic Wall Mounted 3-Zone System - 36,000 BTU Outdoor - 7k + 12k + 18k Indoor - 18.5 SEER

Panasonic Wall Mounted 3-Zone System - 36,000 BTU Outdoor - 7k + 12k + 18k Indoor - 18.5 SEER
Our Price
Compare Prices
Shipping Info
Model: P3H36W07121800
$3,487.50

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Outdoor Unit BTU/h
Indoor Units Sizes Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Add-Ons
Free Shipping$3,487.50Buy Now
$3,487.50Visit Site
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Panasonic has over 53 years of air conditioning experience and the RAC Multi E Series mini splits are a prime example. This is a dual zone mini split system designed to give you individual control over the temperature of multiple rooms. The P3H36W07121800 has inverter technology to adjust the compressor rotation speed to maximize efficiency. Paired up with multiple indoor units that have multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Cold Resistant
  • The CU-5E36QBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.
  • Inverter Technology
  • Panasonic's inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Panasonic coats their condensers with an anti-rust coating to extend its lifespan.
  • ECONAVI
  • ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location, movements, absence and sunlight intensity.
  • Air Sweep Control
  • This function controls the louvers up and down to direct the air in a sweeping motion, providing comfort in all parts of the room.
  • Night Setback
  • This function slows down the operating speed at night to provide an even quieter unit.
  • Installation Flexibility
  • Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-5E36QBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.
  • Power Failure Automatic Restart
  • This unit will restart automatically after a power outage to avoid any potentional damage.
  • Recommended line set sizes for indoor unit connectivity:
  • CS-E12RKUAW: 1/4" x 3/8" Line Set
  • CS-E18RKUAW: 1/4" x 3/8" Line Set
  • CS-ME7RKUA: 1/4" x 3/8" Line Set
  • Product Includes
    • (1) Panasonic - 36k BTU - Outdoor Condenser - For 2-5 Zones (CU-5E36QBU-5)
    • (1) Panasonic 18k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E18RKUAW)
    • (1) Panasonic 12k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E12RKUAW)
    • (1) Panasonic 7k BTU Wall Mounted Unit - For Multi-Zone (CS-ME7RKUA)
    • (2) Panasonic 1/2" x 3/8" Port Adapter with Flare Connections (CZ-MA1P)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
Specifications
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6 + 12 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.6
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
250 Pounds
Shipping Weight
284 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
CU-5E36QBU-5 Specifications+
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
82 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
39 17/48 Inches
Product Width
37 1/48 Inches
Product Depth
13 19/48 Inches
Product Weight
183 Pounds
Shipping Height
44 3/4 Inches
Shipping Width
42 5/16 Inches
Shipping Depth
19 43/48 Inches
Shipping Weight
201 Pounds
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-E18RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
3 Pints/Hour
Maximum Air Flow
695 CFM
Minimum Air Flow
670 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
42 7/48 Inches
Product Depth
9 23/48 Inches
Product Weight
26 Pounds
Shipping Height
14 25/48 Inches
Shipping Width
45 11/16 Inches
Shipping Depth
11 13/48 Inches
Shipping Weight
31 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-E12RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
1.7 Pints/Hour
Maximum Air Flow
505 CFM
Minimum Air Flow
450 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Height
14 3/16 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
9 43/48 Inches
Shipping Weight
22 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-ME7RKUA Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Moisture Removal
.8 Pints/Hour
Maximum Air Flow
425 CFM
Minimum Air Flow
390 CFM
Minimum Sound Level
25 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Weight
25 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CZ-MA1P Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Type
Female
End 1 Connection Size
1/2 Inch
End 2 Connection Type
Male
End 2 Connection Size
3/8 Inch
Product Weight
1 Pound
Shipping Weight
1 Pound
Features
Features
    Panasonic has over 53 years of air conditioning experience and the RAC Multi E Series mini splits are a prime example. This is a dual zone mini split system designed to give you individual control over the temperature of multiple rooms. The P3H36W07121800 has inverter technology to adjust the compressor rotation speed to maximize efficiency. Paired up with multiple indoor units that have multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Cold Resistant
  • The CU-5E36QBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.
  • Inverter Technology
  • Panasonic's inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Panasonic coats their condensers with an anti-rust coating to extend its lifespan.
  • ECONAVI
  • ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location, movements, absence and sunlight intensity.
  • Air Sweep Control
  • This function controls the louvers up and down to direct the air in a sweeping motion, providing comfort in all parts of the room.
  • Night Setback
  • This function slows down the operating speed at night to provide an even quieter unit.
  • Installation Flexibility
  • Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-5E36QBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.
  • Power Failure Automatic Restart
  • This unit will restart automatically after a power outage to avoid any potentional damage.
  • Recommended line set sizes for indoor unit connectivity:
  • CS-E12RKUAW: 1/4" x 3/8" Line Set
  • CS-E18RKUAW: 1/4" x 3/8" Line Set
  • CS-ME7RKUA: 1/4" x 3/8" Line Set
  • Product Includes
    • (1) Panasonic - 36k BTU - Outdoor Condenser - For 2-5 Zones (CU-5E36QBU-5)
    • (1) Panasonic 18k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E18RKUAW)
    • (1) Panasonic 12k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E12RKUAW)
    • (1) Panasonic 7k BTU Wall Mounted Unit - For Multi-Zone (CS-ME7RKUA)
    • (2) Panasonic 1/2" x 3/8" Port Adapter with Flare Connections (CZ-MA1P)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
Specifications
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6 + 12 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.6
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
250 Pounds
Shipping Weight
284 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
CU-5E36QBU-5 Specifications+
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
82 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
39 17/48 Inches
Product Width
37 1/48 Inches
Product Depth
13 19/48 Inches
Product Weight
183 Pounds
Shipping Height
44 3/4 Inches
Shipping Width
42 5/16 Inches
Shipping Depth
19 43/48 Inches
Shipping Weight
201 Pounds
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-E18RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
3 Pints/Hour
Maximum Air Flow
695 CFM
Minimum Air Flow
670 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
42 7/48 Inches
Product Depth
9 23/48 Inches
Product Weight
26 Pounds
Shipping Height
14 25/48 Inches
Shipping Width
45 11/16 Inches
Shipping Depth
11 13/48 Inches
Shipping Weight
31 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-E12RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
1.7 Pints/Hour
Maximum Air Flow
505 CFM
Minimum Air Flow
450 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Height
14 3/16 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
9 43/48 Inches
Shipping Weight
22 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-ME7RKUA Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Moisture Removal
.8 Pints/Hour
Maximum Air Flow
425 CFM
Minimum Air Flow
390 CFM
Minimum Sound Level
25 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Weight
25 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CZ-MA1P Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Type
Female
End 1 Connection Size
1/2 Inch
End 2 Connection Type
Male
End 2 Connection Size
3/8 Inch
Product Weight
1 Pound
Shipping Weight
1 Pound
Product Specs
+
Specifications
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6 + 12 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.5
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.6
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
250 Pounds
Shipping Weight
284 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
CU-5E36QBU-5 Specifications+
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
82 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
39 17/48 Inches
Product Width
37 1/48 Inches
Product Depth
13 19/48 Inches
Product Weight
183 Pounds
Shipping Height
44 3/4 Inches
Shipping Width
42 5/16 Inches
Shipping Depth
19 43/48 Inches
Shipping Weight
201 Pounds
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-E18RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
3 Pints/Hour
Maximum Air Flow
695 CFM
Minimum Air Flow
670 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
42 7/48 Inches
Product Depth
9 23/48 Inches
Product Weight
26 Pounds
Shipping Height
14 25/48 Inches
Shipping Width
45 11/16 Inches
Shipping Depth
11 13/48 Inches
Shipping Weight
31 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-E12RKUAW Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
1.7 Pints/Hour
Maximum Air Flow
505 CFM
Minimum Air Flow
450 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Height
14 3/16 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
9 43/48 Inches
Shipping Weight
22 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CS-ME7RKUA Specifications+
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Moisture Removal
.8 Pints/Hour
Maximum Air Flow
425 CFM
Minimum Air Flow
390 CFM
Minimum Sound Level
25 dB
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Weight
25 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CZ-MA1P Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Type
Female
End 1 Connection Size
1/2 Inch
End 2 Connection Type
Male
End 2 Connection Size
3/8 Inch
Product Weight
1 Pound
Shipping Weight
1 Pound
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Panasonic Wall Mounted 3-Zone System - 36,000 BTU Outdoor - 7k + 12k + 18k Indoor - 18.5 SEER
Panasonic Heating and Cooling P3H36W07121800
+
Reset View
Panasonic Heating and Cooling P3H36W07121800
Panasonic Heating and Cooling P3H36W07121800
Panasonic Heating and Cooling P3H36W07121800
Panasonic Heating and Cooling P3H36W07121800
×
Customer Review Images
