Panasonic Heating and Cooling CU-E24RKUA
Panasonic Heating and Cooling CU-E24RKUA
Hover to zoom
1 of 1

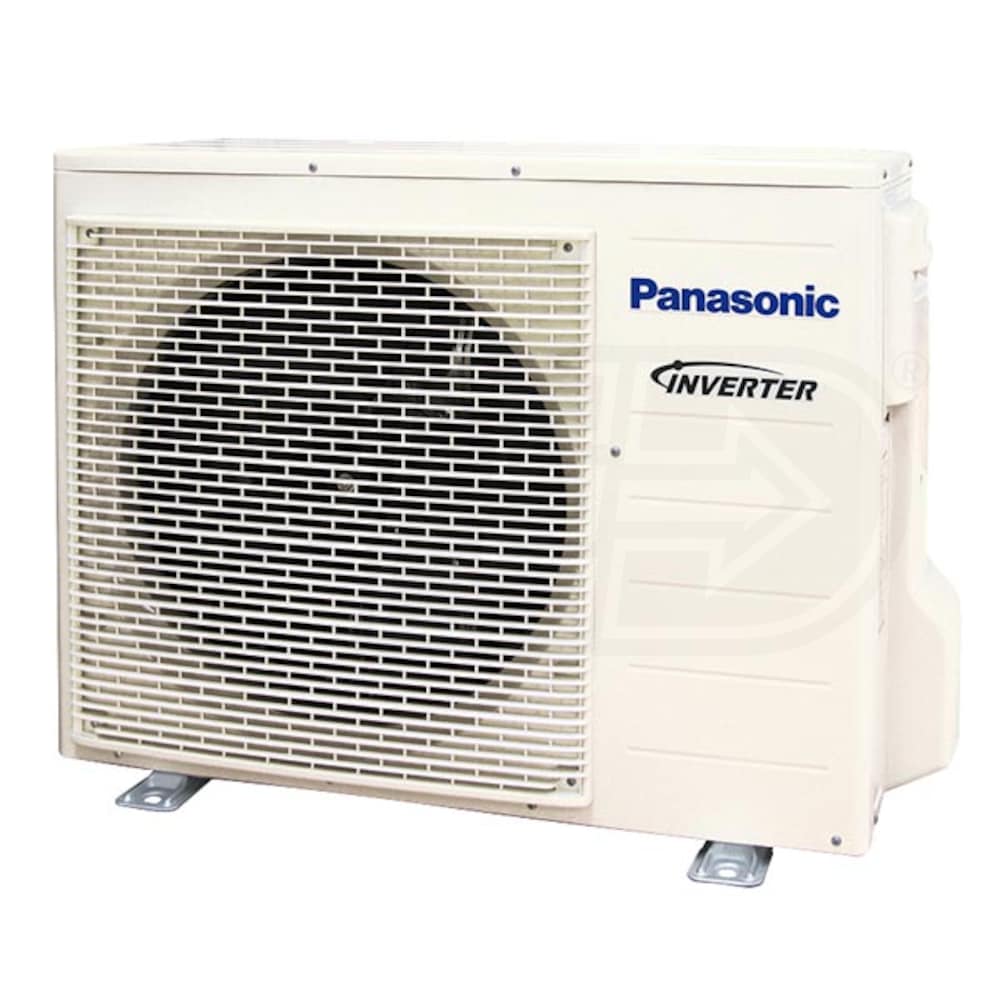

Panasonic - 24k BTU - Exterios E Outdoor Condenser - Single Zone Only

Model:

CU-E24RKUA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic - 24k BTU - Exterios E Outdoor Condenser - Single Zone Only
Panasonic - 24k BTU - Exterios E Outdoor Condenser - Single Zone Only
Model: CU-E24RKUA
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 3
$44.00
In-Stock
Length (ft)
$250.00
Only 2 In-Stock

Specifications

CU-E24RKUA
specs product image PID-62983
General Information
Type
Outdoor Condenser
Product Line
Exterios E
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
UPC
885170233843
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
31 13/48 Inches
Product Width
34 23/48 Inches
Product Depth
12 5/8 Inches
Product Weight
132 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

Reviews

Panasonic Heating and Cooling CU-E24RKUA Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

How-To Articles

How to Pick the Perfect Mini Split Ceiling Cassette Unit
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
eComfort Boosts Comfort and Energy Savings at Historic Home
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Suspended Indoor Unit
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Media Gallery

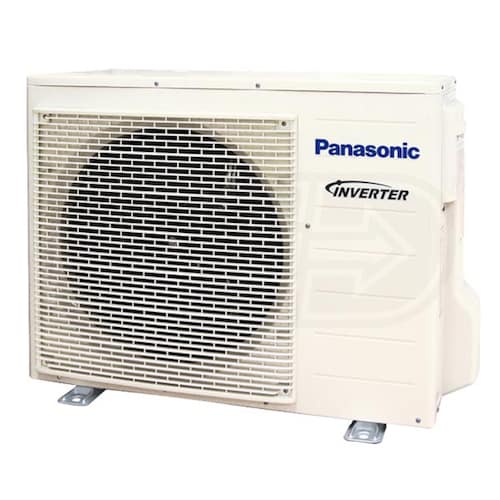

Panasonic - 24k BTU - Exterios E Outdoor Condenser - Single Zone Only
