Panasonic - 19k BTU - Outdoor Condenser - For 2-3 Zones

Panasonic - 19k BTU - Outdoor Condenser - For 2-3 Zones
Our Price
Compare Prices
Shipping Info
Model: CU-3E19RBU-5
$1,450.00
Only 1 In-Stock
Ships Monday, Oct 22nd
Free Shipping
Free Lift Gate Service -
Capacity (BTU/h) & Max Indoor Units
Add-Ons

Only 1 In-Stock
Ships Monday, Oct 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    This product requires two or more compatible indoor units for functionality.

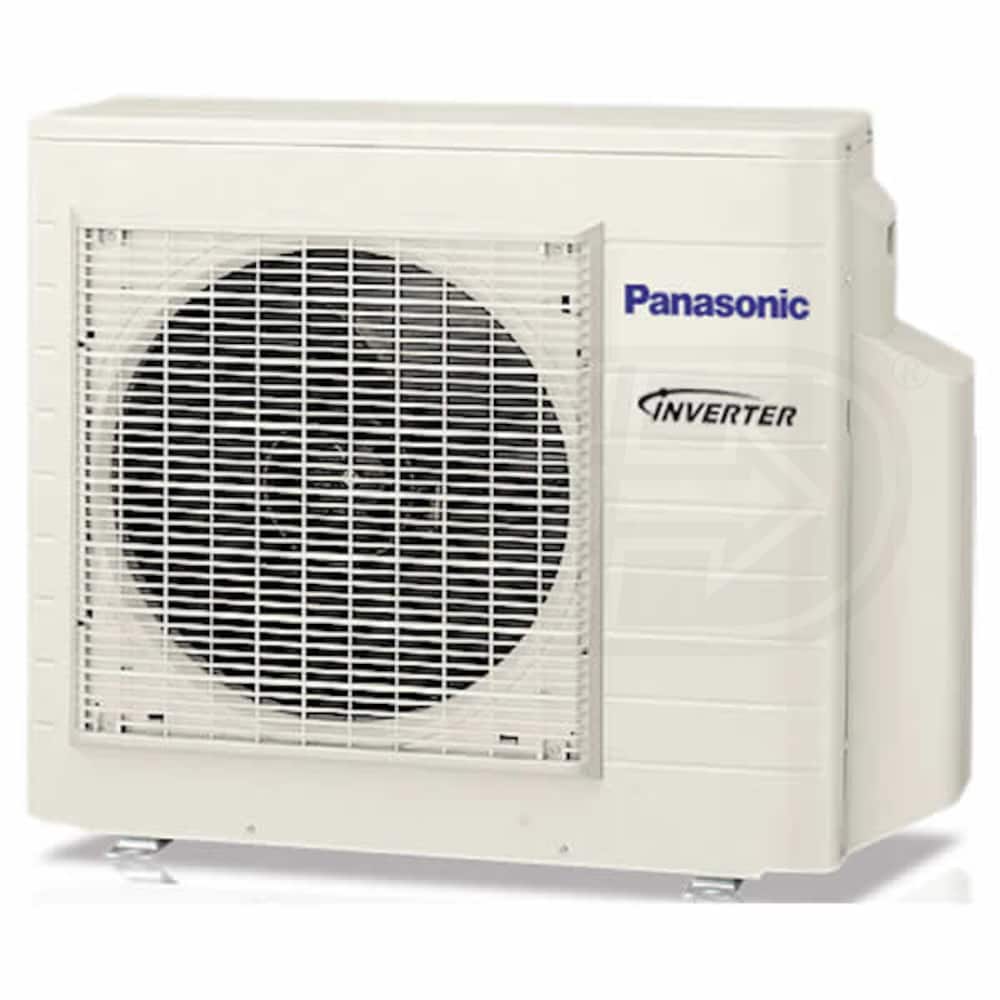

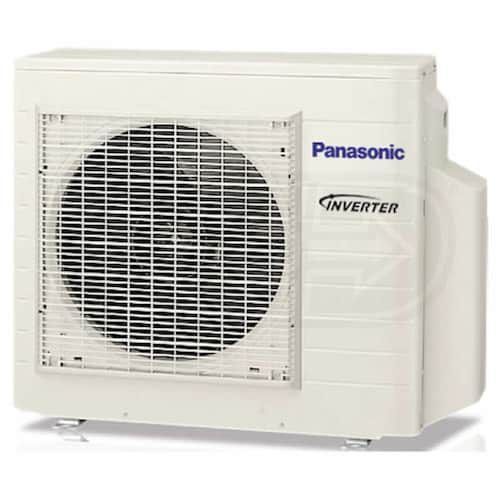

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The CU-3E19RBU-5 mini split outdoor condenser is a perfect example of Panasonic\\\'s engineering aptitude. This 19,000 BTU condenser has the ability to connect anywhere from 2 to 3 indoor units. This is the perfect solution for dealing with limited outdoor space or if you don\\\'t want to clutter the exterior of your home.
    Product Features

    Cold Resistant
    The CU-3E19RBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.

    Inverter Technology
    Panasonic\\\'s inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.

    Installation Flexibility
    Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-3E19RBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.

Specifications
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Installation Location
Outdoor
UPC
885170320574
Performance
Nominal Capacity
19000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Product Height
31.3125 Inches
Product Width
34.9375 Inches
Product Depth
12.625 Inches
Product Weight
159 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Features
Features

    This product requires two or more compatible indoor units for functionality.

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The CU-3E19RBU-5 mini split outdoor condenser is a perfect example of Panasonic\\\'s engineering aptitude. This 19,000 BTU condenser has the ability to connect anywhere from 2 to 3 indoor units. This is the perfect solution for dealing with limited outdoor space or if you don\\\'t want to clutter the exterior of your home.
    Product Features

    Cold Resistant
    The CU-3E19RBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.

    Inverter Technology
    Panasonic\\\'s inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.

    Installation Flexibility
    Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-3E19RBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.

Specifications
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Installation Location
Outdoor
UPC
885170320574
Performance
Nominal Capacity
19000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Product Height
31.3125 Inches
Product Width
34.9375 Inches
Product Depth
12.625 Inches
Product Weight
159 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Product Specs
+
Specifications
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Installation Location
Outdoor
UPC
885170320574
Performance
Nominal Capacity
19000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Product Height
31.3125 Inches
Product Width
34.9375 Inches
Product Depth
12.625 Inches
Product Weight
159 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
