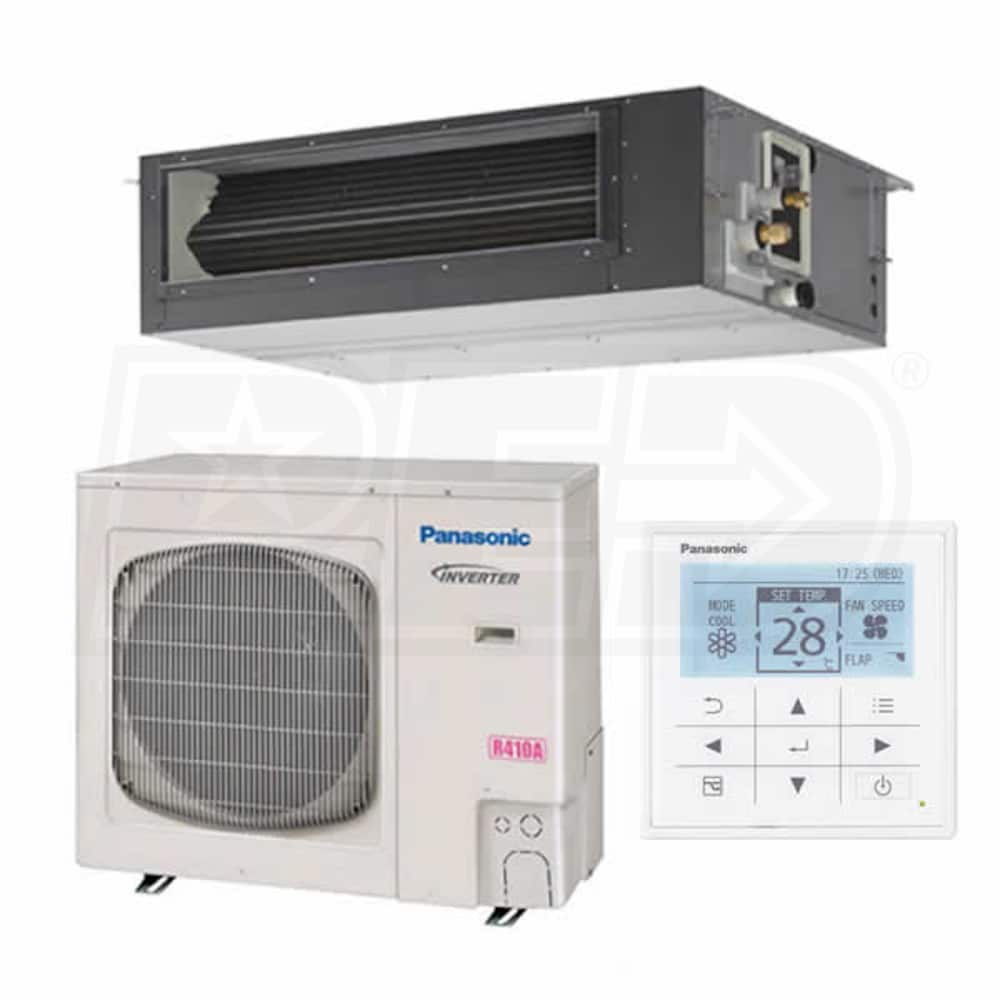

Panasonic - 36k BTU Cooling + Heating - Commercial Concealed Duct Air Conditioning System - 13.9 SEER

Model:

36PEF2U6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic - 36k BTU Cooling + Heating - Commercial Concealed Duct Air Conditioning System - 13.9 SEER
Panasonic - 36k BTU Cooling + Heating - Commercial Concealed Duct Air Conditioning System - 13.9 SEER
Model: 36PEF2U6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The 36PEF2U6 mini split concealed duct unit is a perfect example of Panasonic's engineering aptitude. This powerful 36,000 BTU concealed duct unit can produce 1,060 CFM while presenting nothing but a soft whisper sound.
  • V-Shaped Heat Exchanger
  • The 36PEF2U6 has an original V-shaped heat exchanger that provides up to 80% more surface area than your standard heat exchanger for a more efficient unit.
  • ECONAVI
  • ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location, movements, absence and sunlight intensity.
  • Static Pressure Control
  • Control the amount of static pressure needed for the length of the duct run for optimal airflow.
  • Built-in Drain Pump
  • The built-in drain pump has 27.5 feet of lift to safely drain the water out and away from your home.
  • Automatic Changeover
  • The 36PEF2U6 will automatically change from heating to cooling to keep the temperature exactly where you want it..
  • Product Includes
    • (1) Panasonic - 39k BTU - CAC Outdoor Condenser - Single Zone Only (U-36PE1U6)
    • (1) Panasonic - 36k BTU - Concealed Duct Unit - For Single-Zone (S-36PF2U6)
    • (1) Panasonic High Spec Wired Remote Controller Programmable (CZ-RTC5)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

Specifications

Product Includes
  • (1) Panasonic - 39k BTU - CAC Outdoor Condenser - Single Zone Only (U-36PE1U6)
  • (1) Panasonic - 36k BTU - Concealed Duct Unit - For Single-Zone (S-36PF2U6)
  • (1) Panasonic High Spec Wired Remote Controller Programmable (CZ-RTC5)
36PEF2U6
specs product image PID-63116
General Information
Type
Concealed Duct
Product Line
PEF-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
31200 BTU
Heating Capacity
36200 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.9
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Cooling Power Input
3920 Watts
Heating Power Input
3340 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Dimensions
Product Weight
250 Pounds
Shipping Weight
265 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
U-36PE1U6
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Installation Location
Outdoor
Performance
Cooling BTU
39000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
143 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
S-36PF2U6
General Information
Type
Concealed Duct
Product Line
PEF-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Moisture Removal
10 Pints/Hour
Maximum Air Flow
1060 CFM
Minimum Air Flow
750 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 11/48 Inches
Product Width
58 13/48 Inches
Product Depth
24 13/16 Inches
Product Weight
104 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
General Information
Type
Mini Split Controller
Programmable
Yes
Power Source
DC-16V
Interface
Digital
Dimensions
Product Height
4 35/48 Inches
Product Width
4 35/48 Inches
Product Depth
1 Inch
Product Weight
1 Pound
