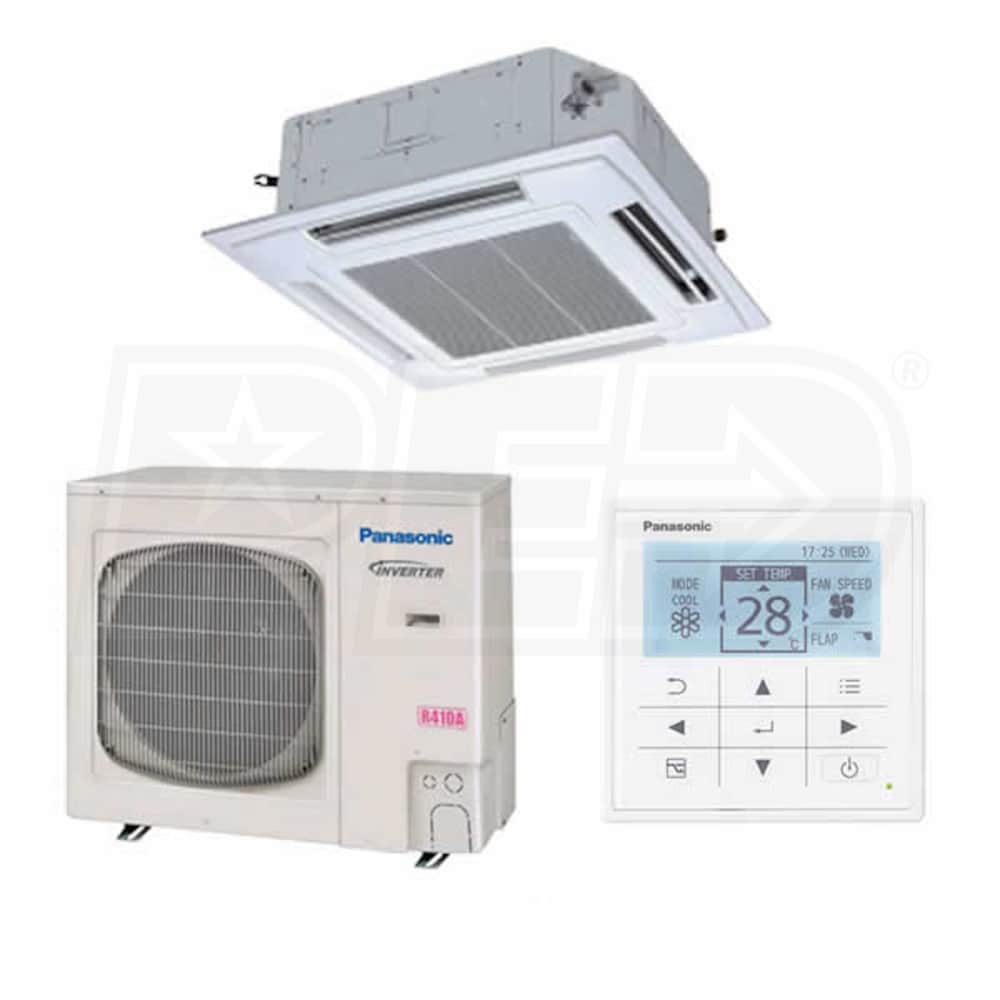

Panasonic - 26k BTU Cooling + Heating - Commercial Ceiling Cassette Air Conditioning System - 17.2 SEER
Model:
26PEU2U6
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: UC2448-3
$77.00
In-Stock
Model: MSPLTKIT-385815
Length (ft)
$337.61
In-Stock
$105.62
In-Stock
Optional Accessories
4
Model: MSCABLE144-25
$45.00
Only 3 In-Stock
Model: ASP-MW-UNI
$296.32
In-Stock
Features
- 4-Way Airflow
- Installation in the center of a room provides the best results. Since that's not always practical, the 26PEU2U6 has four louvers that allow you direct air which ever direction you desire.
- Integrated Drain Pump
- Panasonic has integrated a built-in drain pump that raises the condensate up 20 inches from pump discharge.
- Power Failure Automatic Restart
- Your preset programmed operation can be reactivated once power is restored after a power failure.
- Dry Mode
- Operation is precisely controlled according to room temperature so that the air is properly dehumidified.
- Self-Diagnosing
- The 26PEU2U6 is equipped with a self-diagnosing function that makes it easier to diagnose malfunctions and ultimately save on service labor costs.
- Automatic Heating and Cooling Changeover
- After you set the temperature and functions you desire, just relax. If the room temperature gets higher or lower the unit will adjust accordingly.
- Hot Start
- The heat pump will warm up before blowing air to prevent any cold drafts.
- (1) Panasonic - 26k BTU - CAC Outdoor Condenser - Single Zone Only (U-26PE2U6)
- (1) Panasonic - 26k BTU - Ceiling Cassette - For Single-Zone - Grille Sold Separately (S-26PU2U6)
- (1) Panasonic PEU Series - Ceiling Cassette Grille Assembly - White (CZ-36KPU3U)
- (1) Panasonic High Spec Wired Remote Controller Programmable (CZ-RTC5)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The 26PEU2U6 mini split ceiling cassette is a perfect example of Panasonic's engineering aptitude. Easily control the flow of air with Panasonic's 4-way air flow design. Simply move the louvers in the direction you want the comforting air to go. Save space with the 26PEU2U6 by installing your mini split in to the ceiling as opposed to cluttering up your wall.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
- (1) Panasonic - 26k BTU - CAC Outdoor Condenser - Single Zone Only (U-26PE2U6)
- (1) Panasonic - 26k BTU - Ceiling Cassette - For Single-Zone - Grille Sold Separately (S-26PU2U6)
- (1) Panasonic PEU Series - Ceiling Cassette Grille Assembly - White (CZ-36KPU3U)
- (1) Panasonic High Spec Wired Remote Controller Programmable (CZ-RTC5)
26PEU2U6
General Information
Type
Ceiling Cassette
Product Line
PEU-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
24800 BTU
Heating Capacity
28600 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.2
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.1
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
2730 Watts
Heating Power Input
2580 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
0 F
Minimum Outdoor Temperature for Cooling
0 F
Dimensions
Product Weight
189 Pounds
Shipping Weight
207 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes

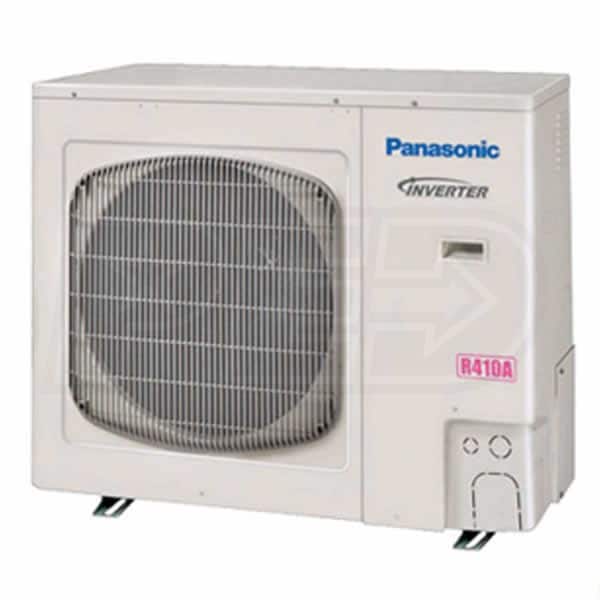

U-26PE2U6
General Information
Type
Outdoor Condenser
Product Line
PEU-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
26000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
128 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
S-26PU2U6
General Information
Type
Ceiling Cassette
Product Line
P-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Grille
Not Included
Required Grille Model
CZ-36KPU3U
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
4.6 Pints/Hour
Maximum Air Flow
777 CFM
Minimum Air Flow
494 CFM
Minimum Sound Level
28 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
33 1/12 Inches
Product Width
33 1/12 Inches
Product Depth
10 1/12 Inches
Product Weight
53 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

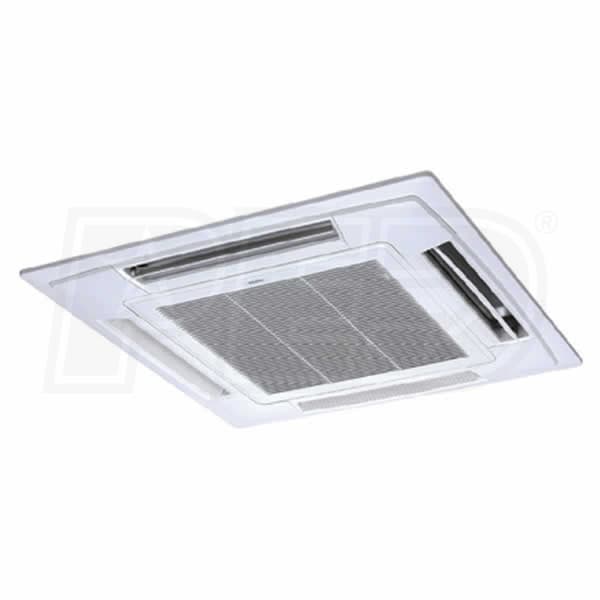

CZ-36KPU3U
General Information
Type
Ceiling Cassette Grille
Product Line
PEU-Series
Dimensions
Product Height
36 Inches
Product Width
36 Inches
Product Depth
41/48 Inch
Product Weight
5 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CZ-RTC5
General Information
Type
Mini Split Controller
Programmable
Yes
Power Source
DC-16V
Interface
Digital
Dimensions
Product Height
4 35/48 Inches
Product Width
4 35/48 Inches
Product Depth
1 Inch
Product Weight
1 Pound
