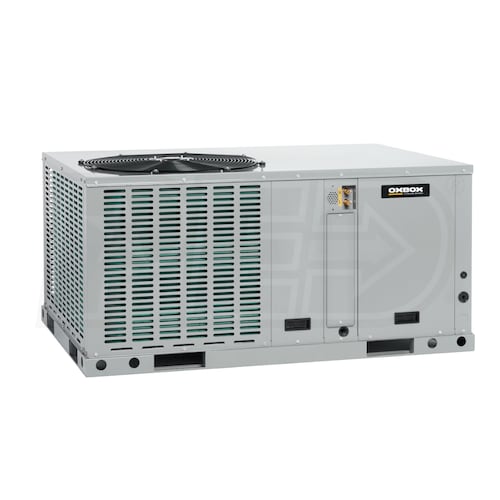

Oxbox J4PH - 3.5 Ton - Packaged Heat Pump System - 14.0 SEER - 8.0 HSPF - Horizontal - 208-230/1/60

Model:

J4PH4042A1000AA

Write A Review
$4,058.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$51 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Oxbox J4PH - 3.5 Ton - Packaged Heat Pump System - 14.0 SEER - 8.0 HSPF - Horizontal - 208-230/1/60
Oxbox J4PH - 3.5 Ton - Packaged Heat Pump System - 14.0 SEER - 8.0 HSPF - Horizontal - 208-230/1/60
Model: J4PH4042A1000AA
$4,058.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Oxbox packaged central air systems consolidate your heating and cooling equipment within a single durable steel cabinet. This packaged unit includes a heat pump and air handler to provide efficient heating or cooling to your home. The unit\\\'s high efficiency compressor is designed to operate smoothly, quietly and consistently. Internal safeguards protect the compressor against high and low pressure, coil temperature and power surge. The heat pump unit also features an architecturally compatible, anti-rust steel cabinet that has been salt spray tested for 500 hours, ensuring durability for years to come.
  • Simple Package
  • The Oxbox heat pump unit features a compressor and air handler to efficiently transfer hot and cool air to your home - all in one compact package.
  • Anti-Rust Cabinet
  • Each Oxbox packaged unit goes through a 500-hour salt spray test to ensure its durability.
  • Internal Safeguards
  • The Oxbox packaged unit features several internal safeguards that protect the compressor against high pressure, low pressure and coil temperatures.
  • High Efficiency Compressor
  • The included compressor features highly efficient and quiet operation.
  • Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

J4PH4042A1000AA
specs product image PID-110410
Overview
Product Category
Packaged HVAC Unit
General Information
Type
Heat Pump Packaged Unit
Product Line
JPH4
Product Category
Packaged HVAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Speed
Multi-Speed
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling Capacity
40500 BTU
Heating Capacity
40000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.5 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
33 1/16 Inches
Product Width
42 1/16 Inches
Product Depth
58 1/2 Inches
Product Weight
463 Pounds
Shipping Height
34 1/16 Inches
Shipping Width
42 1/4 Inches
Shipping Length
59 1/4 Inches
Shipping Weight
472 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202710877
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Years
