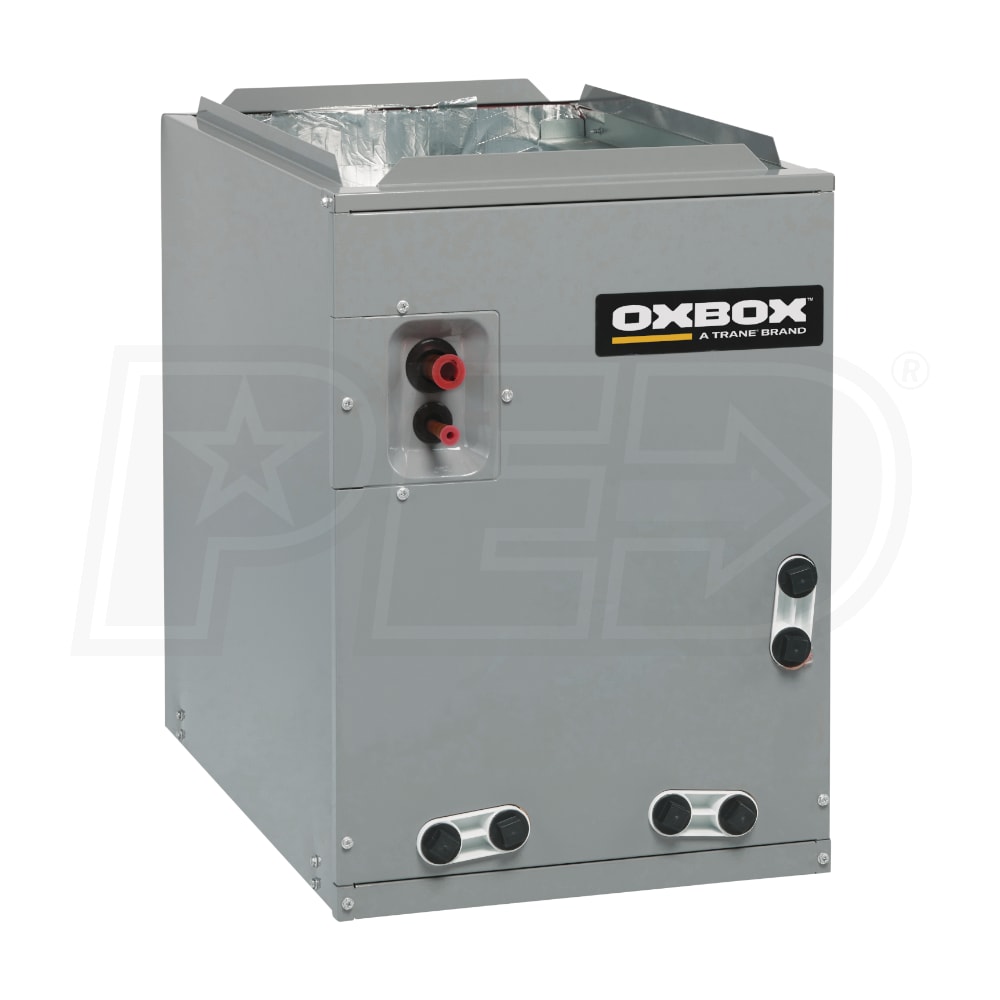

Oxbox J4MXC - 1.5 - 3.0 Ton - Multi-Position A Coil - Cased - 14.5" Width
Model:
J4MXCA003AC6HCA
+
Share This Product
Features
- Maximum Efficiency
- The Oxbox indoor coil's sole purpose is to effectively transfer the heated or cooled air from your system to your home while maximizing its efficiency.
- All-aluminum Coil
- The Oxbox indoor coil includes an all-aluminum coil for advanced heat transfer and efficiency.
- Foil-faced Insulation
- The indoor air coil feature foil-faced insulation for simple cleaning and reduced service time. The insulation traps in heated and cooled air to ensure you're getting the most out of your central air system.
- In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
Oxbox indoor air coils are designed to heat or cool your central system\'s air while maximizing the efficiency of all of its components. The all-aluminum coil design provides maximum heat transfer while its foil-faced thermal insulation ensures you won\'t be wasting energy. This multi-position coil allows for all types of installation - upflow, downflow, horizontal left and horizontal right.
Product Note
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
J4MXCA003AC6HCA
Overview
Product Category
Evaporator Coil
General Information
Type
Evaporator Coil
Product Line
J4MXC
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 - 3.0 Tons
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
14 1/2 Inches
Product Height
20 Inches
Product Width
14 1/2 Inches
Product Depth
21 Inches
Product Weight
44.1 Pounds
Shipping Height
22 1/4 Inches
Shipping Width
17 2/3 Inches
Shipping Length
24 23/24 Inches
Shipping Weight
51.4 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
