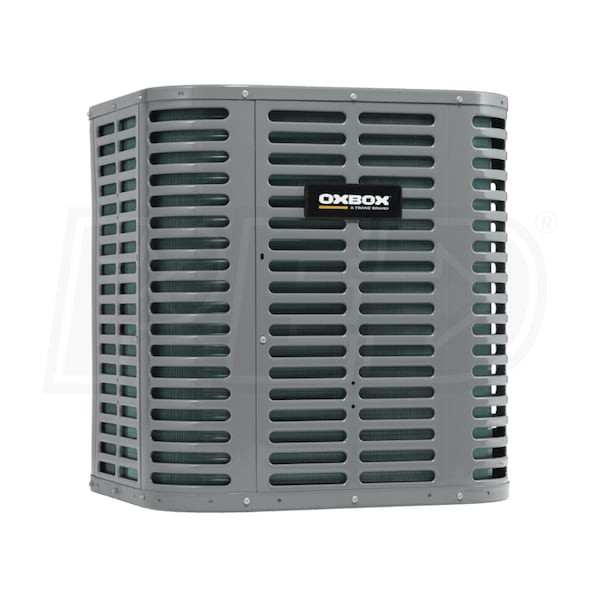

Oxbox J4HP6 - 1.5 Ton - Heat Pump - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant

Model:

J4HP6018A1000AA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Oxbox J4HP6 - 1.5 Ton - Heat Pump - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant
Oxbox J4HP6 - 1.5 Ton - Heat Pump - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant
Model: J4HP6018A1000AA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Ideal for mild climates, the Oxbox heat pump operates as an air conditioner during warm weather and provides heat when temperatures drop. The heat pump\\\'s compact size and small footprint are ideal for homeowners with limited yard space, while its painted galvanized steel cabinet resists rust and stands up to harsh weather.
  • Affordable Quality
  • Oxbox heat pumps offer powerful and dependable cooling and heating at an affordable price.
  • Small Footprint
  • With its compact size, the Oxbox heat pump is perfect for homes that have limited yard space.
  • Durable Cabinet
  • Oxbox heat pumps include a painted, galvanized steel cabinet to resist rust and stand up to weather.
  • Quiet Operation
  • With a maximum sound level of 76 dB, you'll barely notice your heat pump is running.
  • Low Voltage Control
  • The Oxbox heat pump features 24V low-voltage control, providing added safety to installation and operation.
  • Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
  • NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

J4HP6018A1000AA
specs product image PID-110375
Overview
Product Category
Heat Pump
General Information
Type
Condenser
Product Line
J4HP6
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 15/16 Inches
Product Width
23 5/8 Inches
Product Depth
23 5/8 Inches
Product Weight
137 Pounds
Shipping Height
31 1/2 Inches
Shipping Width
24 35/48 Inches
Shipping Length
24 35/48 Inches
Shipping Weight
161 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Years
