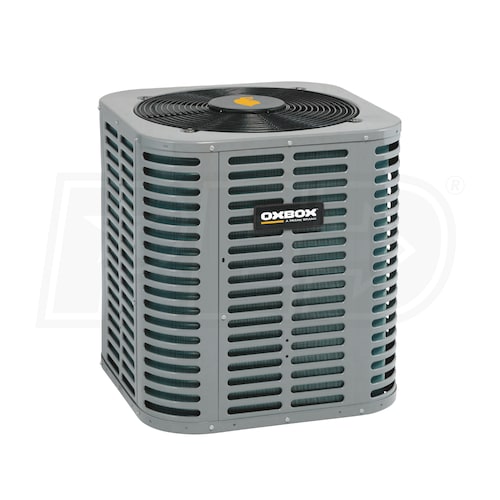

Oxbox J4AC3 - 5.0 Ton - Air Conditioner - 13.0 Nominal SEER - Single-Stage - R-410A Refrigerant

Model:

J4AC3060B1000AA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Oxbox J4AC3 - 5.0 Ton - Air Conditioner - 13.0 Nominal SEER - Single-Stage - R-410A Refrigerant
Oxbox J4AC3 - 5.0 Ton - Air Conditioner - 13.0 Nominal SEER - Single-Stage - R-410A Refrigerant
Model: J4AC3060B1000AA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Oxbox air conditioners are designed to be quiet, dependable and affordable. Tested to perform in the hottest climates, the Oxbox air conditioner is guaranteed to provide efficient cool air when you need it. The air conditioner\'s compact size and small footprint are ideal for homeowners with limited yard space, while its painted galvanized steel cabinet resists rust and stands up to harsh weather.
  • Affordable Quality
  • Oxbox air conditioners offer powerful and dependable cooling at an affordable price.
  • Small Footprint
  • With its compact size, the Oxbox air conditioner is perfect for homes that have limited yard space.
  • Durable Cabinet
  • Oxbox air conditioners include a painted, galvanized steel cabinet to resist rust and stand up to weather.
  • Quiet Operation
  • With a maximum sound level of 76 dB, you'll barely notice your air conditioner is running.
  • Low Voltage Control
  • The Oxbox air conditioner features 24V low-voltage control, providing added safety to installation and operation.
  • Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

J4AC3060B1000AA
specs product image PID-110353
Overview
Product Category
Air Conditioning Condensers
Additional Model Numbers

J4AC3060A1000AA, J4AC3060B1000AA

General Information
Type
Condenser
Product Line
J4AC3
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
76 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
29.6 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
33 3/16 Inches
Product Width
29 1/8 Inches
Product Depth
29 1/8 Inches
Product Weight
209 Pounds
Shipping Height
39 3/4 Inches
Shipping Width
30 11/48 Inches
Shipping Length
30 11/48 Inches
Shipping Weight
243 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Years
