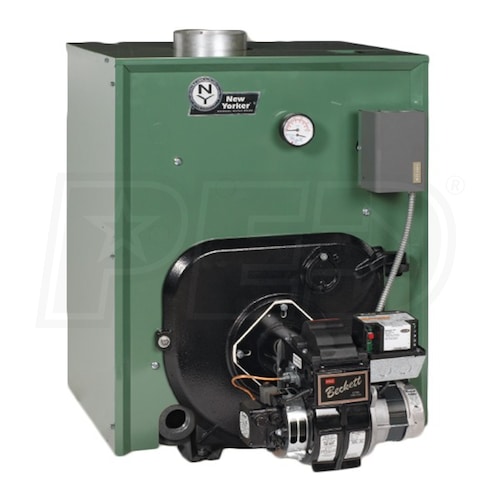

New Yorker CL4-175 - 152K BTU - 85.1% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Tankless Coil

New Yorker CL4-175 - 152K BTU - 85.1% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Tankless Coil
Our Price
Compare Prices
Shipping Info
Model: CL4-175-WT-TBB
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (4)
Write A Review
$2,919.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping

Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The CL series boiler from New Yorker is an old standby that has been proven reliable in thousands of homes. The cast iron heat exchanger is designed for efficiency, using more heat from the burned flue gases to heat your home. The internal parts are easily accessible for cleaning and maintenance, protected by an insulated metal jacket. Multiple firing rates allow the boiler to tailor its heat supply to your home's current needs, while the included Beckett AFG burner provides years of reliable oil combustion. This CL boiler includes an internal tankless DHW coil, eliminating the need for a separate water tank.
  • Cast Iron Heat Exchanger
  • The cast iron heat exchanger in the CL series boilers is designed for maximum heat transfer, saving you valuable heating dollars season after season.
  • Cast Iron Nipple Joints
  • The three sections of the heat exchanger are joined together with cast iron nipples instead of traditional rubber, providing protection against normally corrosive chemicals such as antifreeze.
  • Beckett AFG Oil Burner
  • This CI-HGS boiler comes with a Beckett AFG oil burner, a high quality, robust burner that has stood the test of time in thousands of installations all across the world.
  • Insulated Jacket
  • The insulated jacket of the CL series reduces standby heat loss inside of the boiler, increasing overall efficiency.
  • Included Tankless DHW Coil
  • This CL boiler includes an internal DHW coil, allowing the boiler to supply limitless hot water to your home.
  • Product Includes
  • New Yorker CL4-175-PWT-TBWR Boiler
  • Taco 007 Circulation Pump
  • Beckett AFG Oil Burner
  • Tankless DHW Coil
  • Product Note
    This New Yorker CL4 boiler ships as a model CL4-210 from the factory, and includes the nozzle to be field converted to the 175 firing rate.
Specifications
General Information
Product Line
CL
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
Input Rate
1.25 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
152000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
132000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.1 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
20 Gallons
Flue Connection Size
7 Inches
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
31.625 Inches
Product Width
24.625 Inches
Product Depth
22.375 Inches
Product Weight
680 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
Features
Features
    The CL series boiler from New Yorker is an old standby that has been proven reliable in thousands of homes. The cast iron heat exchanger is designed for efficiency, using more heat from the burned flue gases to heat your home. The internal parts are easily accessible for cleaning and maintenance, protected by an insulated metal jacket. Multiple firing rates allow the boiler to tailor its heat supply to your home's current needs, while the included Beckett AFG burner provides years of reliable oil combustion. This CL boiler includes an internal tankless DHW coil, eliminating the need for a separate water tank.
  • Cast Iron Heat Exchanger
  • The cast iron heat exchanger in the CL series boilers is designed for maximum heat transfer, saving you valuable heating dollars season after season.
  • Cast Iron Nipple Joints
  • The three sections of the heat exchanger are joined together with cast iron nipples instead of traditional rubber, providing protection against normally corrosive chemicals such as antifreeze.
  • Beckett AFG Oil Burner
  • This CI-HGS boiler comes with a Beckett AFG oil burner, a high quality, robust burner that has stood the test of time in thousands of installations all across the world.
  • Insulated Jacket
  • The insulated jacket of the CL series reduces standby heat loss inside of the boiler, increasing overall efficiency.
  • Included Tankless DHW Coil
  • This CL boiler includes an internal DHW coil, allowing the boiler to supply limitless hot water to your home.
  • Product Includes
  • New Yorker CL4-175-PWT-TBWR Boiler
  • Taco 007 Circulation Pump
  • Beckett AFG Oil Burner
  • Tankless DHW Coil
  • Product Note
    This New Yorker CL4 boiler ships as a model CL4-210 from the factory, and includes the nozzle to be field converted to the 175 firing rate.
Specifications
General Information
Product Line
CL
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
Input Rate
1.25 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
152000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
132000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.1 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
20 Gallons
Flue Connection Size
7 Inches
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
31.625 Inches
Product Width
24.625 Inches
Product Depth
22.375 Inches
Product Weight
680 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
Product Specs
+
Specifications
General Information
Product Line
CL
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
Input Rate
1.25 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
152000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
132000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.1 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
20 Gallons
Flue Connection Size
7 Inches
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
31.625 Inches
Product Width
24.625 Inches
Product Depth
22.375 Inches
Product Weight
680 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
