Modine VE - 15 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation

Model:

VE150C3301

Write A Review
$2,945.00
Was $3,100.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Wednesday, Feb 1st
Shipping to60601
synchrony card logo
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Modine VE - 15 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation
Modine VE - 15 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation
Model: VE150C3301
$2,945.00
Was $3,100.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

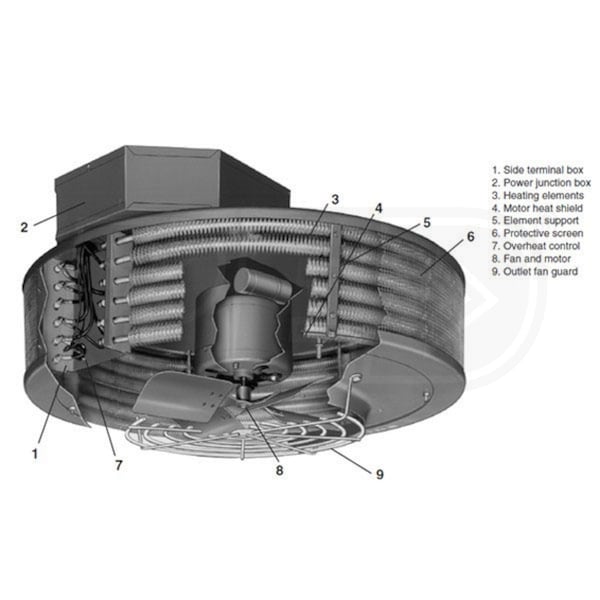

    Modine's VE150 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE150 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
  • Thermally Protected Motor
  • The air propulsion motor included on the VE150 is entirely enclosed and thermally protected. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the VE150 a notably long service life.
  • Nickel Chromium Heating Element
  • The heating element of the VE150 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration.
  • Safety Fan Guard
  • The fan guard of the VE150 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
  • Perfectly Suited for Tall Ceilings
  • The powerful fan and vertical orientation combined with its numerous louver and fin accessories make the VE150 perfectly suited to warehouse and tall ceiling heating applications.
  • Control Compartment
  • The control compartment included on the VE150 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
  • Automatic Safety Reset Control
  • In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels.
  • Baked-On Polyester Paint
  • The VE150 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product has other power configurations available for order, including:
    • 208V/60Hz/3 Phase
    • 240V/60Hz/3 Phase
    For ordering information, call our sales department at (866) 554-HEAT (4328).
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

VE150C3301
specs product image PID-48822
Overview
Product Category
Unit Heater
Additional Model Numbers

VE150B3301, VE150C3301

General Information
Type
Standard
Product Line
VE
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Suspended
Performance
Heating Capacity
51200 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
51200 BTU
Heating Capacity (kW)
15 kW
Maximum Air Flow
1340 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
18.06 Amps
Dimensions
Product Height
17 1/8 Inches
Product Width
24 7/8 Inches
Product Depth
24 7/8 Inches
Product Weight
70 Pounds
Shipping Weight
80 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
