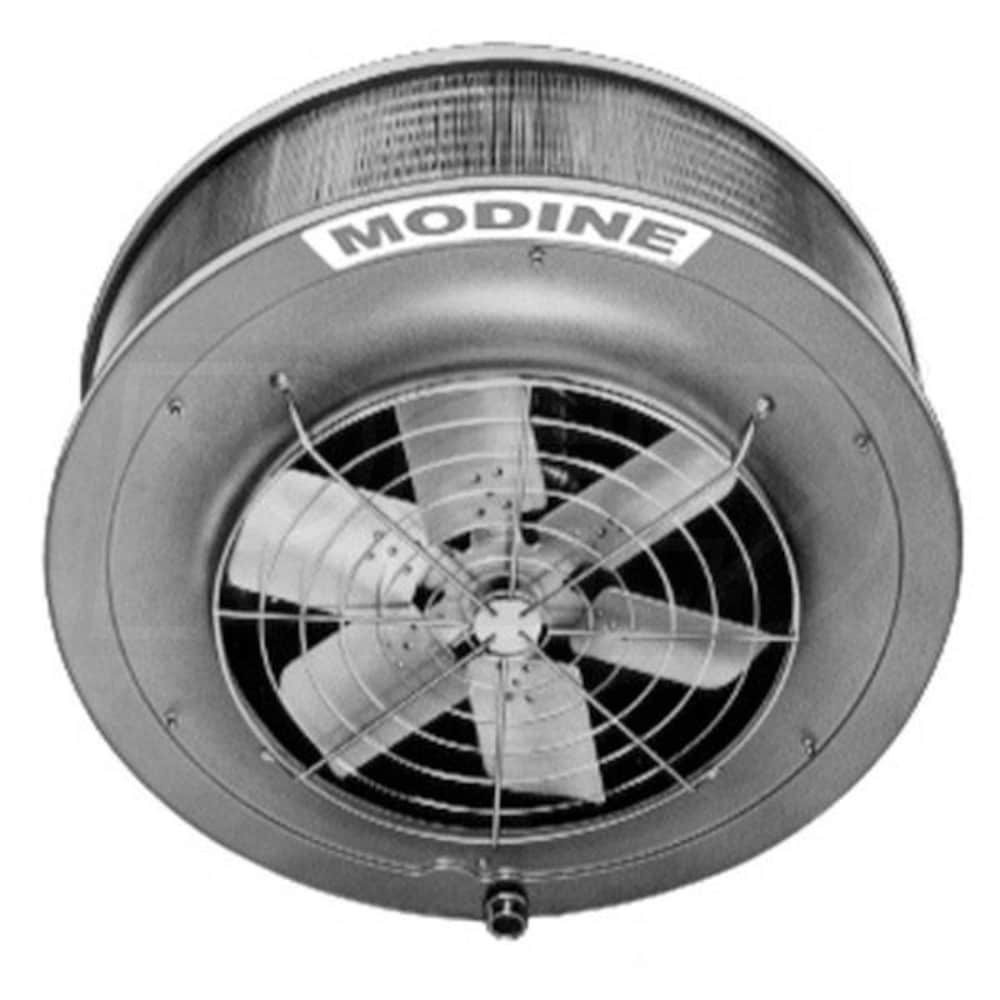

Modine V - 59,000 BTU - Hot Water/Steam Unit Heater - Vertical - Copper Heat Exchanger

Model:

V59S01

Write a Review
$713.07
Was $750.60
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$119 / Month
Suggested monthly payments with 6 month financing.
Modine V - 59,000 BTU - Hot Water/Steam Unit Heater - Vertical - Copper Heat Exchanger
Modine V - 59,000 BTU - Hot Water/Steam Unit Heater - Vertical - Copper Heat Exchanger
Model: V59S01
$713.07
Was $750.60
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Modine's V59 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The V59 can emit 59,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for vertical use, the unit heater is well suited for large warehouse use or buildings with tall ceilings. Combined with a simple wiring setup and easy to service motor, the V59 is an excellent piece of engineering that will serve any building well for years to come.
  • Motor Cooling Cone
  • The V59 comes equipped with a motor cooling cone standard. This cooling cone shields the motor from heat from the coil, extending the life of the motor and reducing routine maintenance needs.
  • Easy to Manage Wiring
  • The V59 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
  • Tapped Suspension Holes
  • The V59 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Perfectly Suited for Tall Ceilings
  • The powerful fan and vertical orientation combined with its numerous louvre and fin accessories make the V59 perfectly suited for warehouse and tall ceiling heating applications.
  • Vertical Fin Design
  • Vertical fin design on the V59 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
  • Baked-On Polyester Paint
  • The V59 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz
    For ordering information, call our sales department at (866) 554-HEAT (4328).
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

V59S01
specs product image PID-48815
General Information
Product Line
V
Medium Learn More
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type Learn More
Hydronic
Configuration Learn More
Vertical
UPC
046629180693
Performance
Maximum Input Capacity Learn More
59000 BTU
Air Throw
21 Feet
Maximum Air Flow
1155 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
24 3/4 Inches
Product Width
24 3/4 Inches
Product Depth
5 1/8 Inches
Shipping Weight
42 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
2 Years
