Product Description
+−
Features
Features
- Top and Bottom Connections
- The HSB24 has top and bottom connections for supply and return piping. These vertical connections allow the unit to be rotated 360 degrees without changing any piping configurations.
- Two Piece Casing
- A two piece casing is used with the HSB24, allowing for incredibly easy access to the coil in case maintenance is required.
- Mounts Directly To Piping
- The HSB24 mounts directly to the supply and return piping, simplifying installation and eliminating the need for additional mounting accessories. The piping provides all needed support for the unit heater.
- Thermal Shock Resistant
- The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
- Smart Coil Layout
- The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
- Baked-On Polyester Paint
- The HSB24 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz

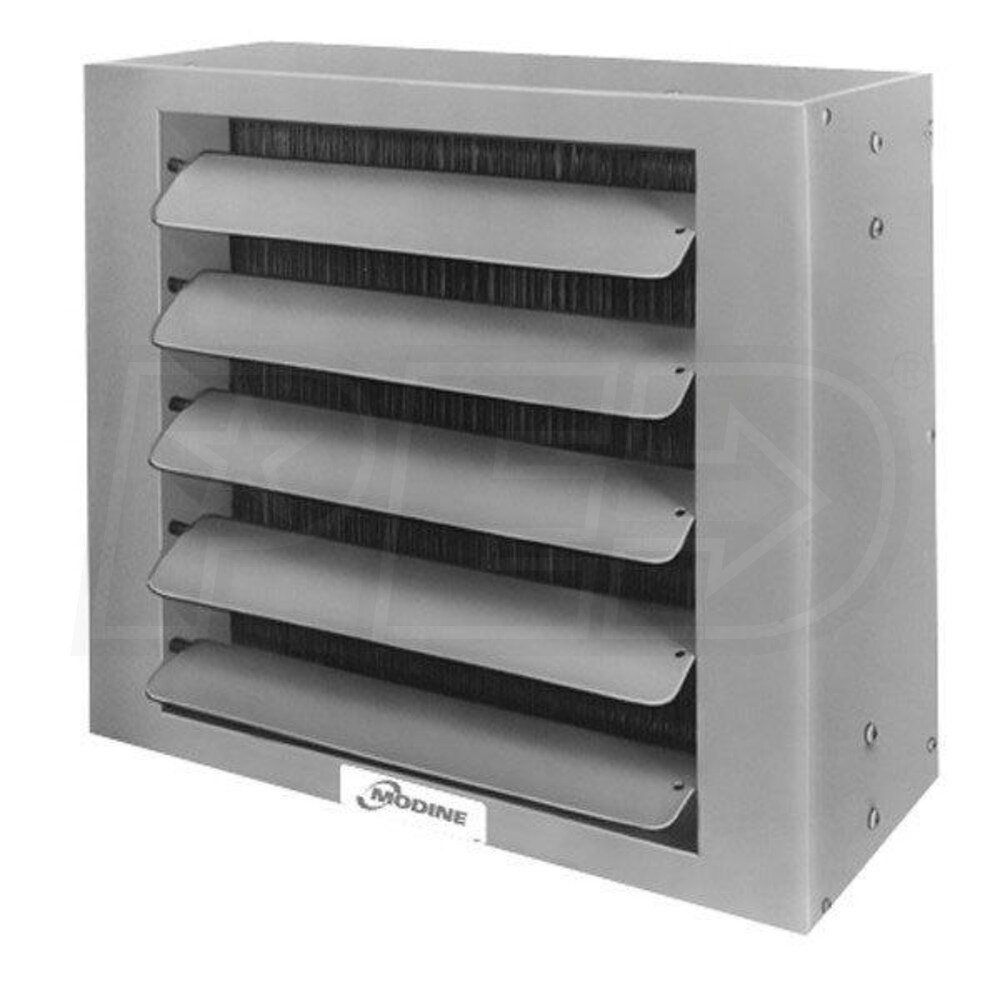

Modine's HSB24 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The HSB24 can emit 24,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is excellent for heating long corridors or blanketing walls with heat. The HSB24 has supply and return connections on the top and bottom of the unit, allowing it to be installed facing any direction.
Product Note
This product is available in multiple power configurations, including:
Specifications
General Information
Product Line
HSB
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
UPC
046629481981
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
24000 BTU
Air Throw
18 Feet
Maximum Air Flow
370 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
12 3/8 Inches
Product Width
13 Inches
Product Depth
11 Inches
Shipping Weight
20 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
- Top and Bottom Connections
- The HSB24 has top and bottom connections for supply and return piping. These vertical connections allow the unit to be rotated 360 degrees without changing any piping configurations.
- Two Piece Casing
- A two piece casing is used with the HSB24, allowing for incredibly easy access to the coil in case maintenance is required.
- Mounts Directly To Piping
- The HSB24 mounts directly to the supply and return piping, simplifying installation and eliminating the need for additional mounting accessories. The piping provides all needed support for the unit heater.
- Thermal Shock Resistant
- The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
- Smart Coil Layout
- The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
- Baked-On Polyester Paint
- The HSB24 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
Modine's HSB24 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The HSB24 can emit 24,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is excellent for heating long corridors or blanketing walls with heat. The HSB24 has supply and return connections on the top and bottom of the unit, allowing it to be installed facing any direction.
Product Note
This product is available in multiple power configurations, including:
Specifications
General Information
Product Line
HSB
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
UPC
046629481981
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
24000 BTU
Air Throw
18 Feet
Maximum Air Flow
370 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
12 3/8 Inches
Product Width
13 Inches
Product Depth
11 Inches
Shipping Weight
20 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+−
Specifications
General Information
Product Line
HSB
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
UPC
046629481981
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
24000 BTU
Air Throw
18 Feet
Maximum Air Flow
370 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
12 3/8 Inches
Product Width
13 Inches
Product Depth
11 Inches
Shipping Weight
20 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
