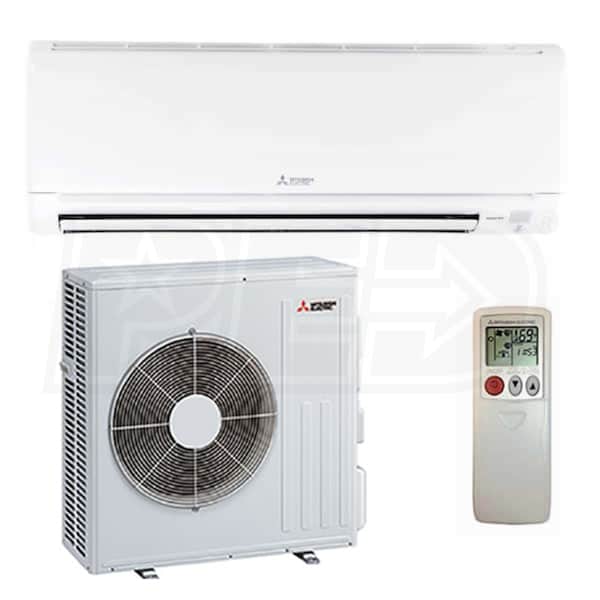

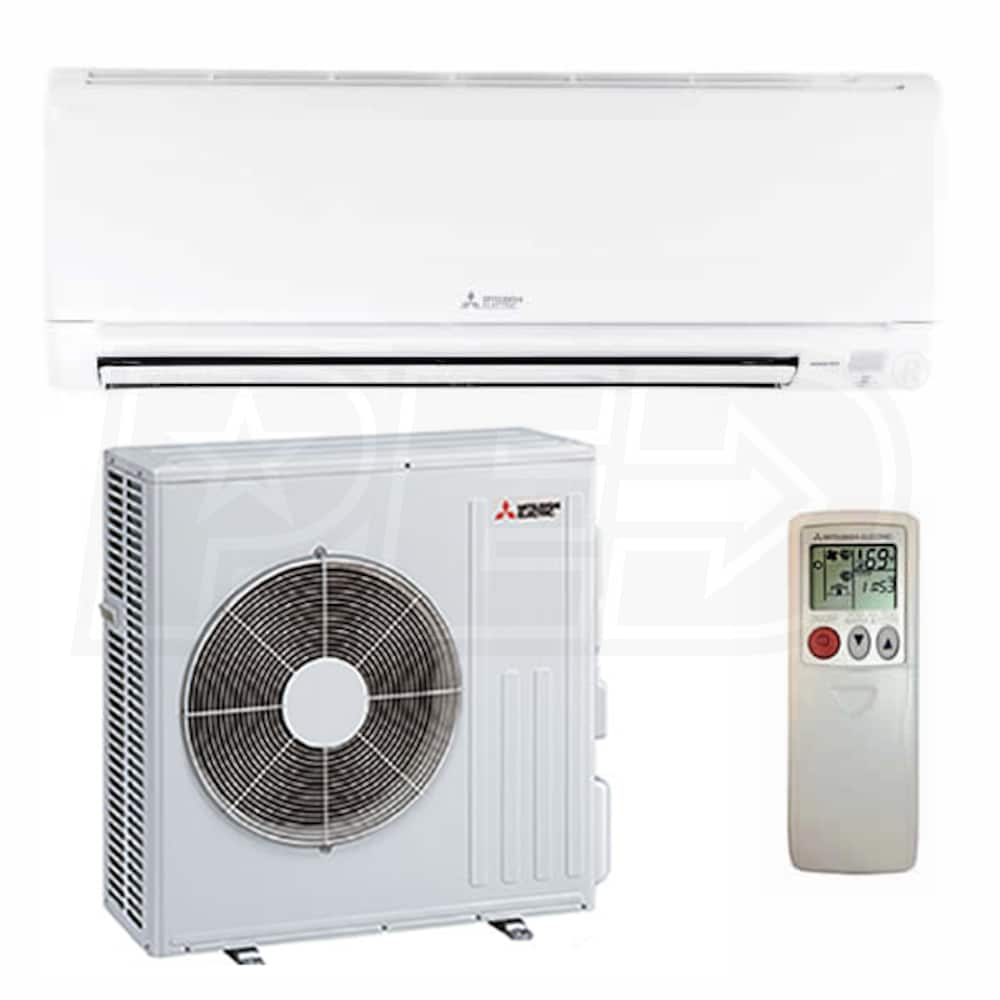

Mitsubishi - 24k BTU Cooling + Heating - M-Series Wall Mounted Air Conditioning System - 20.5 SEER

Model:

MZ-GL24NA

Write a Review
$2,576.25
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Mitsubishi - 24k BTU Cooling + Heating - M-Series Wall Mounted Air Conditioning System - 20.5 SEER
Mitsubishi - 24k BTU Cooling + Heating - M-Series Wall Mounted Air Conditioning System - 20.5 SEER
Model: MZ-GL24NA
$2,576.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Mitsubishi is committed to achieving total customer satisfaction and year after year they do just that. The MZ-GL24NA is backed by a 5 year parts and 7 year compressor warranty to show you they stand by their product. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any heating or cooling application.
  • Advanced Filtration System
  • The MSZ-GL24NA-U1 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GL24NA-U1 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.
  • Product Includes
    • (1) Mitsubishi - 24k BTU - GL-Series Outdoor Condenser - Single Zone Only (MUZ-GL24NA-U2)
    • (1) Mitsubishi GL-Series 24k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL24NA-U1)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 24k BTU - GL-Series Outdoor Condenser - Single Zone Only (MUZ-GL24NA-U2)
  • (1) Mitsubishi GL-Series 24k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL24NA-U1)
MZ-GL24NA
specs product image PID-65351
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
27600 BTU
SEER Learn More
20.5
EER Learn More
12.5
HSPF Learn More
10.0
Cooling Power Input
1800 Watts
Heating Power Input
2340 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
156 Pounds
Shipping Weight
160 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8715786
MUZ-GL24NA-U2
General Information
Type
Outdoor Condenser
Product Line
GL-Series
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 5/8 Inches
Product Width
36 1/4 Inches
Product Depth
13 Inches
Product Weight
119 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
MSZ-GL24NA-U1
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
5.1 Pints/Hour
Maximum Air Flow
738 CFM
Minimum Air Flow
388 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
53 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 13/16 Inches
Product Width
43 5/16 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Shipping Weight
42 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years

Reviews

(48)
Mitsubishi MZ-GL24NA Reviews & Ratings

Product Q&A

(5)
Product Questions Answered by Chris, the eComfort Product Expert
Can you show the decibels, this is not a repair question
Marie
from Connecticut
July 03, 2019
Does the unit automatically shut off once the set temperature is reached, or does it just run constantly?
Lindsay
from Texas
July 30, 2016
Does the unit have the ability to dehumidify without cooling? I'm looking at a possible install in my basement, where it can get hot in the summer, but sometimes it's just too humid. I'd like if I don't have to keep a separate dehumidifier too.
Anthony
from Pennsylvania
July 20, 2016
Is this unit, along with other M series units, pre charged with the refrigerant?
Bill M.
from Massachusetts
July 15, 2016
If I put the remote control on my night stand, then, will the remote take a temperature reading at the night stand and run the indoor unit until the remote is satisfied?
Jon
from Washington
April 27, 2016
