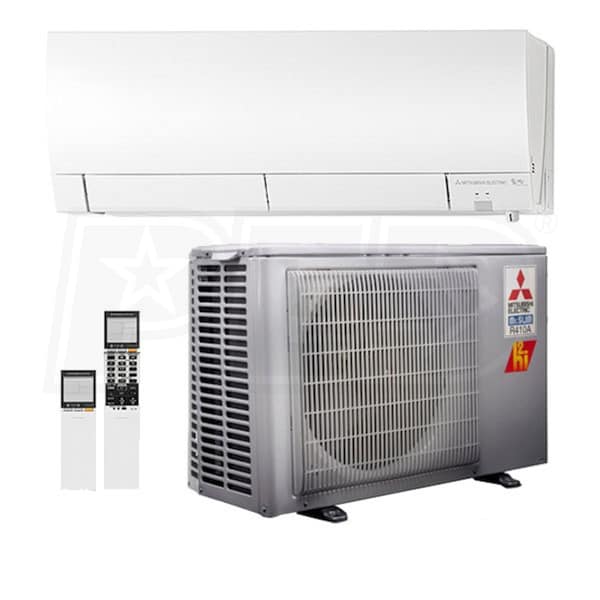

Mitsubishi - 6k BTU Cooling + Heating - M-Series H2i Wall Mounted Air Conditioning System w/ Base Pan Heater
Model:
MZ-FH06NAH
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Precision Temperature Control Technology
- The MUZ-FH06NAH condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the unit matches output to the zone for precise temperature control and improved efficiency.
- i-see Sensor 3D
- The sensor monitors the floor and ceiling of its zone for occupancy and fluctuations in temperature. If it detects an underserved area, the unit will temporarily adjust airflow. If it doesn't find human heat signatures, it will enter energy saving mode.
- H2i Technology
- Low or negative ambient temperatures don't bother the MUZ-FH06NAH. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
- Advanced Filtration System
- A catalyst-coated filter is the first defense against odors. A second deodorizing filter utilizes a ceramic surface element and platinum nanoparticles to absorb smells. An enzyme-based anti-allergy filter captures and destroys bacteria and particulates.
- Integrated Base Pan Heater
- The factory-installed base pan heater prevents condensate from freezing and damaging the unit in frigid climates as well as saving you time and money from costs accumulated by an installer adding a base pan heater later.
- Smart Set
- Smart Set allows you to save cooling and heating profiles, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a single press of the Smart Set button on the remote controller.
- Dehumidification
- When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- (1) Mitsubishi - 6k BTU - FH-Series H2i Outdoor Condenser w/ Base Pan Heater - Single Zone Only (MUZ-FH06NAH)
- (1) Mitsubishi FH-Series 6k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH06NA)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the MZ-FH06NAH is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned comfort to homes in frigid climates. In particular, unlike the MZ-FH06NA the MZ-FH06NAH brings the added benefit of a factory-installed base pan heater that prevents damage to the unit. The wall mounted indoor unit, MSZ-FH06NA, boasts a functional design, and operates at volumes as low as 20 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller and base pan heater factory installed, this system is the perfect combination of convenience and comfort for any application in a sub-freezing environment.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
- (1) Mitsubishi - 6k BTU - FH-Series H2i Outdoor Condenser w/ Base Pan Heater - Single Zone Only (MUZ-FH06NAH)
- (1) Mitsubishi FH-Series 6k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH06NA)
MZ-FH06NAH
General Information
Type
Wall Mounted
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Base Pan Heater Included
Yes
Outdoor Unit Size
6000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Heating Capacity
8700 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
33.1
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
12.5
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
110 Pounds
Shipping Weight
114 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8797132
MUZ-FH06NAH
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
6000
Cooling Capacity
9000 BTU
Heating BTU
14000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11 Amps
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
81 Pounds
Shipping Weight
88 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FH06NA
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Maximum Air Flow
381 CFM
Minimum Air Flow
137 CFM
Minimum Sound Level
20 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Shipping Weight
36 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
