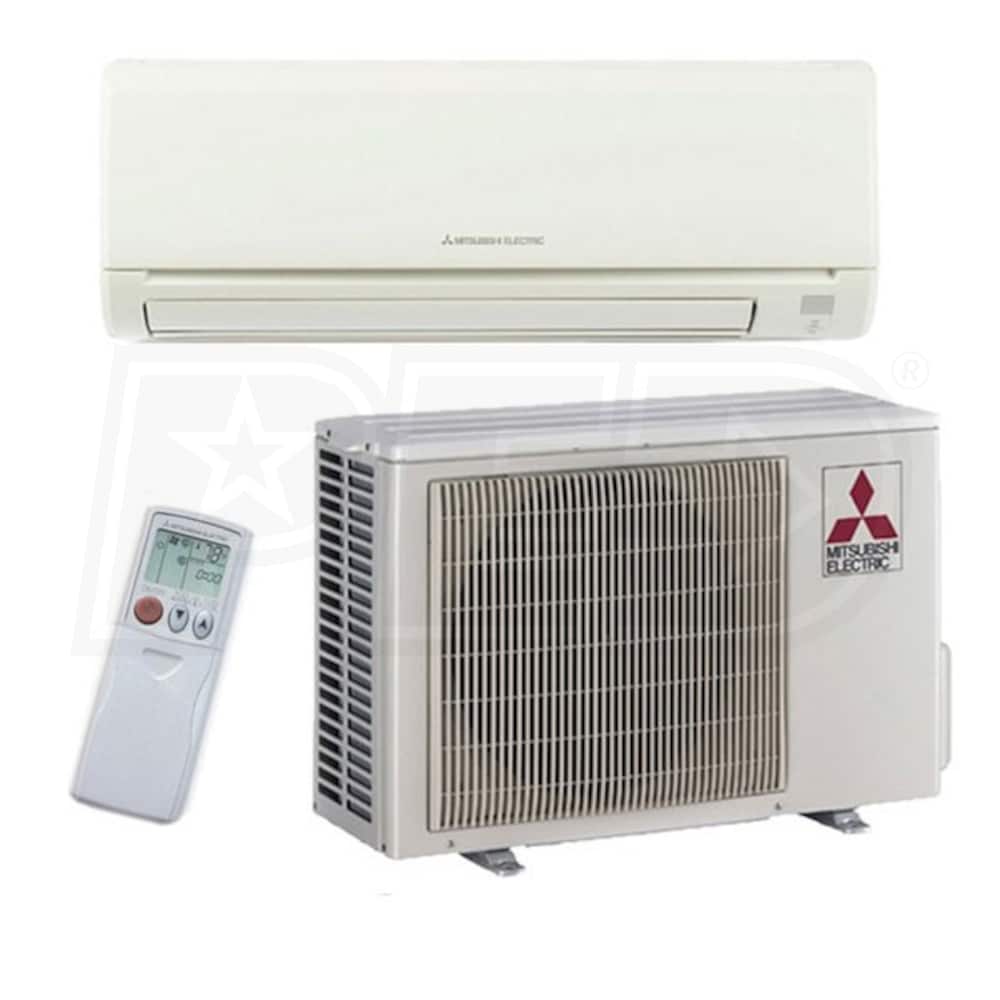

Mitsubishi - 36k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 15.1 SEER

Mitsubishi - 36k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 15.1 SEER
Our Price
Compare Prices
Shipping Info
Model: MY-D36NA-1
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (3)
Write A Review
$3,472.00
$3,124.80
In-Stock
Ships Wednesday, Dec 12th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
System BTU/h
Add-Ons

In-Stock
Ships Wednesday, Dec 12th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Arizona, California, New Mexico, Nevada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MY-D36NA-1 is a packaged single zone air conditioner mini split system designed to bring powerful cooling to any room in your home. The wall mounted indoor unit, MSY-D36NA-8, boasts a functional design, and operates at volumes as low as 32 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any cooling application.
  • Precision Temperature Control Technology
  • The MUY-D36NA-1 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Advanced Filtration System
  • The MSY-D36NA-8 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Powerful Mode
  • The powerful setting on the MSY-D36NA-8 makes it easy to get your zone to the perfect temperature quickly. When activated, the unit temporarily decreases the temperature and increases fan speed to provide rapid cooling and quick comfort.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-D36NA-8 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MSY-D36NA-8 thanks to two vane control options, standard and wide. Auto mode selects the best vane position based on operating mode while swing mode cycles through each vane position.
  • Product Includes
    • (1) Mitsubishi - 36k BTU - D-Series Cooling Only Outdoor Condenser - Single Zone Only (MUY-D36NA-1)
    • (1) Mitsubishi D-Series Cooling Only 36k BTU Wall Mounted Unit - For Single-Zone (MSY-D36NA-8)
    Product Note
    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
36
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling Capacity
34600 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.2
Cooling Power Input
4240 Watts
Dimensions
Product Weight
166 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3059262
MUY-D36NA-1 Specifications
General Information
Type
Outdoor Condenser
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
36000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
56 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
100 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
33 7/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
126 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSY-D36NA-8 Specifications
General Information
Type
Wall Mounted Unit
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
36000 BTU
Moisture Removal
11.9 Pints/Hour
Minimum Air Flow
389 CFM
Maximum Air Flow
887 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
14 3/8 Inches
Product Width
46 1/16 Inches
Product Depth
11 5/8 Inches
Product Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MY-D36NA-1 is a packaged single zone air conditioner mini split system designed to bring powerful cooling to any room in your home. The wall mounted indoor unit, MSY-D36NA-8, boasts a functional design, and operates at volumes as low as 32 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any cooling application.
  • Precision Temperature Control Technology
  • The MUY-D36NA-1 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Advanced Filtration System
  • The MSY-D36NA-8 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Powerful Mode
  • The powerful setting on the MSY-D36NA-8 makes it easy to get your zone to the perfect temperature quickly. When activated, the unit temporarily decreases the temperature and increases fan speed to provide rapid cooling and quick comfort.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-D36NA-8 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MSY-D36NA-8 thanks to two vane control options, standard and wide. Auto mode selects the best vane position based on operating mode while swing mode cycles through each vane position.
  • Product Includes
    • (1) Mitsubishi - 36k BTU - D-Series Cooling Only Outdoor Condenser - Single Zone Only (MUY-D36NA-1)
    • (1) Mitsubishi D-Series Cooling Only 36k BTU Wall Mounted Unit - For Single-Zone (MSY-D36NA-8)
    Product Note
    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
36
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling Capacity
34600 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.2
Cooling Power Input
4240 Watts
Dimensions
Product Weight
166 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3059262
MUY-D36NA-1 Specifications
General Information
Type
Outdoor Condenser
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
36000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
56 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
100 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
33 7/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
126 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSY-D36NA-8 Specifications
General Information
Type
Wall Mounted Unit
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
36000 BTU
Moisture Removal
11.9 Pints/Hour
Minimum Air Flow
389 CFM
Maximum Air Flow
887 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
14 3/8 Inches
Product Width
46 1/16 Inches
Product Depth
11 5/8 Inches
Product Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
36
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling Capacity
34600 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.2
Cooling Power Input
4240 Watts
Dimensions
Product Weight
166 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3059262
MUY-D36NA-1 Specifications
General Information
Type
Outdoor Condenser
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
36000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
56 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
100 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
33 7/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
126 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSY-D36NA-8 Specifications
General Information
Type
Wall Mounted Unit
Product Line
D-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
36000 BTU
Moisture Removal
11.9 Pints/Hour
Minimum Air Flow
389 CFM
Maximum Air Flow
887 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
14 3/8 Inches
Product Width
46 1/16 Inches
Product Depth
11 5/8 Inches
Product Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(3)
+
Mitsubishi MY-D36NA-1 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Does this unit heat and cool, and is it pre-charged with refrigerant?
Jim
from New Jersey
November 16, 2015
Answer
This is a cooling only model, and will not provide heat. Those systems that support both cooling + heating will have "Heat Pump" in their name rather than "Air Conditioning".

Mitsubishi single zone air conditioners will come pre-charged with enough R-410a refrigerant for up to 25' of lineset. The system will need to be purged and vacuumed prior to releasing the refrigerant. If the pipe length exceeds 25', your installer will need to add additional refrigerant.
+
Can the indoor unit be controlled by a wired thermostat?
Rex
from California
November 11, 2015
Answer
You can control the indoor unit with the Mitsubishi RedLINK - Wireless Remote Controller Kit #MHK1. I have attached the link for the thermostat below.

MHK1 Thermostat
+
How many hours should it take to install this unit in a sunroom that is under construction?
Jim
from North Carolina
September 10, 2015
Answer
A basic installation without any obstructions or complications can take as little as 4 hours to complete. Keep in mind that I've never seen your sunroom, so you should definitely have this conversation with your contractor!
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Mitsubishi - 36k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 15.1 SEER
Mitsubishi MY-D36NA-1
+
Reset View
Mitsubishi MY-D36NA-1
Mitsubishi MY-D36NA-1
Mitsubishi MY-D36NA-1
Mitsubishi MY-D36NA-1
×
Customer Review Images

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
