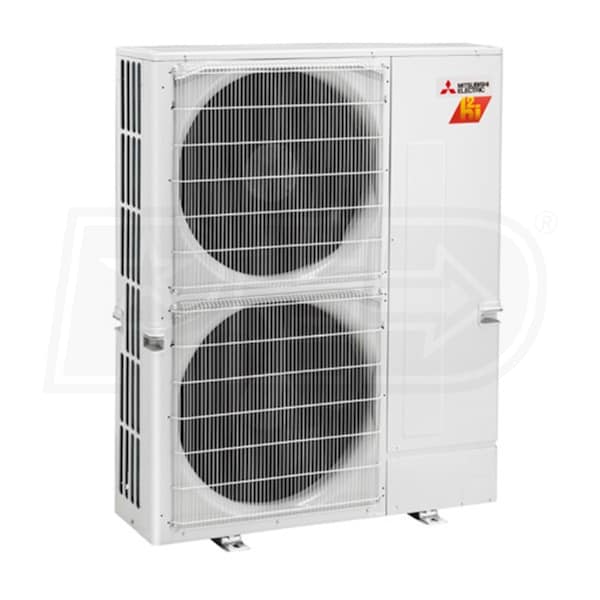

Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones

Model:

MXZ-8C48NAHZ

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones
Model:
MXZ-SM48NAMHZ
$6,282.75
$5,927.25
In-Stock
Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones
Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones
Model: MXZ-8C48NAHZ
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-8C48NAHZ is an H2i hyper-heating outdoor condenser for multi-zone mini split applications in freezing climates. It supports up to eight indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units, efficiency-boosting inverter technology, and heating capabilities that withstand some of the coldest conditions, the MXZ-8C48NAHZ is a smart addition for nearly any home.
  • H2i Technology
  • Low and negative ambient temperatures don't bother the MXZ-8C48NAHZ. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
  • Precision Temperature Control Technology
  • This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components provide precise temperature control and incredible efficiency.
  • Integrated Base Pan Heater
  • MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Mix and Match
  • The MXZ-8C48NAHZ is compatible with more than two dozen different indoor units. It even works with the advanced MSZ-FH indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
  • Product Compatible With
  • Mitsubishi MSZ-GL Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-FE Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MSZ-FH Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MFZ-KA Floor Standing Mini Split Indoor Units
  • Mitsubishi SEZ-KD Concealed Duct Mini Split Indoor Units
  • Mitsubishi SLZ-KA Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PLA-A12BA4 Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PLA-A18BA4 Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PLA-A24BA4 Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PEAD-A24AA4 Concealed Duct Mini Split Indoor Units
  • Product Note
    This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
    • Branch Box - A Mitsubishi PAC-MKA30BC or PAC-MKA50BC branch box is required to connect the refrigerant and power lines from the outdoor condenser to the indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

MXZ-8C48NAHZ
specs product image PID-30757
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Base Pan Heater Included
Yes
UPC
818271682340
Performance
Cooling BTU
48000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42 Amps
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
14 Inches
Product Weight
276 Pounds
Shipping Weight
286 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
