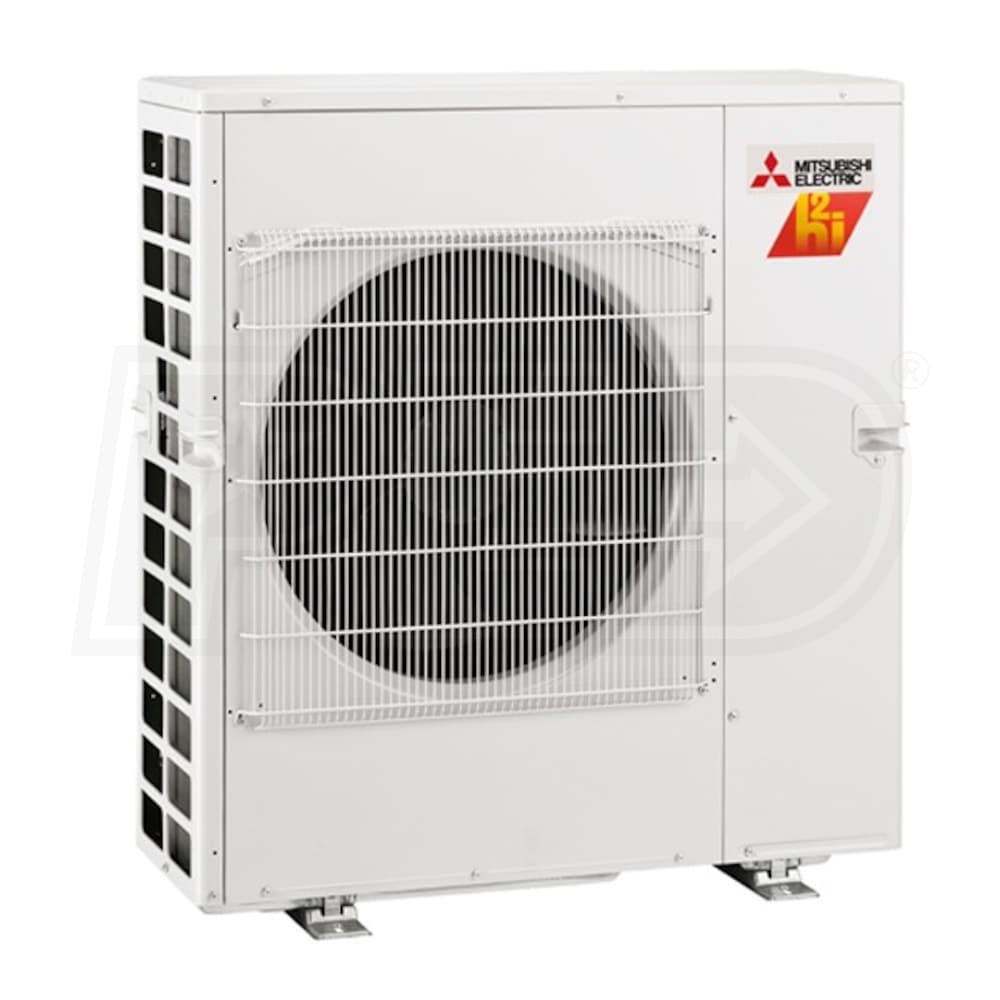

Mitsubishi - 20k BTU - M-Series H2i Outdoor Condenser - For 2 Zones

Model:

MXZ-2C20NAHZ

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi - 20k BTU - M-Series H2i Outdoor Condenser - For 2 Zones
Mitsubishi - 20k BTU - M-Series H2i Outdoor Condenser - For 2 Zones
Model: MXZ-2C20NAHZ
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires two or more compatible indoor units for functionality.

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-2C20NAHZ is an H2i hyper-heating outdoor condenser for multi-zone mini split applications in freezing climates. It supports two indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units, efficiency-boosting inverter technology, and heating capabilities that withstand some of the coldest conditions, the MXZ-2C20NAHZ is a smart addition for nearly any home.

    Product Features

    H2i Technology
    Low and negative ambient temperatures don't bother the MXZ-2C20NAHZ. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.

    Precision Temperature Control Technology
    This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components match the output of the condenser to the active zones. This provides precise temperature control and incredible efficiency.

    Integrated Base Pan Heater
    MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.

    Mix and Match
    The MXZ-2C20NAHZ is compatible with more than a dozen different indoor units, including ceiling cassette models, concealed duct models, floor standing models, and wall mounted models. It even works with the advanced MSZ-FH indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.

    Product Compatible With
    • Mitsubishi MSZ-GL06NA-U1 Wall Mounted Mini Split Indoor Units
    • Mitsubishi MSZ-GL09NA-U1 Wall Mounted Mini Split Indoor Units
    • Mitsubishi MSZ-GL12NA-U1 Wall Mounted Mini Split Indoor Units
    • Mitsubishi MSZ-GL15NA-U1 Wall Mounted Mini Split Indoor Units
    • Mitsubishi MSZ-FE09NA-8 Wall Mounted Hyper-Heating Mini Split Indoor Units
    • Mitsubishi MSZ-FE12NA-8 Wall Mounted Hyper-Heating Mini Split Indoor Units
    • Mitsubishi MSZ-FH Wall Mounted Hyper-Heating Mini Split Indoor Units
    • Mitsubishi MFZ-KA09NA Floor Standing Mini Split Indoor Units
    • Mitsubishi MFZ-KA12NA Floor Standing Mini Split Indoor Units
    • Mitsubishi SEZ-KD09NA4R1.TH Concealed Duct Mini Split Indoor Units
    • Mitsubishi SEZ-KD12NA4R1.TH Concealed Duct Mini Split Indoor Units
    • Mitsubishi SEZ-KD15NA4R1.TH Concealed Duct Mini Split Indoor Units
    • Mitsubishi SLZ-KA Ceiling Cassette Mini Split Indoor Units
    Product Note

    This product requires two compatible Mitsubishi mini split indoor units and the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.

    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

MXZ-2C20NAHZ
specs product image PID-30752
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
20000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
58 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
29 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
41 7/24 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
215 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
